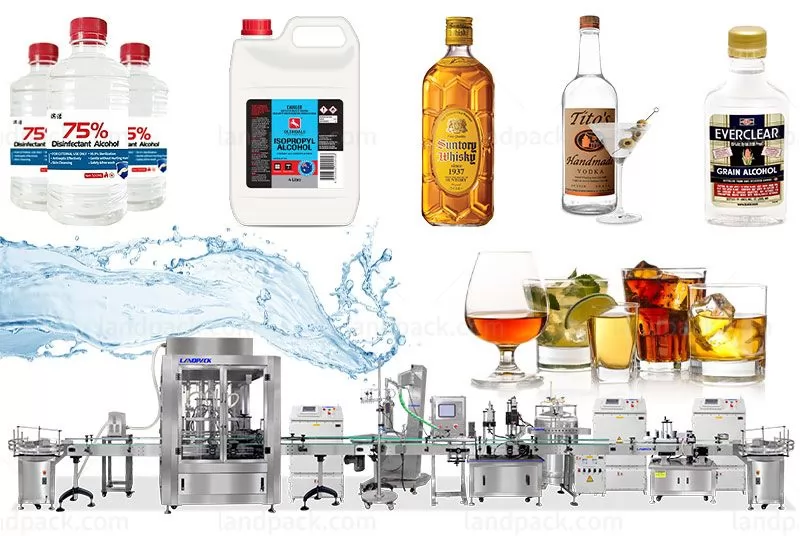

Full Automatic Alcohol Bottle Filling Capping Labeling Line With Explosion Proof Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
This automatic filling line can be customized to fill various products such as alcohol, liquor, cocktails, brandy, vodka, hand sanitizer, mouthwash, oil, liquid detergent, shampoo, sauce, paste, honey, tomato sauce, salad sauce, etc.

Packaging Material:
Glass, Metal, Plastic, Others

packaging sample:liquor bottle filling machine

1. Elegant Appearance, Precise Filling, Convenient Adjustment, Easy Operation: Our liquid filling machine boasts an attractive appearance, precise filling, and user-friendly adjustment features. With easy-to-operate controls, you can fill bottles quickly and efficiently.

2. Accurate Bottle Clamping for Efficient Filling: Each filling head of our liquid filling machine is equipped with a bottle mouth clamping device to ensure accurate alignment and filling. With no bubbles or drips, you can rest assured that your product is being filled precisely.

3. Touch Screen Operation and Visualization: Our liquid filling machine features a touch screen operation and visualization system that allows you to easily adjust settings, monitor production, and view fill volume. You can finish the job quickly and efficiently with a simple, intuitive interface.

4. Easy Maintenance and Cleaning: Our liquid filling machine is designed for easy maintenance and cleaning, with easy-to-reach components and removable parts. Keep your machine looking and working like new with regular cleaning and maintenance.

5. It is suitable for the filling of different specifications. It can change the filling specifications within a few minutes. The replacement of filling specifications can be completed without adding spare parts.

6. Users can choose the filling quantity according to their production capacity and determine the number of filling heads. Each filling head has a bottle clamping device to ensure accurate filling alignment.

ModelLD-GZX-987

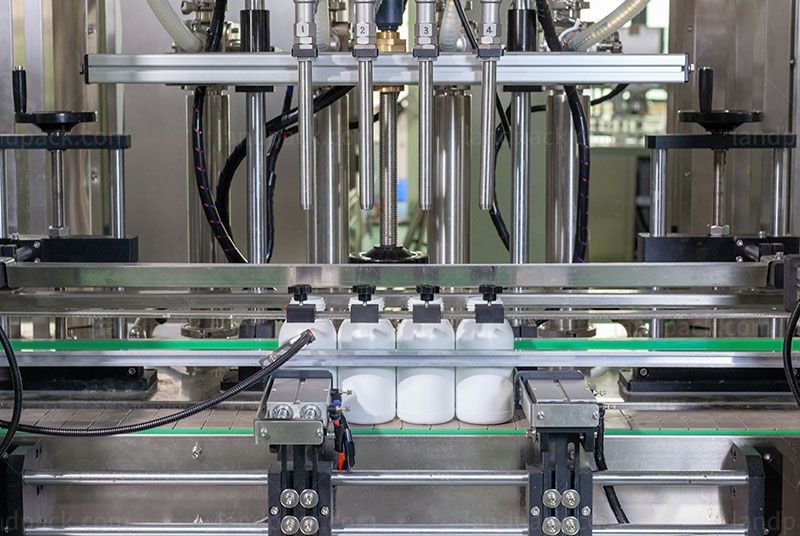

4 Head Self- Flow Filling Machine
Filling heads
4/6/8/10/12, etc
Filling capacity
0.5L-5L
Filling form
Self- flowing multi-headed into the bottom of the bottle
Filling speed
10-32 pcs/min
Power
About 2.2KW/380V/220V three-phase five-wire

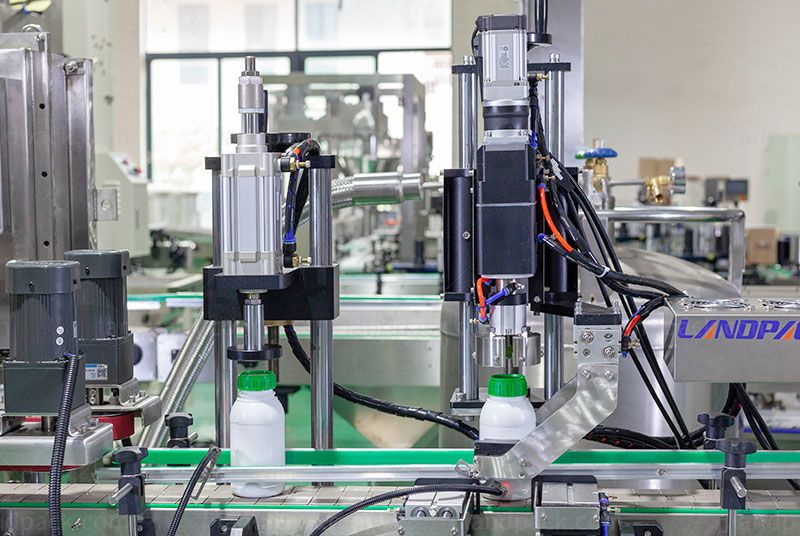

Air Claw Type Capping Machine
Suitable bottles
According to customer's sample
Cover method
Vibrating plate cap
Capping speed
15-32 pcs/min
Program control
PLC + touch screen
Power
800W/220V, single phase

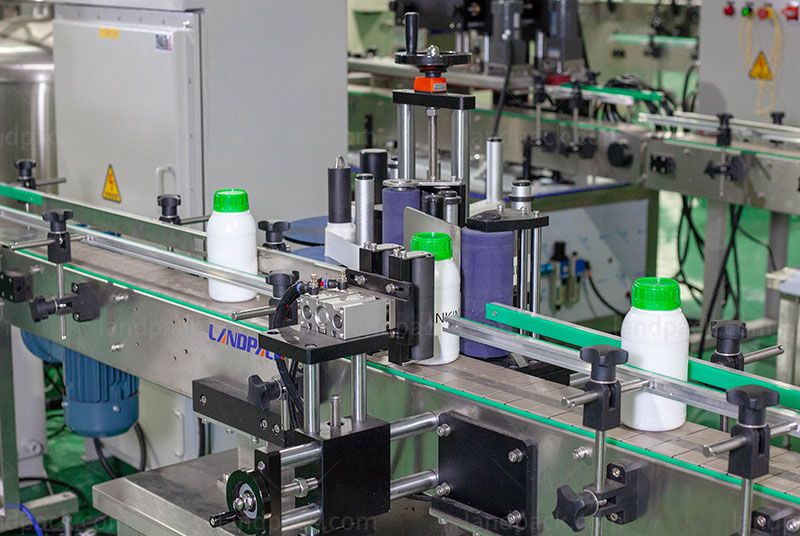

Labeling Machine
Label length
20-200mm
Label bottom width
20-160mm
Labeling speed
50-200 pcs/min
Labeling accuracy
±1mm
Power
1600W/220V
Net weight
2800(L)*1650(W)*1400(H)mm

After receiving your inquiry,We will send you the quotation as soon as possible.
