Application:
Apply to pack bulk grain, slice, short bar material products such as rice, oatmeal, cereal oats, puffy food, popcorn, shrimp chip, salt, sugar, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
Kindly Reminder
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Can pack up to 10kg, strong compatibility.
2. Electronic scale measurement with high accuracy.
3. Single station filling and sealing, cost-effective.

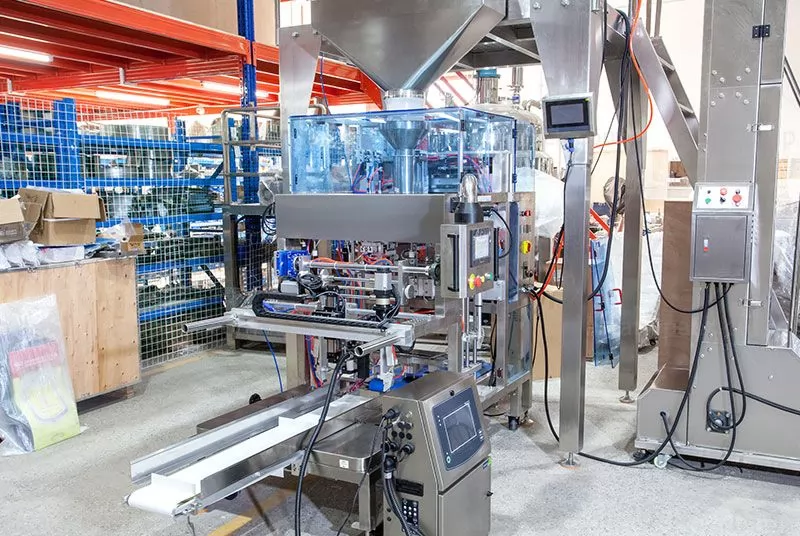

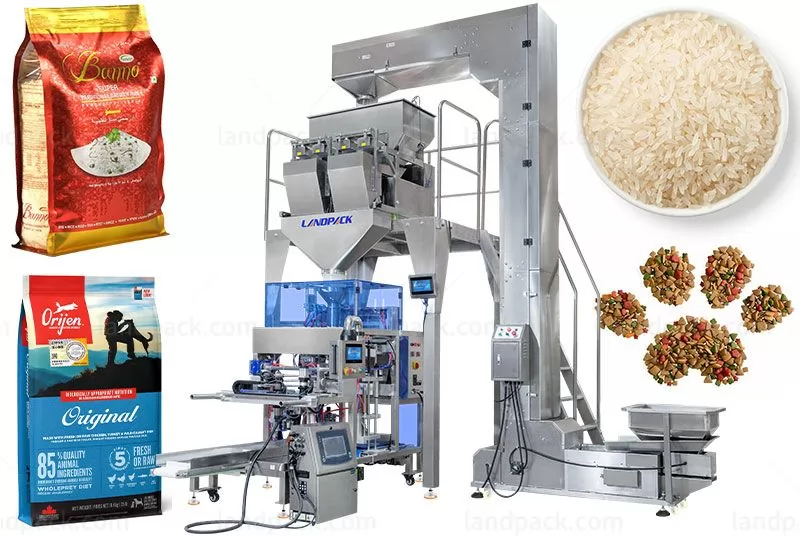

Work Flow:
1. Z-type feeding conveyor to feed the products.
2. 2 heads linear weigher.
3. Automatic premade pouch feeding.
4. Automatic inkjet date printing.

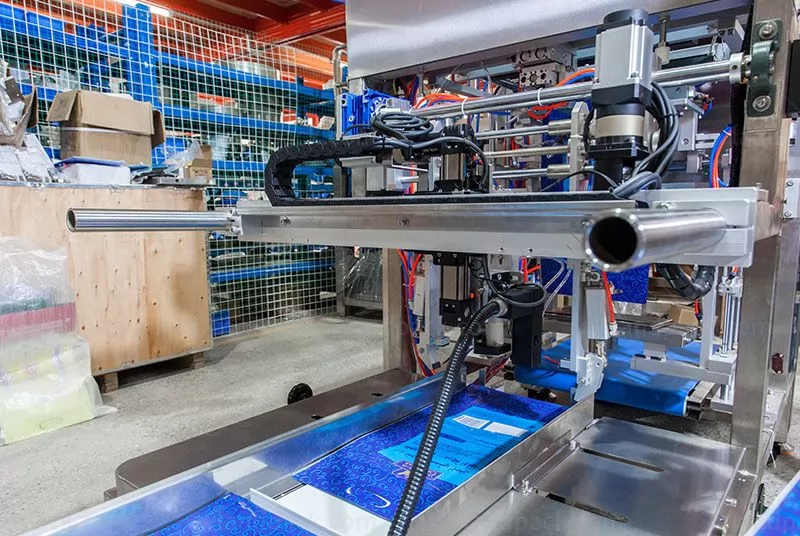

5. Automatic pick up pouches.
6. Automatic opening pouches.
7. Automatic weighing filling material into pouches.
8. Automatic heat sealing pouches-finished products.
Model | LG1-600AS |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
Bag Type | 3 Side Seal Bag, Stand-up Bag |
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
Size Range | 80mm≤W≤300mm 100mm≤L≤430mm |
Speed | 0-15bags/min |
Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) |
Sealing Width | 10mm (5--20mm can be customized) |
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
Air Pressure | 0.65Mpa |
Air Consumption | 0.3m³/min (Standard machine, no additional function) |
Body Dimension | 1770*600*1360mm |
Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
After receiving your inquiry,We will send you the quotation as soon as possible.
