Application:
Apply to pack bulk grain, slice, short bar material products such as rice, oatmeal, cereal oats, puffy food, popcorn, shrimp chip, salt, sugar, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
Kindly Reminder
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

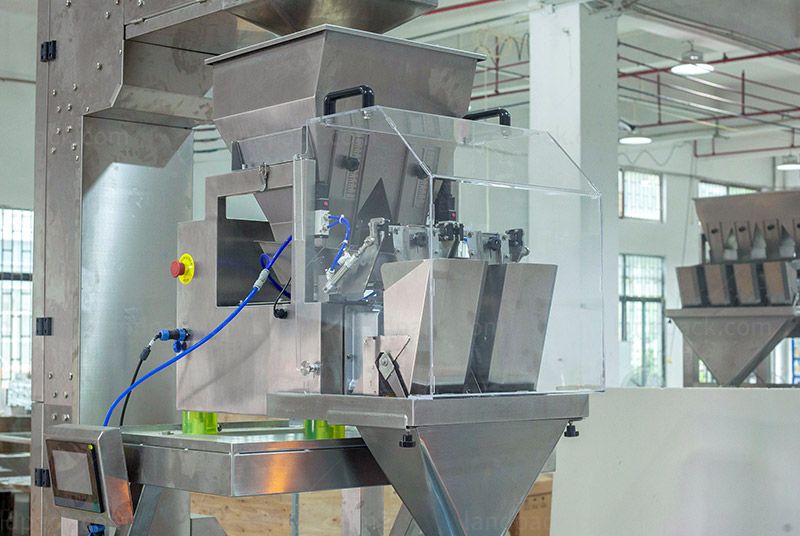

1. Electric Scales Weighing: Provides stable and highly accurate product filling.
2. Compact Design: Easy to operate and maintain.
Work Flow:
1. Auto feeding the doypack.
2. Auto weighing and filling by the electric scales.
3. Heat sealing and output.
Model | LDB-300 | LDB-430 | LDB-600 |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) | ||
Size Range | 80mm≤W≤300mm, 100mm≤L≤300mm | 80mm≤W≤300mm, 100mm≤L≤430mm | 250mm≤W≤500mm, 380mm≤L≤600mm |
Speed | 0-15 bags/min | 0-10 bags/min | |
Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) | ||
Sealing Width | 10mm (5-20mm can be customized) | ||
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW | ||
Air Pressure | 0.65 Mpa | ||
Air Consumption | 0.3m³/min (Standard machine, no additional function) | ||
Body Dimension | 1770*600*1230mm | 1677*1140*1450mm | |
| Machine Weight | 300 kg | 350 kg | 450 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
