Application:
Apply to pack bulk grain, slice, short bar material products such as oatmeal, cereal oats, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.
Kindly Reminder
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The machine is multi-function, matching with the adjustable weigher.
2. Mesure at high accuracy: The weigher weight of the material.
3. Double servo, fast packaging speed.
Work Flow:
1. Z-type material conveyor with compact design.

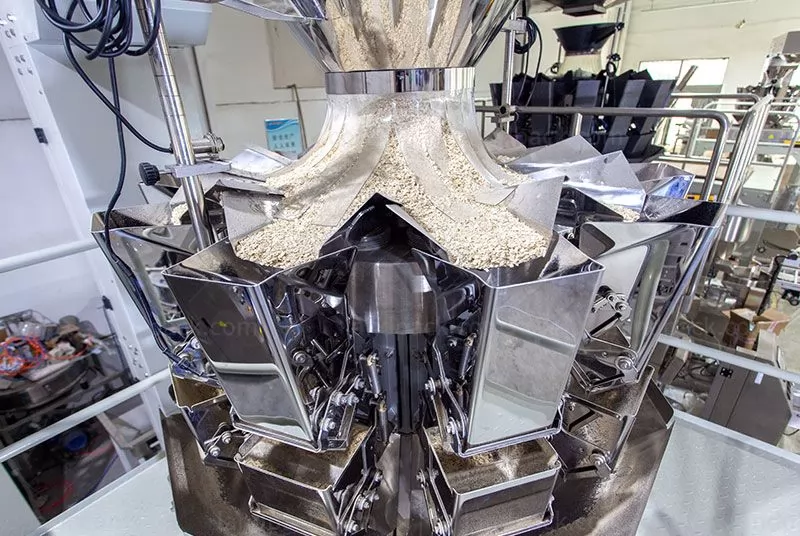

2. 10 heads weigher with high weighing accuracy.

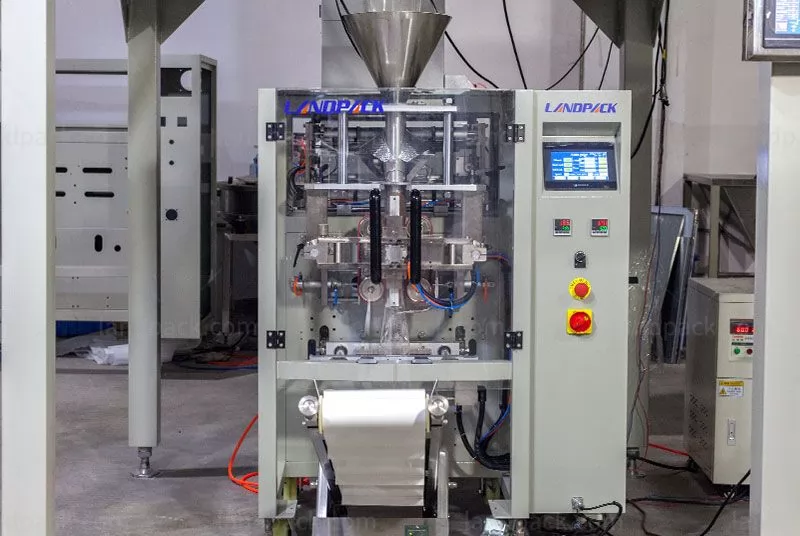

3. Vertical packing machine with dual servo motor to increase speed.

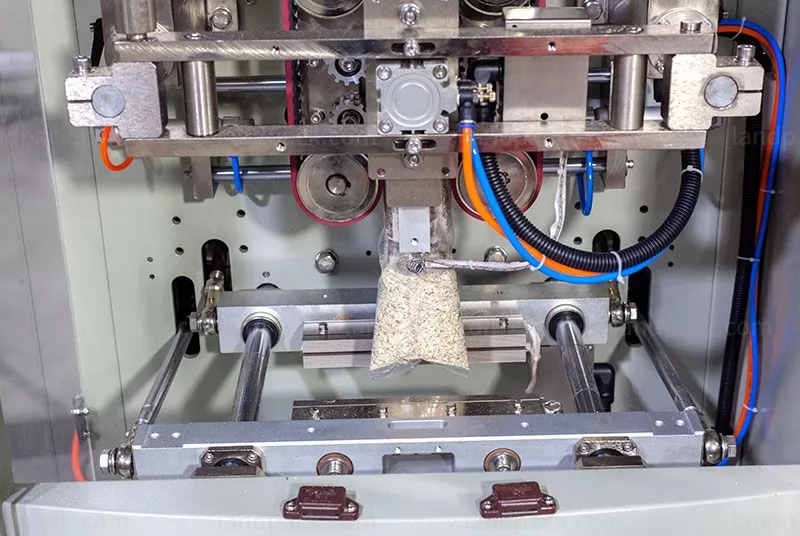

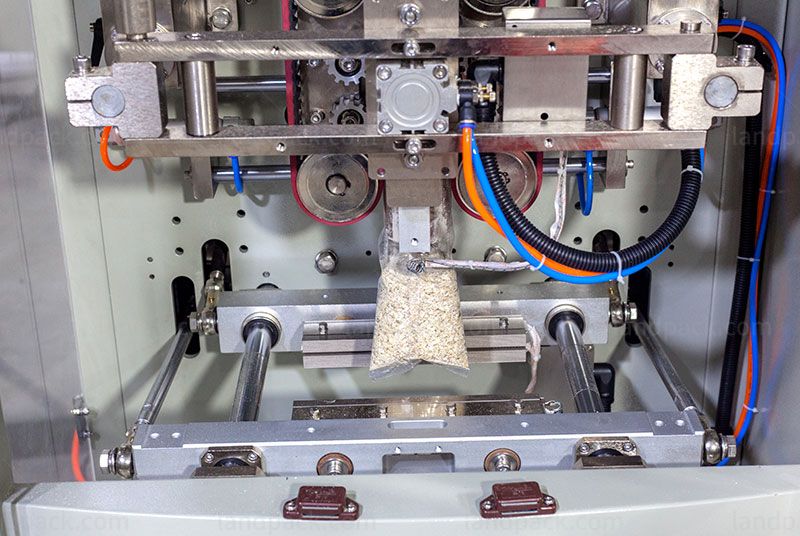

4. Form and seal the bag.
5. Output the finished product.
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 2kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 4.5kw |
Machine size(LxWxH) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 650kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
