Application:

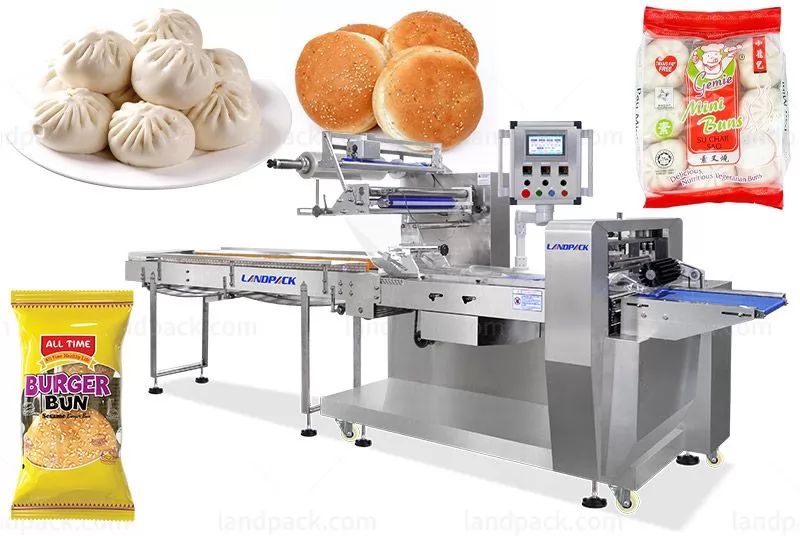

This flow wrapper is suitable for pillow packing of conventional items such as bun, hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, cheesecake, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Adjustable Bag Former,The bag width is adjustable, suitable for different sizes bread.;
2. Roll wheel conveyor,The ball is to reduce the friction resistance of the movable panel to the product, prevent the material level is not allowed and prevent the damage to the buns.

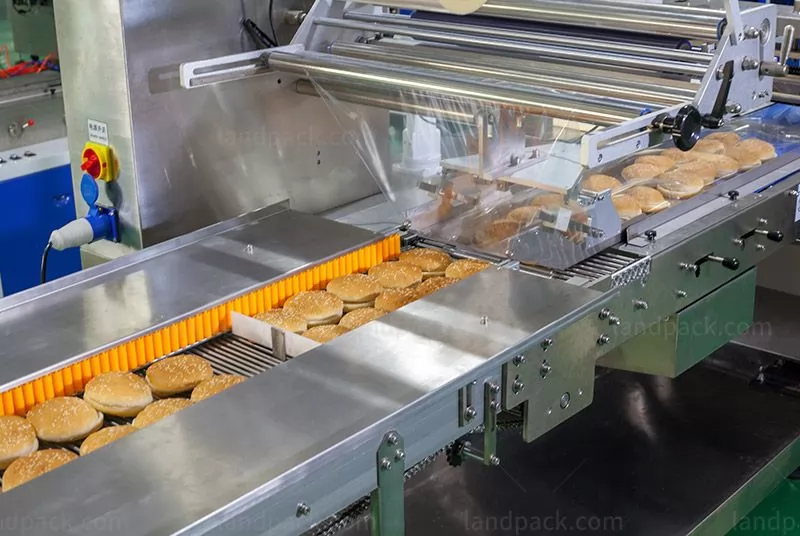

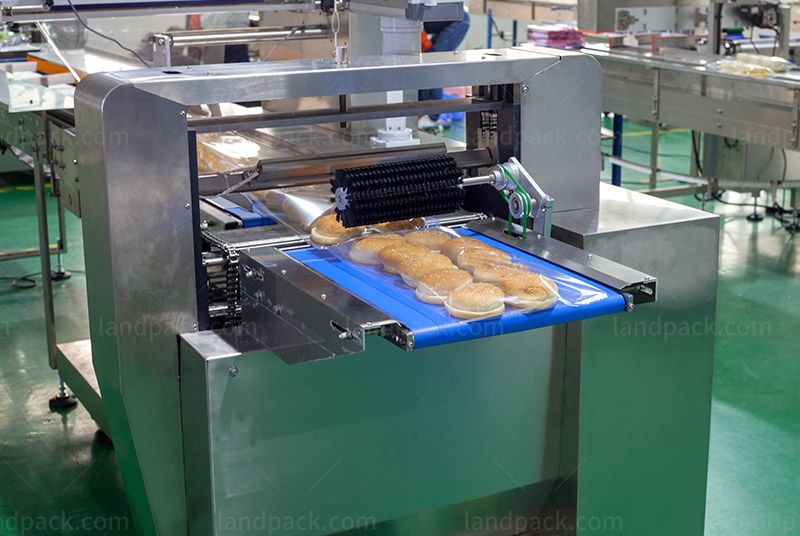

3. Net chain conveyor,The traditional belt feed tail will accelerate the aging after the buns are packed with temperature. A long time will lead to unstable operation and inability to cut the bag accurately.
4. While the steel net tail won't be aging, that would avoid slipping.
Type | LP-600 | LP-800B |
Film width | Max 600mm | Max780mm |
Bag length | 150-520mm | 210-650mm |
Bag width | 100-240mm | 120-350mm |
Product height | Max.110mm | Max.130mm |
Film roll diameter | Max.320mm | Max.320mm |
Packaging rate | 30-150bag/min | 30-150 bags/min |
Power | 220V50/60Hz 6KW | 220V50/60Hz 6KW |
Machine size | (L)4800*(W)1200*(H)1700mm | (L)4800*(W)1200*(H)1700mm |
Machine quality | 1120KG | 1150kg |
Film material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP/ Aluminum Coating Film/ Aluminum Film |
After receiving your inquiry,We will send you the quotation as soon as possible.
