Application:
Application: Suitable for weighing and packaging all kinds of granules materials, such as cannabis, marijuana,Dried chrysanthemums, beans, nuts, pet food, etc.
Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

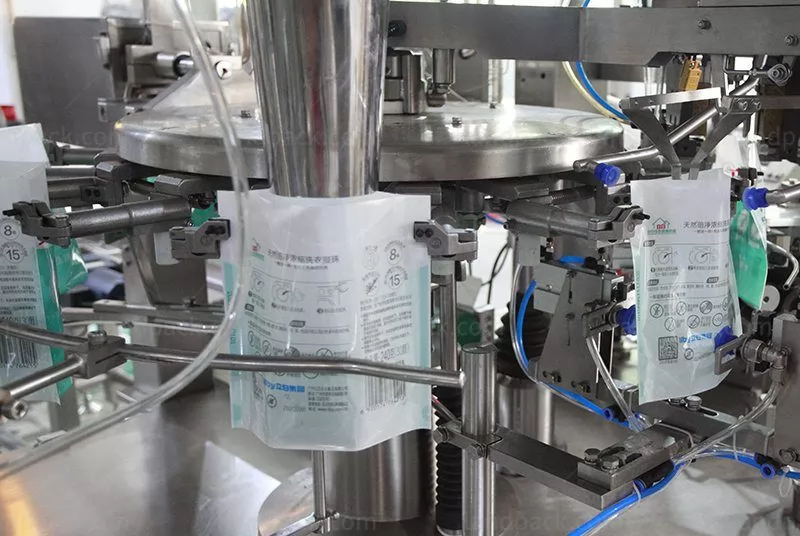

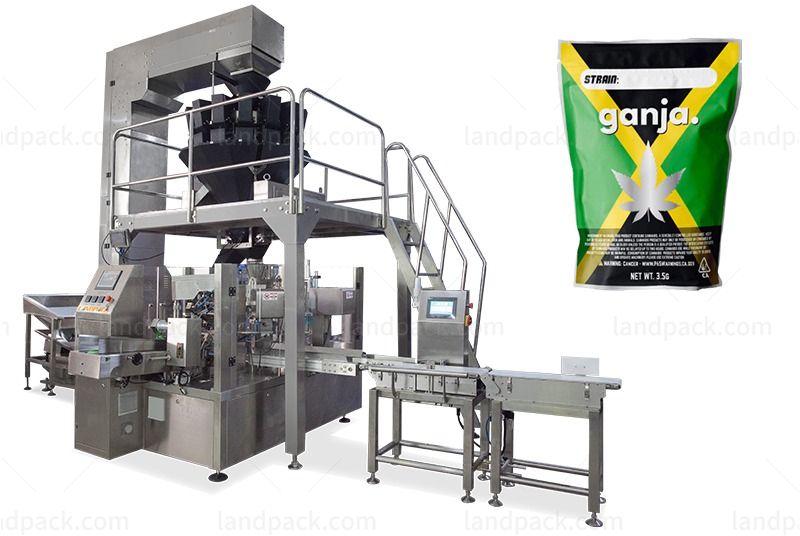

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

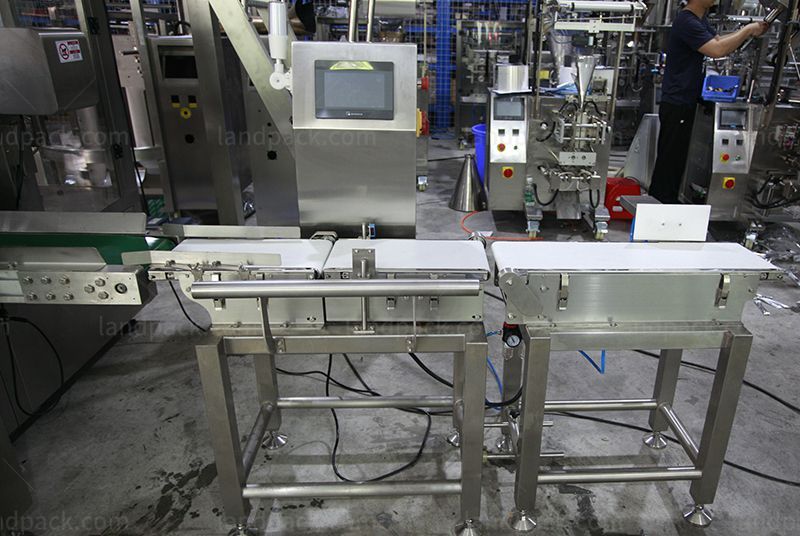

Automatic checking system can check bag situation, filling and sealing situation.
The system shows:
1.no bag feeding, no filling and no sealing.
2.no bag opening/opening error, no filling and no sealing
3.no filling, no sealing..
The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
| Model | LD-8200/LD-8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
