Application:
Suitable for the weighing and packaging of various granular products, such as cannabis, marijuana, dried chrysanthemums, seasoning, pesticides, chemicals, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging samples:

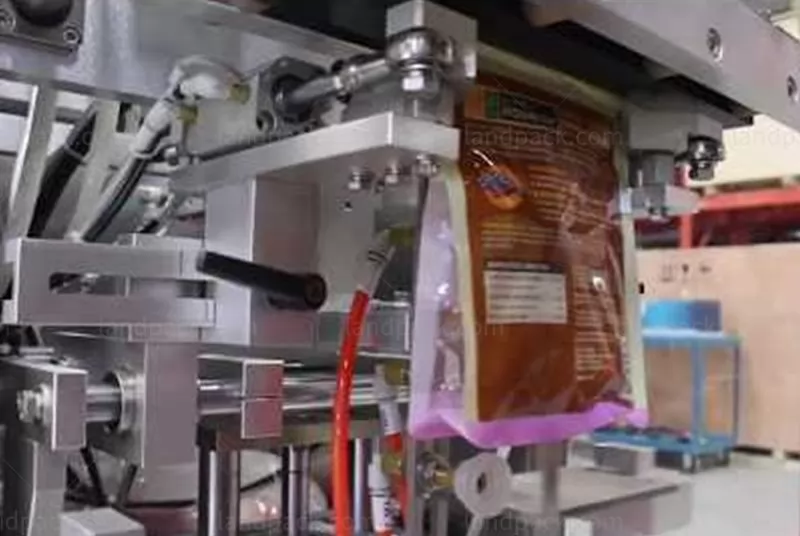

1. Automatically check pouch open status, it will not fill and seal when pouch is not opened fully. It avoids the wasting of pouch
and raw material and save cost.
2. Machine working speed can be adjusted continuously with frequency converter
3. SIEMENS PLC adopted, the control system is easy to operated with friendly HMI interface.
4. Machine can work with pouch width range from70-150mm, 100-200mm, 200-300mm by adjusting the width of clips.
5. Adopting advanced bearing, where no need to add oil and less pollution for product.
6. All the product and pouch contact parts are made with stainless steel or the material according with the food hygienic
requirements, guarantee hygiene and security of the food.
7. With pre-made pouch, the pattern and sealing on the pouch is perfect. The finished product looks advanced.

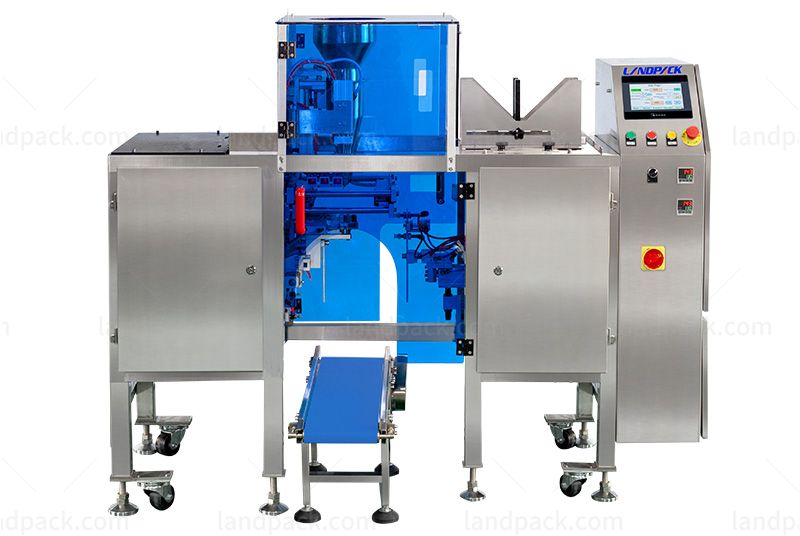

Brief Introduction:
This automatic filling production line is suitable for filling and filling various granular and solid materials. It is called linear metering method with high precision. It forms an automated production line with capping machine, aluminum foil sealing machine, and labeling machine. The production line has stable operation, low noise, simple operation, wide adaptability and meets GMP certification requirements.
Parameters：
Model | SG-180Z |
Pouch Size | 60mm*80mm(Min.) 180mm*320mm(Max.) |
Packaging Speed | 30-60ppm |
Power | 1.6kw |
Air Consumption | 200NL/min |
Machine Dimensions | 1900mm(L) * 970mm(W) *1390mm(H) |
Weight | 700kg |
Function | Flat Pouch, Doy Pack, Zipper |
After receiving your inquiry,We will send you the quotation as soon as possible.
