Application :

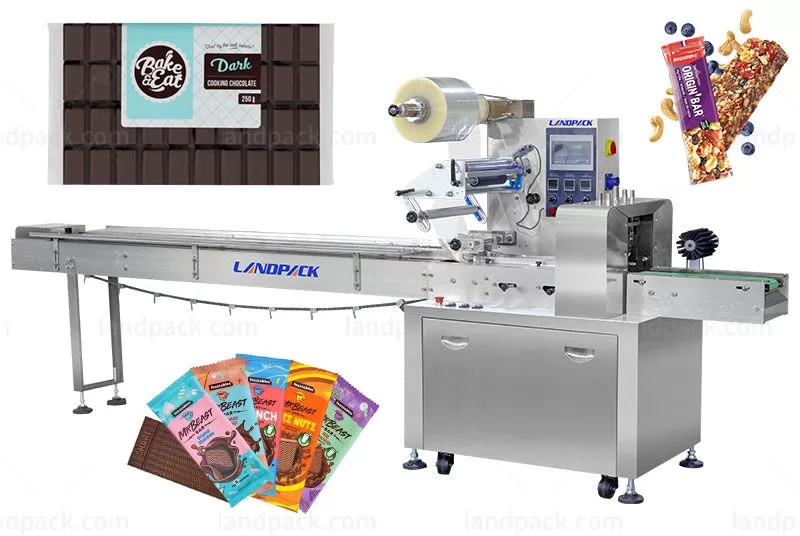

Enhance your production process with our Chocolate Packing Machine, designed for efficient packaging of milk, dark, hazelnut, and coffee chocolate. Suitable for chocolates of various shapes and sizes, it ensures precision, consistency, and high efficiency.
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :
1. Full SS304 Machine Frame: Ensures food safety and hygiene, offering durability and reliability.
2. Advanced Control System: Equipped with a PLC controller and servo-driven system for intelligent and efficient operation.

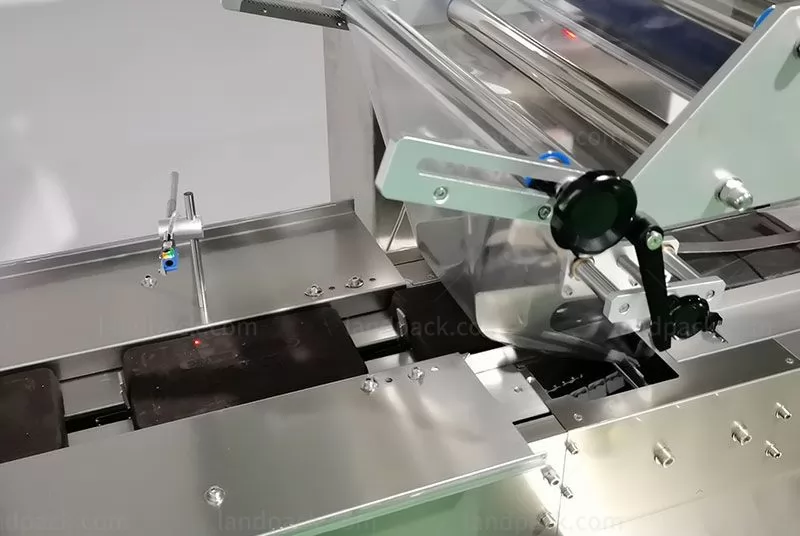

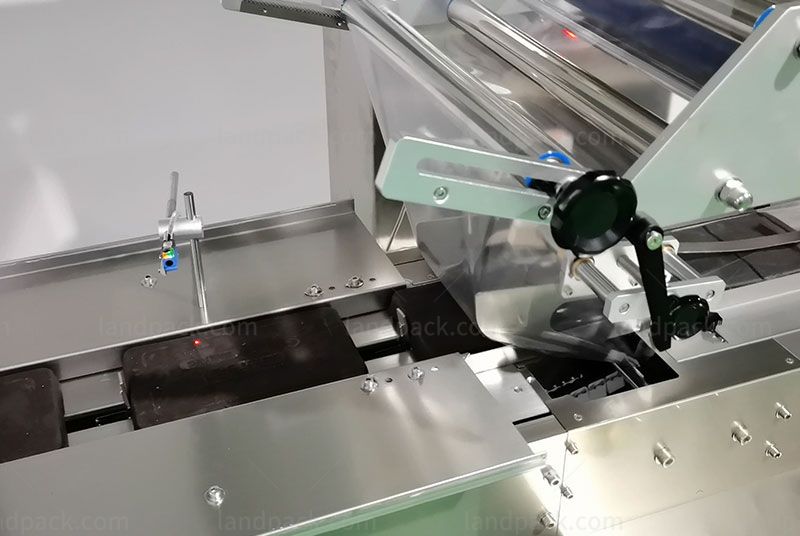

3. Automatic Detection: Sensor detects chocolate bars; no material means no film is used, reducing film material waste and saving costs.
4. Stable Bag Formation: Forms bags through film rolls with precise sealing and cutting for consistent and stable performance.
5. Efficient Packing Speed: Capable of packing at a speed of 40-80 bags per minute, meeting high production demands.
Workflow:
1. Feeding by hand
2. Pusher Conveyor Lifting
3. Forming
4. End Sealing and Cutting
| Model | LP-450B |
| Production capacity | 40-180 bags/min |
| Diameter of the film roll | maximum 320mm |
| Packaging film width | the widest 450mm |
| Outer bag size | the longest 330mm widest 160mm product packaging thickness Max.45mm |
| Air pressure | 0.5-0.7Mpa |
| Machine noise | less than 80db(A) decibel |
| Power | 220V, 50 Hz, 2.6kw |
| Weight | 590kg |
| Size | 4030mm*770mm*1420mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
