Application :

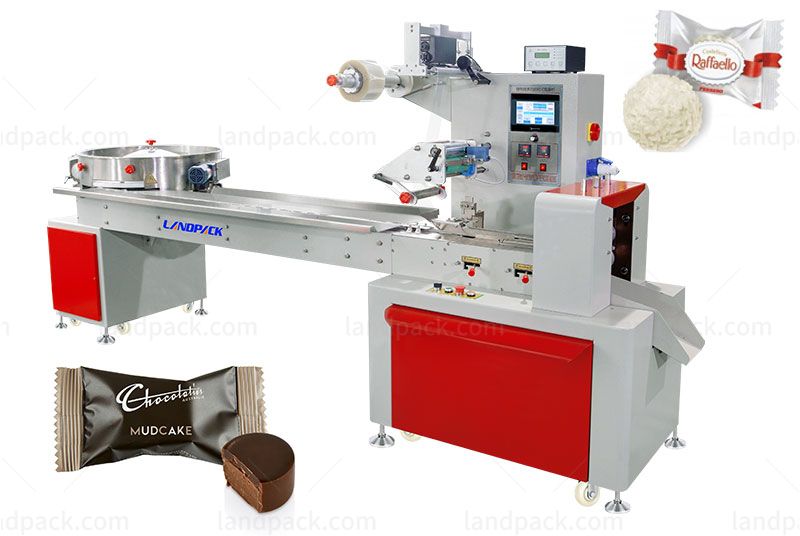

This machine is designed for packing fixed shaped materials into pillow packages, suitable for packing all kinds of regular shaped solid products, including foodstuff, such as chocolate, breads, moon cakes, candies etc, commodities, industrial parts etc.
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :
1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. Human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
| Model | LP-250B |
| Production capacity | 40-180 bags/min |
| Diameter of the film roll | maximum 200mm |
| Packaging film width | the widest 250mm |
| Outer bag size | the longest 330mm widest 160mm product packaging thickness Max.45mm |
| Air pressure | 0.5-0.7Mpa |
| Machine noise | less than 80db(A) decibel |
| Power | 220V, 50 Hz, 2.6kw |
| Weight | 590kg |
| Size | 4030mm*770mm*1420mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
