Application:
Suitable for packing most kinds of granule material such as coffee beans, detergent capsules, pet food, snacks, nuts, dry fruit, frozen food, candy, oats, popcorn, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

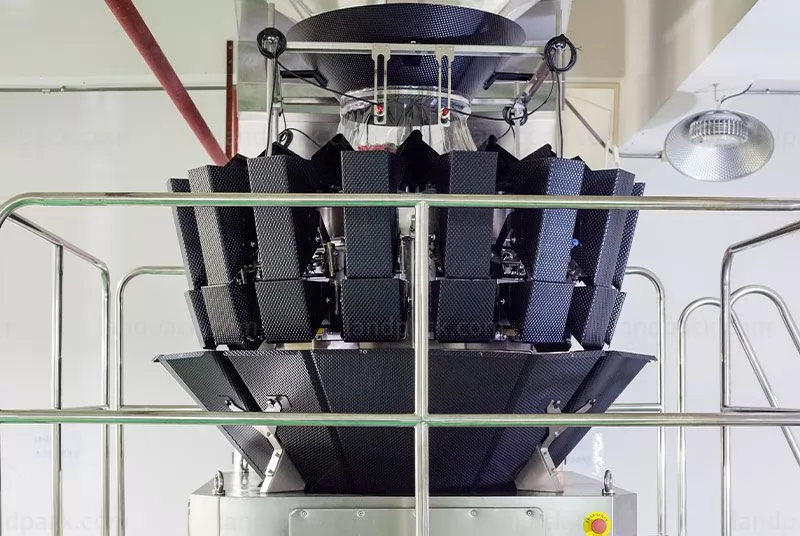

1. 16-head mixture weigher, two kinds of product mix in weigher, to measure and count separately.

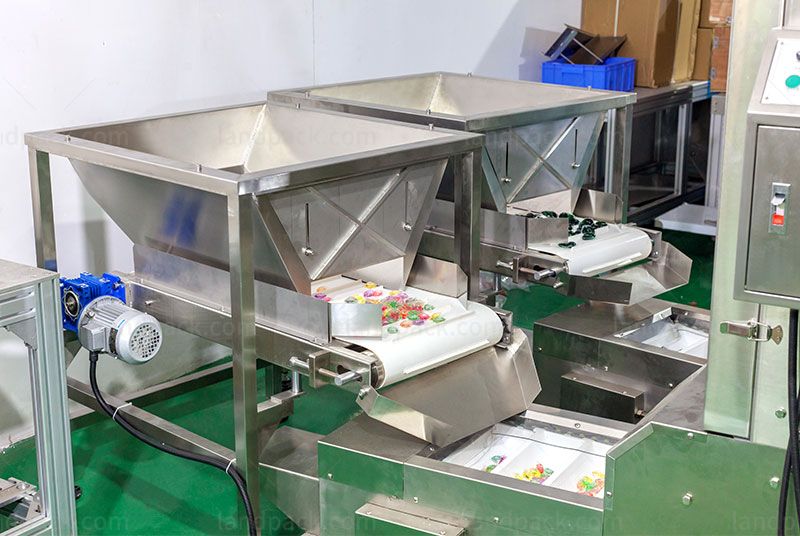

2. Two Z-elevators, deliver different materials.
3. Weigher with dimple and Teflon surface, to avoid the sticky on plate surface.
Work Flow:
1. Intelligent control screen, one-click start.
2. Z-elevator delivers different materials separately.
3. Measure their weight separately and mix them.
4. Take the bags.
5. Open the bags.
6. Filling.
7. Sealing.
Model | LDB-300A |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
Bag Type | 3 Side Seal Bag, Stand-up Bag |
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
Size Range | 80mm≤W≤300mm 100mm≤L≤300mm |
Speed | 0-15bags/min |
Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) |
Sealing Width | 10mm (5-20mm can be customized) |
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
Air Pressure | 0.65Mpa |
Air Consumption | 0.3m³/min (Standard machine, no additional function) |
Body Dimension | 1770*600*1260mm |
Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
After receiving your inquiry,We will send you the quotation as soon as possible.
