Application:
Suitable for packing granule material such as coffee beans, candy, frozen food, dog food, nuts, dry fruit, cat litter, cat food, fish food, etc.
Kindly Reminder
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Suits for 1kg to 4kg grains large packing such as coffee beans, chickpeas and dried nuts.
2. The machine could use the roll film to form the quad seal pouch and gusseted bags automatically.

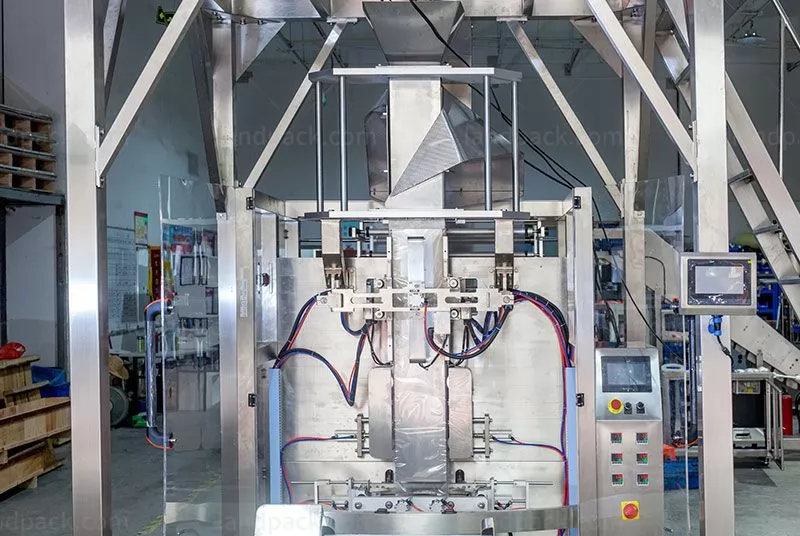

3. The whole set of machine is very easy for you to operate, it is controlled by the touch screen and PLC system , The bag length could be changed on touch screen easily.

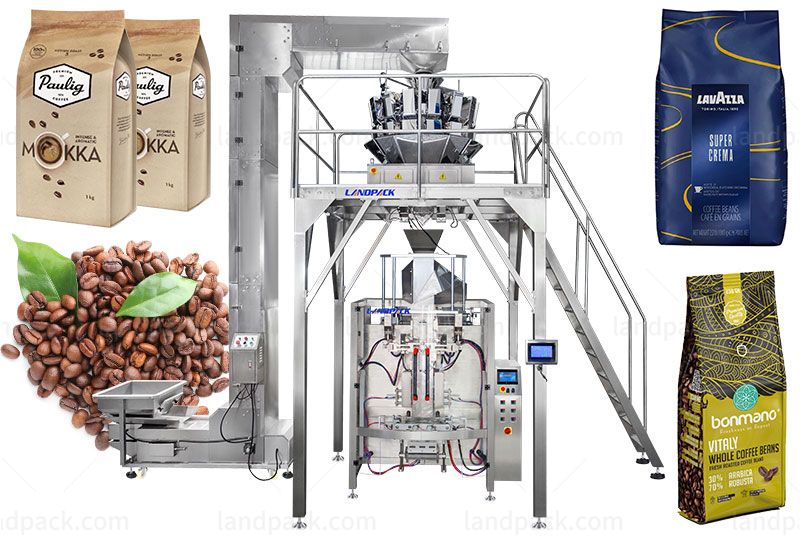

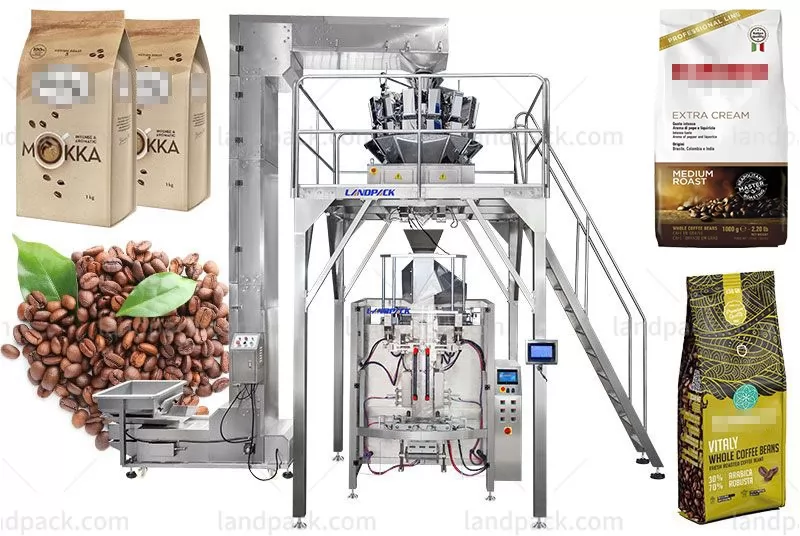

Work Flow:
1. Transport the beans by Z type conveyor

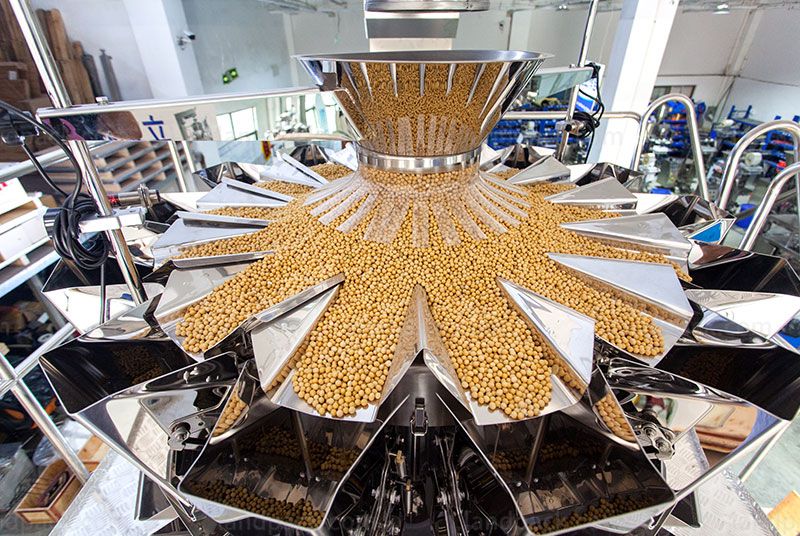

2. Measure the beans by 14 heads weigher
3. Pulling the packing film by servo motor

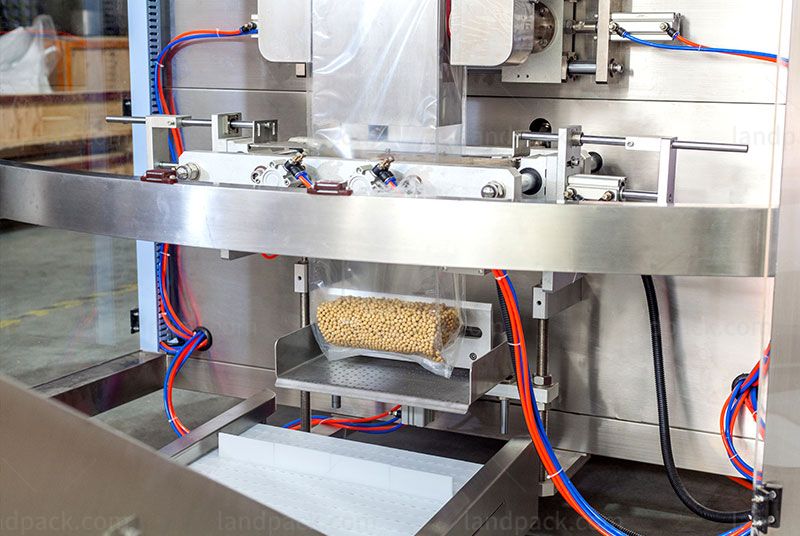

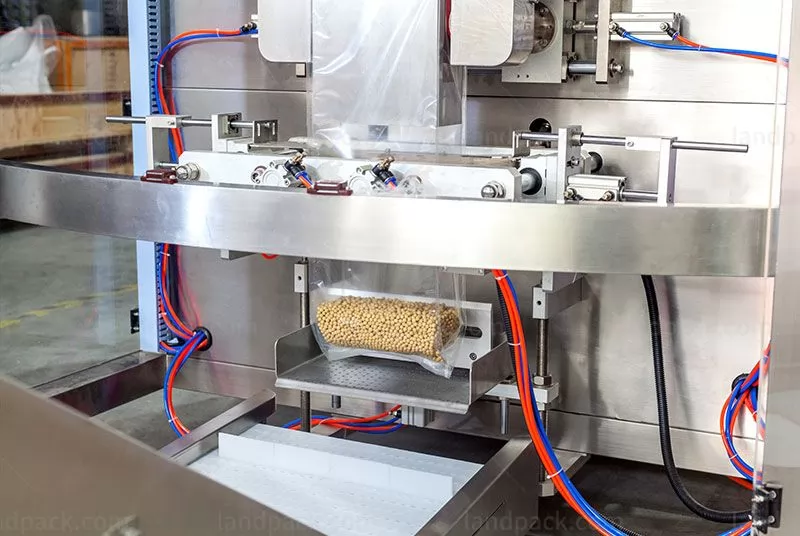

4. Gusseted bag forming device
5. Output the finished products by conveyor
Model | LD-420 | LD-520 | LD-620 | LD-720 |
Film width | Max.420mm | Max.520mm | 150-Max.620mm | 150-Max.720mm |
Bag length | 80-300mm | 60-400mm | 60-450mm | 60-500mm |
Bag width | 60-200mm | 100-250mm | 65-300mm | 65-350mm |
Film roll diameter | Max.600mm | Max.600mm | Max.600mm | Max.600mm |
Packaging rate | 5-60 bags/min | 5-40 bags/min | 5-35 bags/min | 5-30 bags/min |
Range of measurement | 1000ml | 2000ml | 3000ml | 5000ml |
Film thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3.2kw | 220V, 50/60Hz, 3.5kw |
Machine size(LxWxH) | 1217*1015*1343mm | 1488*1080*1490mm | 1488*1180*1550mm | 1780*1350*2050mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
