Application:
It is suitable for automatic packing for grain and solid food, such as coffee beans, beans, nuts, dry fruits, candy, cereal, chocolate, biscuits, peanuts, capsules, seeds, chemicals, sugar, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

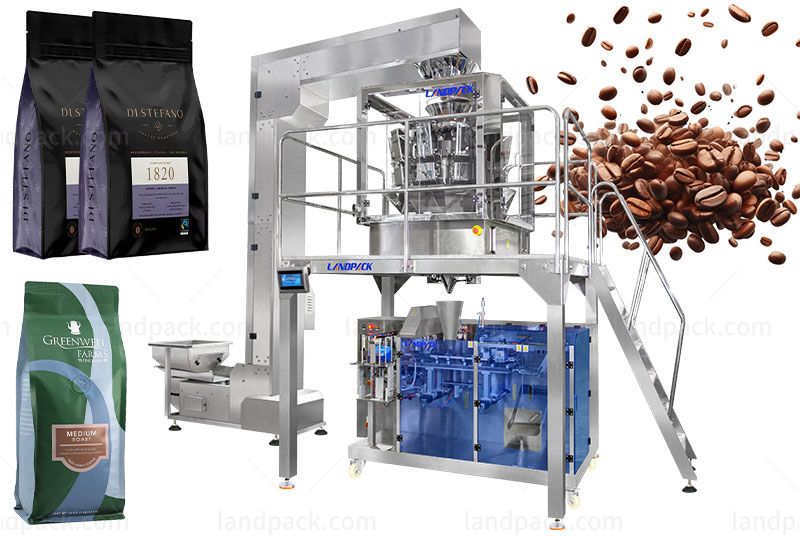

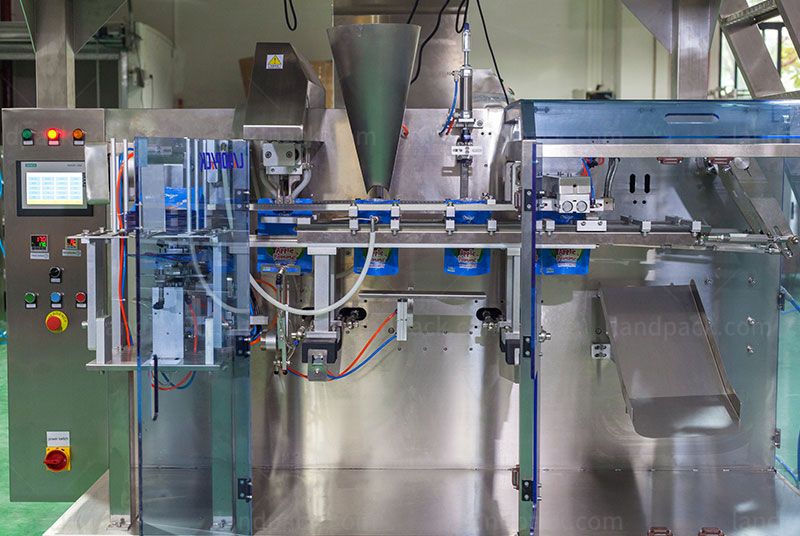

1. Horizontal doypack machine with fast speed but compact design

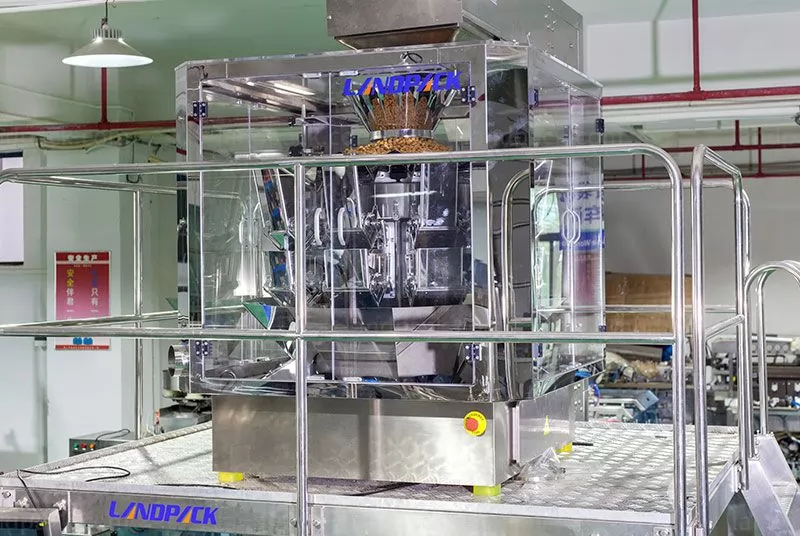

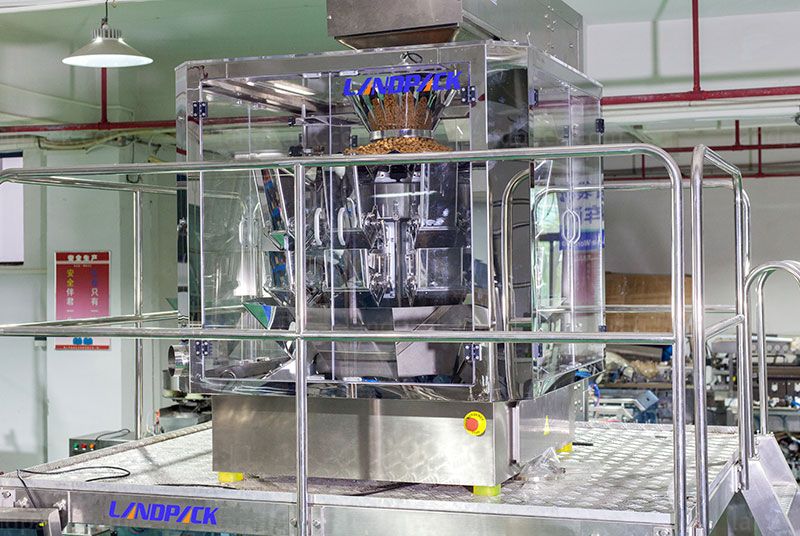

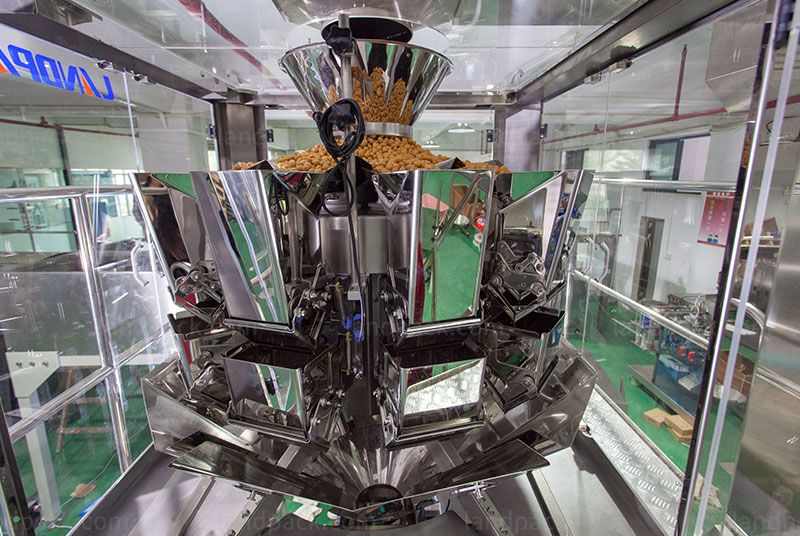

2. 10 heads weigher with high weighing precision and anti-dust enclosure
3. Vertical bag Magazine station
4. Ribbon coding
5. Timing hopper to increase the weighing speed
6. Vibrator plate
7. Reliable quality electrical component
Workflow:
1. Z type elevator
2. 10 heads weigher with high weighing precision and anti-dust enclosure
3. Vertical bag Magazine station
4. Ribbon coding
5. Opening zipper and bag fully
6. Automatic filling
7. Sealing-Output
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
| Bag Size | 110-230mm*80-160mm (L*W) | 70-100mm*110-230 (L*W) | 100-210mm/110-320mm (L*W) | 100-260mm/110-320mm (L*W) |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min(speed is determined by the product filling quantity) | 25-50 bags/min(speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
