Application:

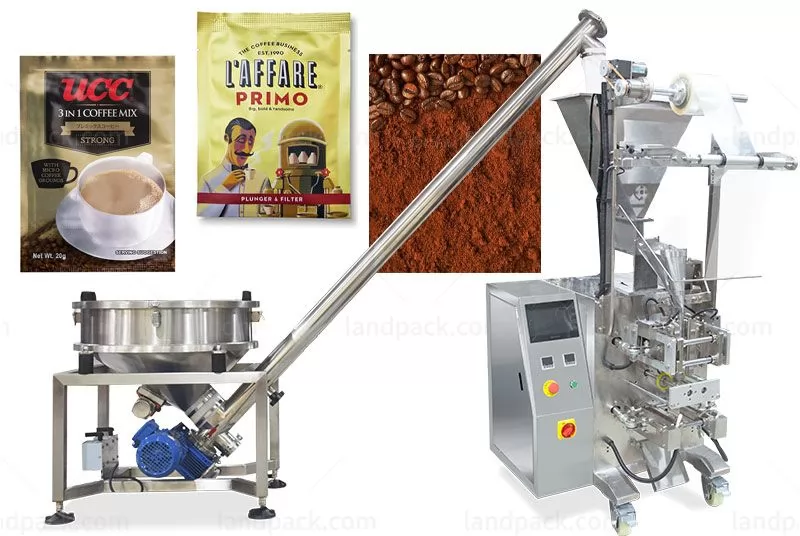

Suitable For 4 Side Sealing Packing All Kinds Of Powder, Which Such As Coffee powder, Milk Powder, Spices, Curry Powder, Flour, Starch, Sugar Powder, Wheat Flour, Detergent Powder Chemical And Medical Powder And So On Packaging.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Products dosing, Filling, Laminate heat sealable pouch making and sealing.
Stainless steel 304 structure and surface.
Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting.

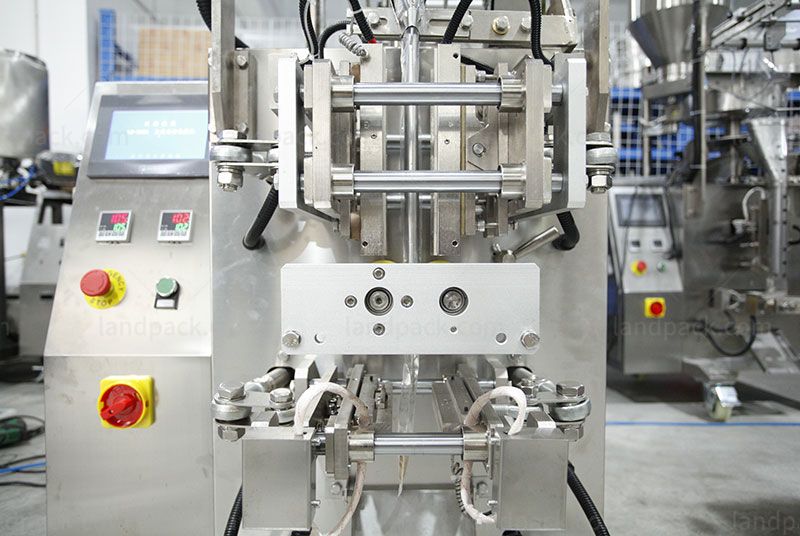

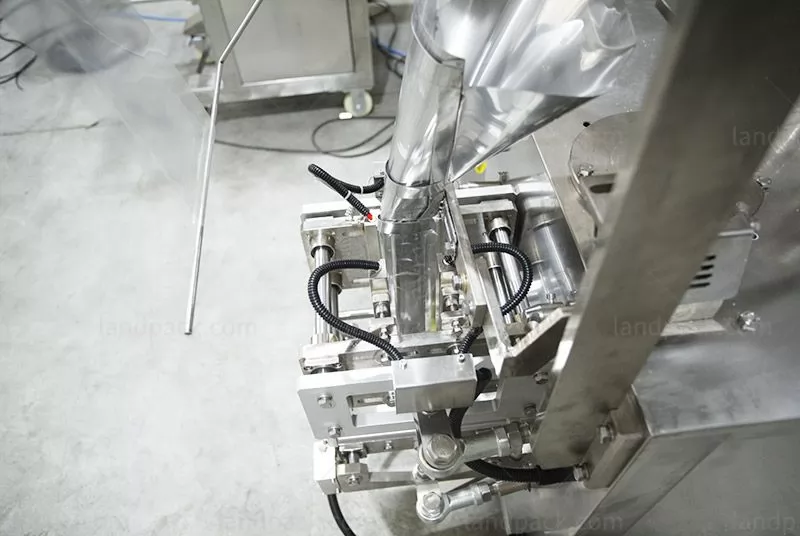

Simple changing of pouch former, to adapt different pouch size requirement.
Intelligent temperature controlling configuration, ensure the artistic and neat sealing.

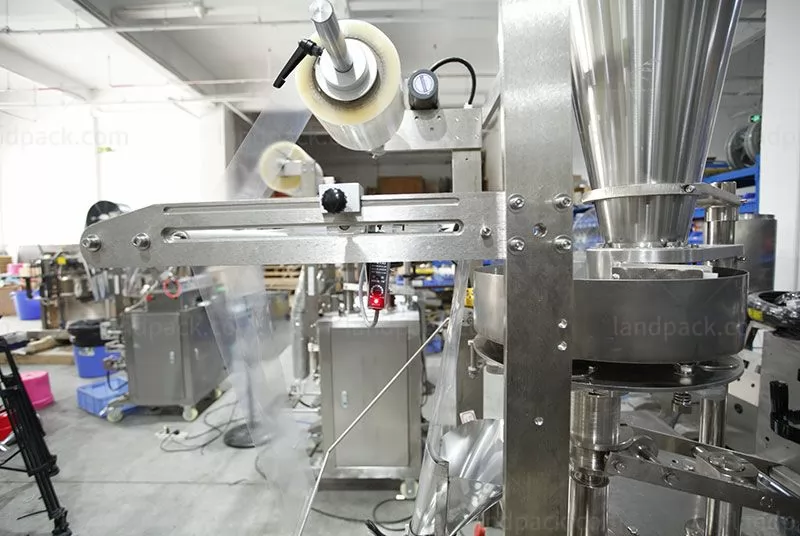

Configure with packaging film pre-pulling device, to enable stable pouch making
Easy to change the packaging film
| Type | LD-320A-4 | LD-380A-4 |
| Film Width | 120-320mm | 180-380mm |
| Bag Length | 50-200mm | 60-280mm |
| Bag Width | 50-150mm | 60-180mm |
| Range of Measurement | 50-500ml | 50-570ml |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Packaging Rate | 35-70bag/min | 35-70bag/min |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine Size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine Quality | 300KG | 450KG |
| Optional device | 1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device | |
After receiving your inquiry,We will send you the quotation as soon as possible.
