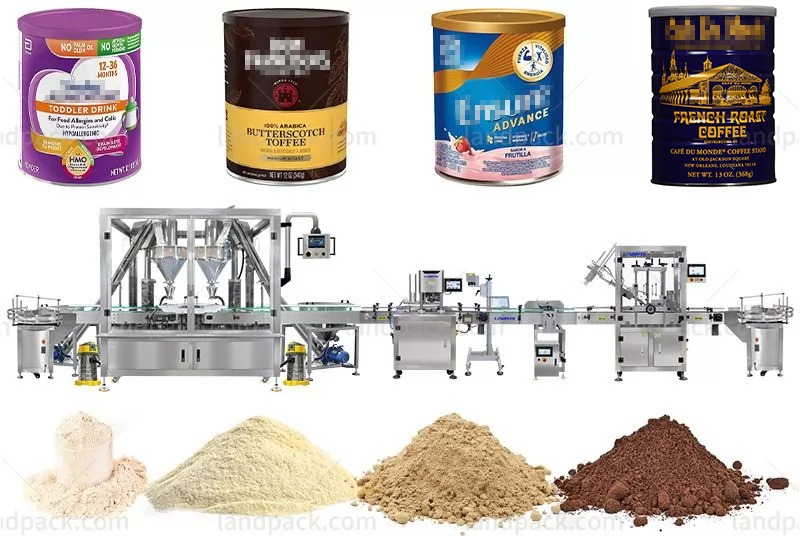

Application:
This powder filling line is suitable for coffee powder, milk powder, protein powder, health powder, medical powder, nutrition powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, solid medicament, powdery additive, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Features:
1. Double Auger Screw Measuring Turntable: Handles high production capacity of up to 40-50 bpm.
2. Fully Automatic Filling Machine Line: Compatible with various can or jar capacities.
3. PLC and Servo Motor Control: Provides high precision and speed.
4. Photoelectric Sensor: Detects can present; no can mean no filling, sealing, or capping.

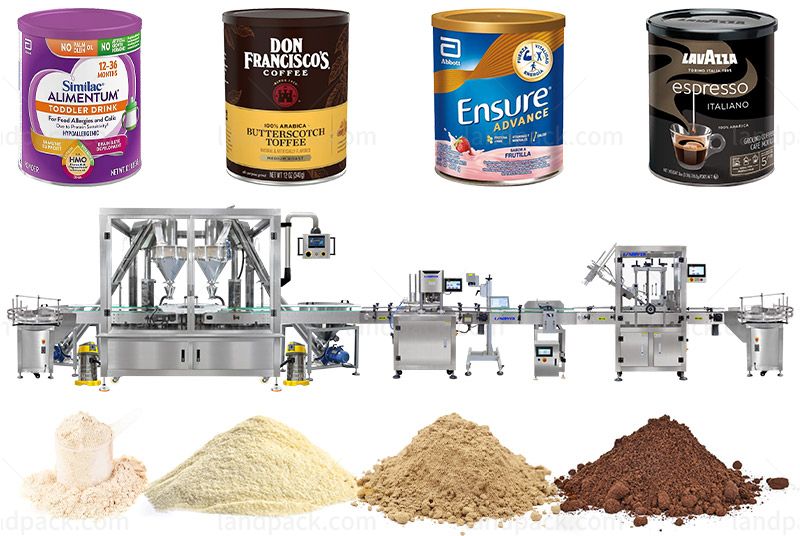

Workflow:
1. Bottle unscrambler
2. Auger screws conveying feeder

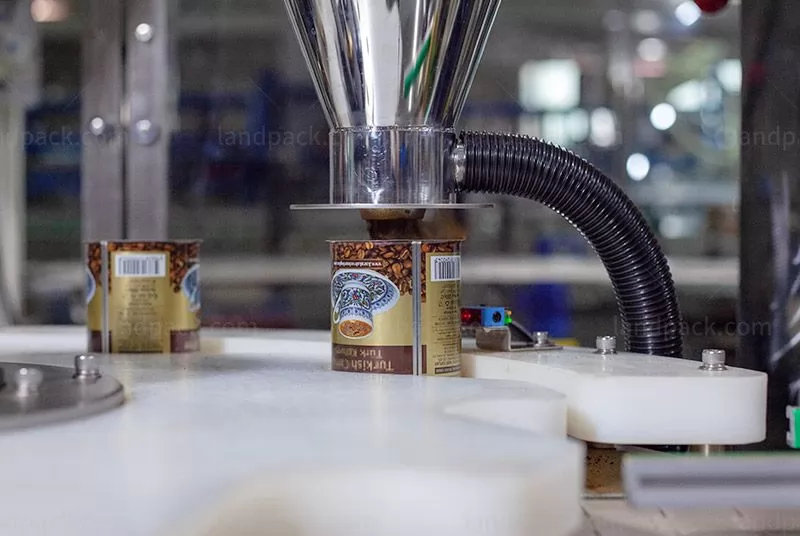

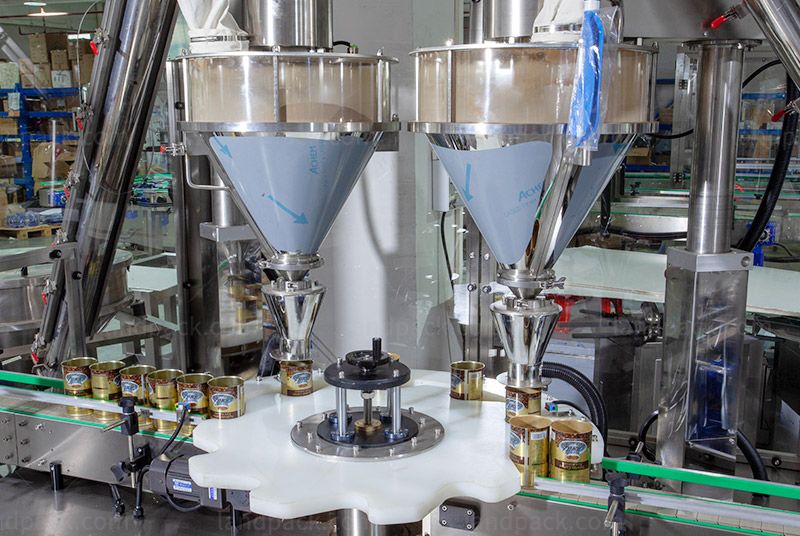

3. Double auger screws measuring turntable filling device
4. Vacuum dust cleaner

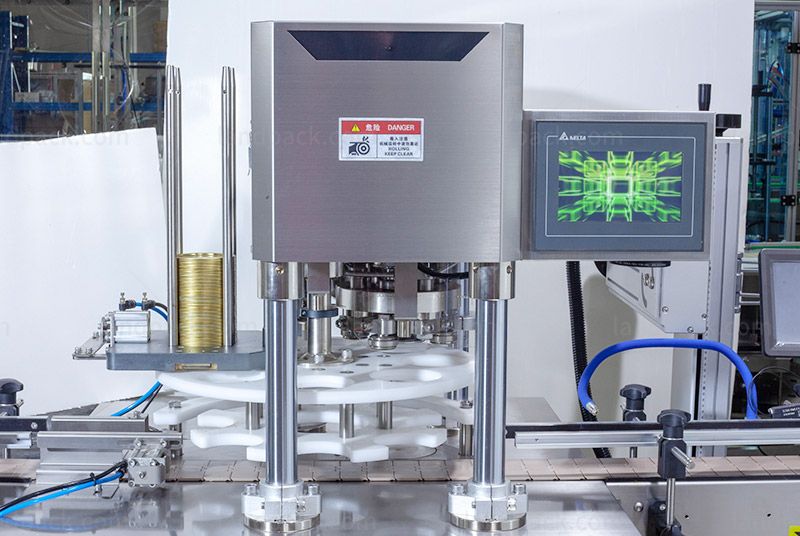

5. Can sealing machine
6. Laser printer, exact date printing
7. Reverse turn mechanism
8. Cap dispensing pressing machine
9. Collection turntable
| Automatic Powder Screw Filling | |
Model | LD-PAF880 |
Power Supply | 220V/110V, 50-60Hz, 200W |
| Turntable Diameter | 800mm (Could be customized) |
Suitable Bottle Diameter | 40-120mm |
Suitable Bottle Height | 30-200mm |
Working Speed | 40-50 bottles/min (Could be customized) |
Package Size | 1230*1210*1260mm |
Gross Weight | 181kg |
| Automatic Can Sealing Machine | |
| Voltage | 220V/50Hz (customized) |
| Power | 0.55KW |
| Air pressure | 0.3-0.5mpa |
| Speed | 10-25 BPM (can be customized) |
| Bottle diameter | 50-126mm |
| Bottle high | 50-200mm |
| Outline dimension | 2400*1300*2200MM (L*W*H) |
| Net weight | 130KG |
| Laser Coding Machine | |
| Print range | 100*100mm |
| Speed | Max10000mm/s (can be customized) |
| Laser | Fiber laser generator |
| Machine size | 825*545*1425mm |
| Machine voltage | 220V (can be customized) |
| Weight | 80kg |
| Automatic Flip Device | |
| Material | SS304 |
| Label pasting precision | ±1mm |
| Speed | 25-80 bottles/minute |
| Suitable product size | Diameter Ф25mm-Ф180mm, Height: 30-450mm |
| Power | 220V/110V, 50-60Hz, 2.5kw |
| Automatic Plastic Lids Pressing Machine | |
| Attribute | Description or Value |
| Seal Can Diameter | Ф40-Ф130mm (can be customized) |
| Bottle's Height | 60-300mm (can be customized) |
| Cap's Height | 5-15mm |
| Speed | 30-50 Cans/minute (can be customized) |
| Storage Can Cover | About 100pcs |
After receiving your inquiry,We will send you the quotation as soon as possible.
