Application:
This machine is used to pack a variety of powder products, including coffee powder, milk powder, spices, curry powder, flour, starch, chemical powder, medical powder, and more. It ensures precise and efficient packaging for these types of products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

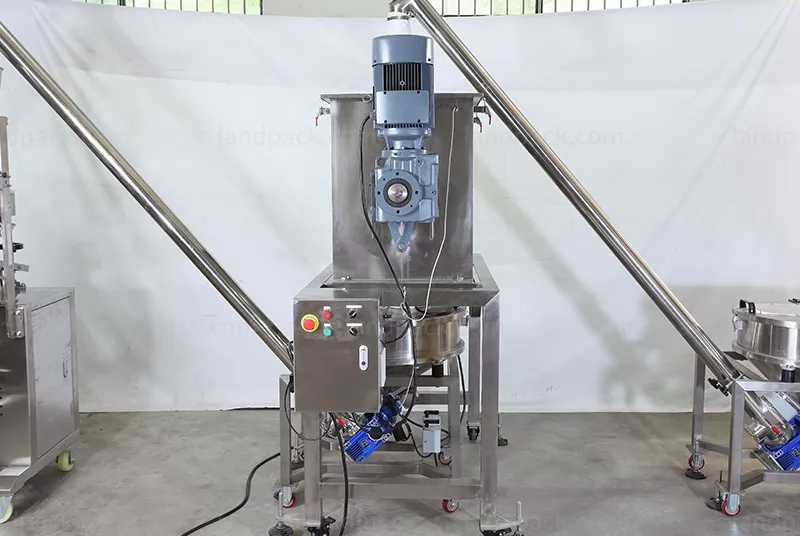

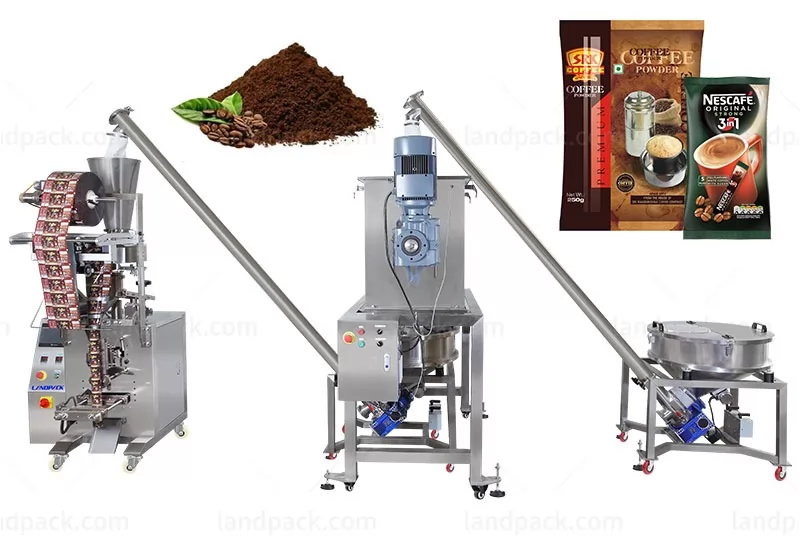

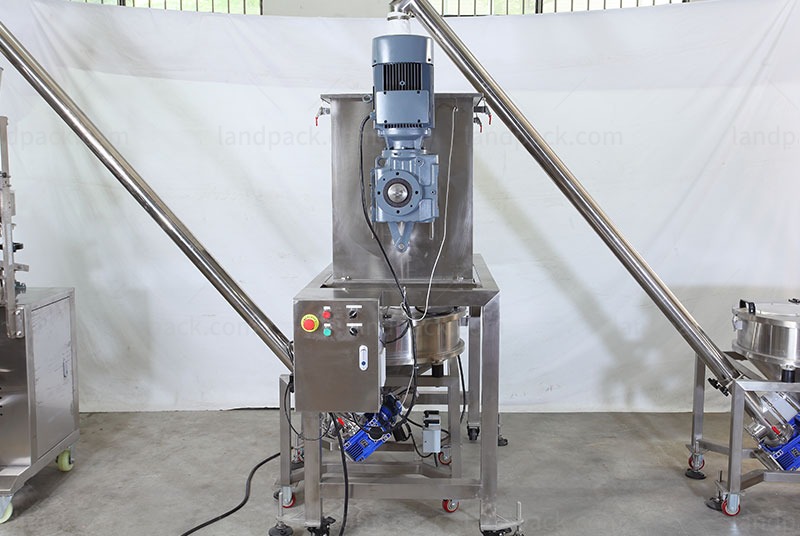

1. 200L Powder Mixer: Equipped with a 200L volume powder mixer to ensure thorough and consistent mixing of coffee powder before packing.
2. Wide Measurement Range: Capable of measuring and packing coffee powder from 9g to 100g directly into pouches, making it easy for operators to handle.
3. Smart Control System: The entire system is controlled by a user-friendly touch screen and PLC system, ensuring smooth, efficient, and reliable operation.
Workflow:
1. Feeding the powder to mix
2. Measuring the coffee powder by cups system

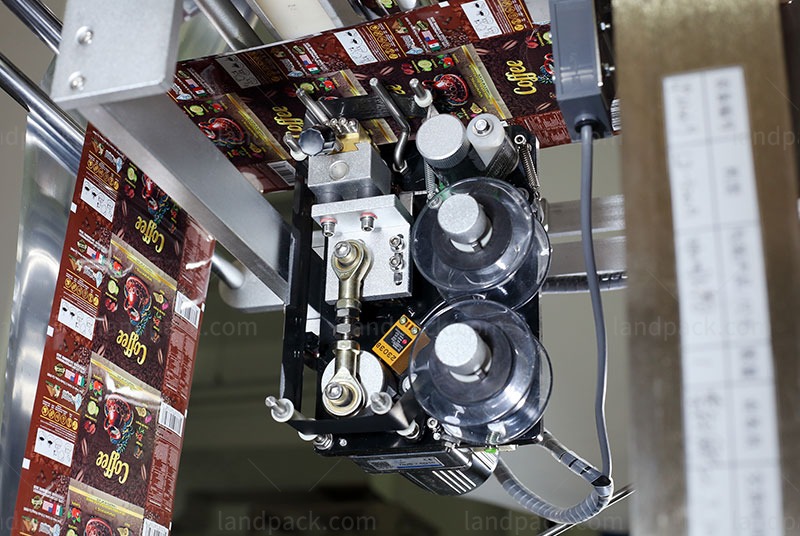

3. Print the date code on the film

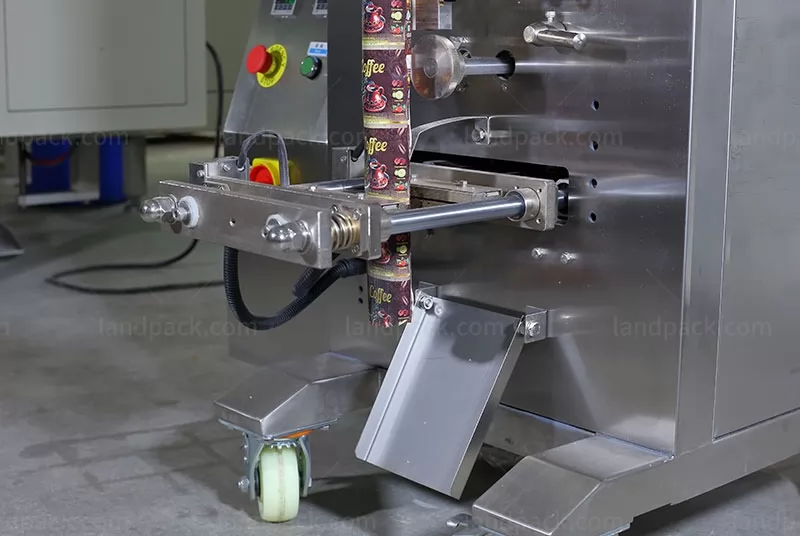

4. Forming, sealing pouch and output
| Model | LD-320D | LD-380D |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of the film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70 bags/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V, 50/60Hz, 2.2KW | 220V, 50/60Hz, 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
