Application:
This multilane stick packing machine, it is suitable for many kinds of powder products, such as 3 in 1 coffee powder, chili powder, seasoning powder, milk tea powder, pharmaceutical powder, herb powder, dry powder, nutrition powder, flour, milk powder, glucose, medical powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Sealing the bags well without any waste film, because of multiple rolls to pull the film for running smoothly, the cutter made of high hard stainless steel, it seal the bag with clear texture , no film stick on the sealing device.
2. The fillet bag is with the easy to tear mark place, so the customers open the bag easier and convenient.
3. Low maintenance cost : The machine is controlled by the timing belt , Independent temperature control table for each heating pipes, which easy to find and solve the problem.

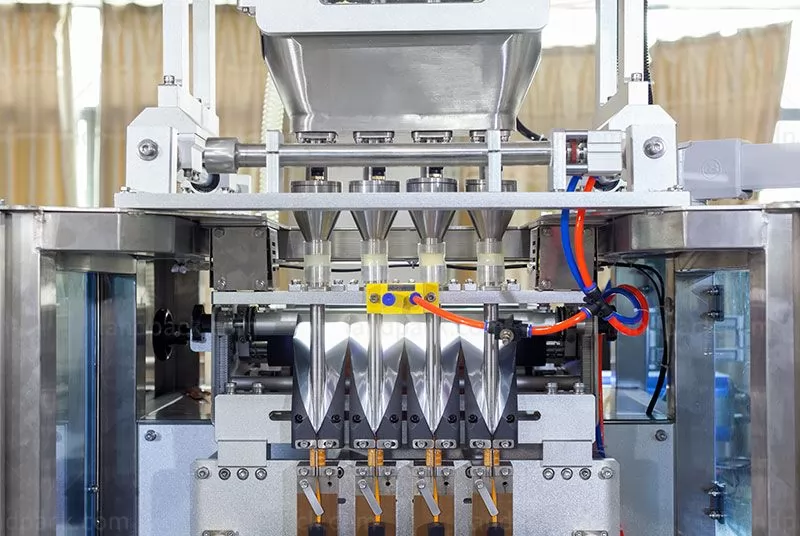

4.Powder vacuum feeding machine to transport the powder from the storage hopper to the measurement device automatically.
5.The machine would pull the flim, print the code by laser , form the bag, measure and fill the powder into bag, sealing and output the finished products automatically. No need worker to operate such function, durning the machine working.
Model | LD-280BF | LD-560BF |
Lane number | 4-6 Line | 8-12 Line |
Filling Method | 1.Volumetric cup; 2. Weigher | |
Capacity | Max.35 cycle/ min | |
Sachat Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
Film weidth & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular | |
Air & Powder | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw |
Dimension & weight | 1385*918*2005mm;350kg | 1685*1300*2005mm;550kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
