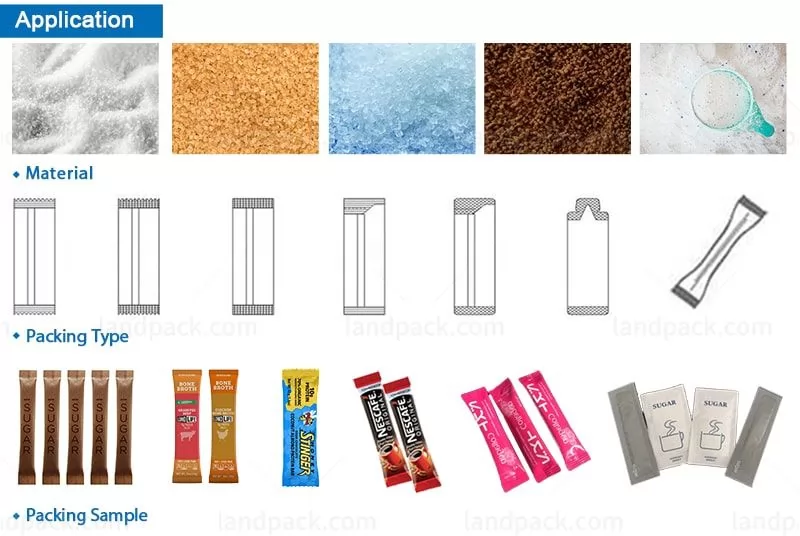

Application:
Suitable for Stick Packing Of Small Granule, Such As Coffee, 3 in 1 Coffee, Sugar, Salt, Aginomoto, Desiccant, Health Products Industry and So On.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
English and Chinese screen display, operation is sample.
PLC computer system, function is more stable, adjustment any parameters not need stop machine.
It can stock ten groups of parameters, simple to change variety.
Servo motor drawing film, positing accurately.
Temperature independent control system, precision get to 1 degree.
Horizontal, vertical temperature control, suitable for various of mix film, PE film bag material etc.
| Filling product | Powder |
| Filling volume | 1-40ml |
| Lane | 5 lanes |
| Max.packing width | 320mm |
| Width of bag | 15-40mm |
| Bag length range | 35-200 |
| Packing material core diameter | Φ70—Φ76mm |
| Total power (Kw) | 8kW |
| Filling accuracy | ±5% |
| Power supply | 380V 50Hz |
| Compressed air consumption | 0.25m3/h |
| applicable film | CPP/PE/OPP,CPP/PT,PE/KOP,CPP,PET/AL/PE,PET/PE,NY/AL/PE,NY/PE |
| Max.width of packing material(roll film) | 380mm |
| Max.outer diameter of packing material(roll film) | Φ300mm |
| Max.cutting frequency | Max.35bags/min/lane X 5lanes,it is depended on size of actual bags. |
| Max.capacity | Max.140bags/min |
| dimension(L*W*Hmm) | 1.1mX1.2mX2.2m |
| Weight | 1350kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
