Application:
The automatic multi-lane stick pack granule packaging and boxing production line is designed for granular products with good fluidity in the food, healthcare, and pharmaceutical industries. It is ideal for packaging items such as instant coffee, solid beverages, fruit enzyme powder, white sugar, granules, and Chinese medicine granules, providing efficient stick pack packaging and seamless boxing for high production efficiency.

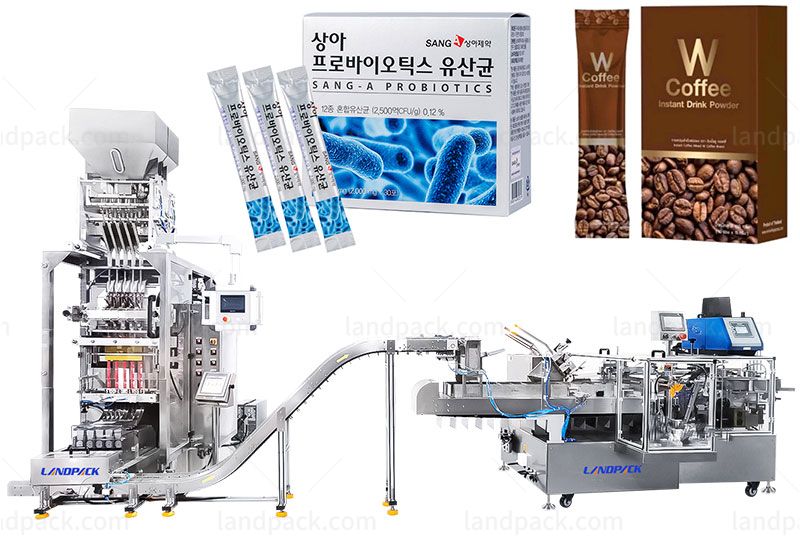

Packaging Line Composition:

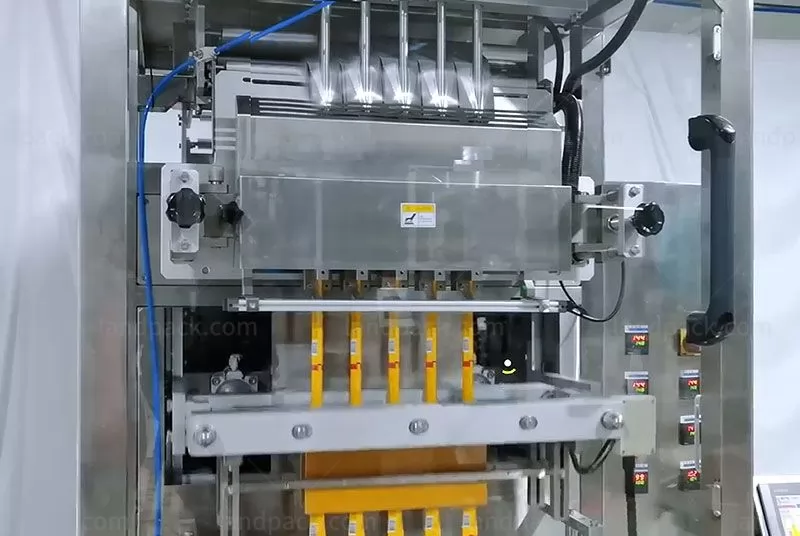

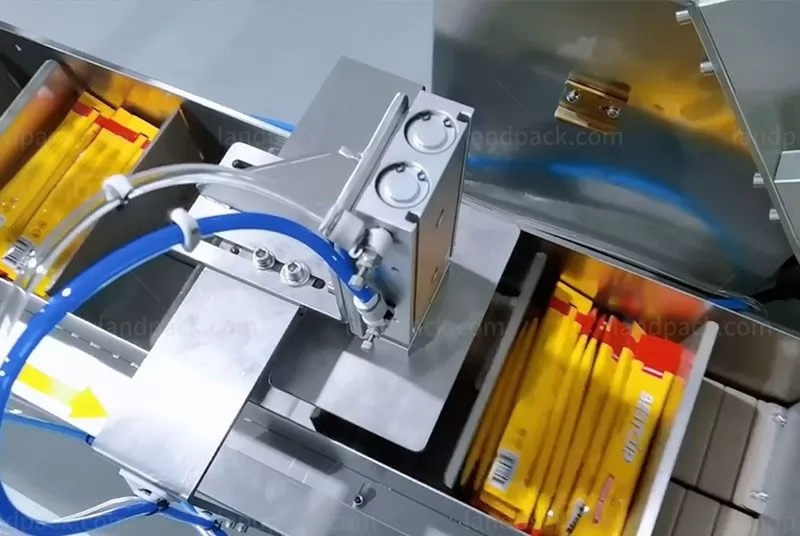

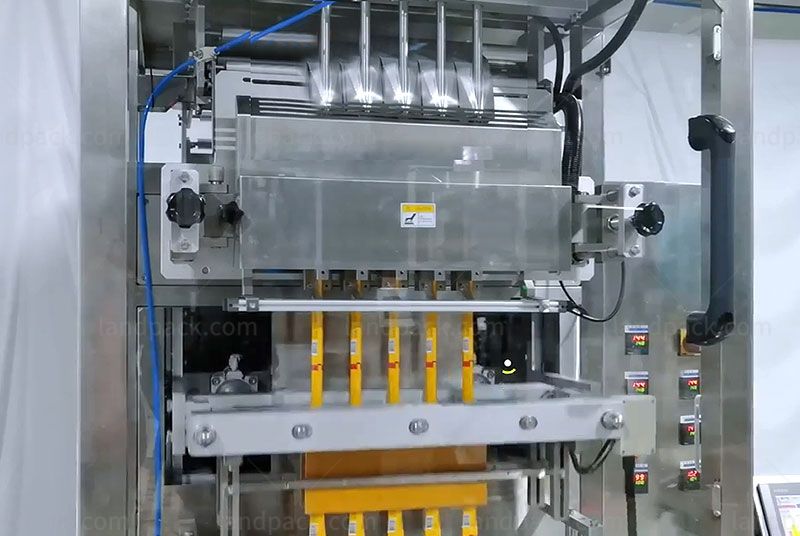

This packaging and boxing system consists of LD-280BK Multi-lane stick pack fine granule packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Fully Automated Process: Completes measuring, bag making, sealing, cutting, counting, and product conveying functions automatically.
2. Safety Design: Heat-generating and moving parts are safely enclosed in protective covers.
3. Stainless Steel Construction: Contact parts are made of stainless steel, meeting food and pharmaceutical production standards.
4. Mobility: Equipped with casters for easy movement and handling.
5. Automatic Alarm Protection: Features an alarm system to minimize material waste and prevent film wastage.
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD280BK |
Lane number | 2-6 Lanes |
Filling Method | 1. Volumetric cup; 2. Weigher; |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-65mm |
Film width & Thickness | Max.280mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw |
Dimension & weight | 1385*918*2005mm;350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
