Automatic Multilane Liquid Sachet Counting Into Bag Complete Packaging Line

  • Application
  • Description
  • Parameter
  • Video

Application:
The automatic multilane liquid sachet counting and bag packaging line is designed for packaging various liquid products, such as shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauces, jam, and jelly. It efficiently counts and packages liquid sachets into bags, offering a streamlined solution for liquid product packaging.

Packaging Line Composition:

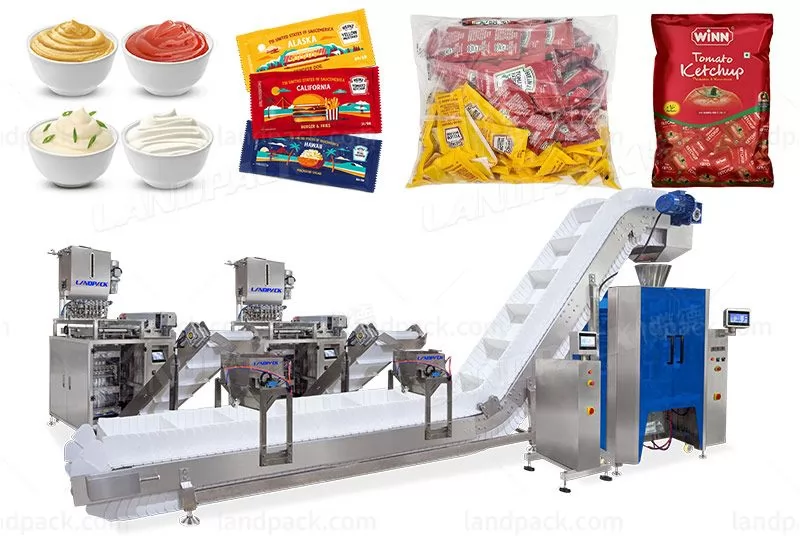

This sachet packaging and bag-in-bag machine system consists of multi-lane sachet pack liquid packaging machine, counting machine and vertical form filling sealing machine. It can realize sachet packed packaging into a bag.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    automatic sachet packing machine

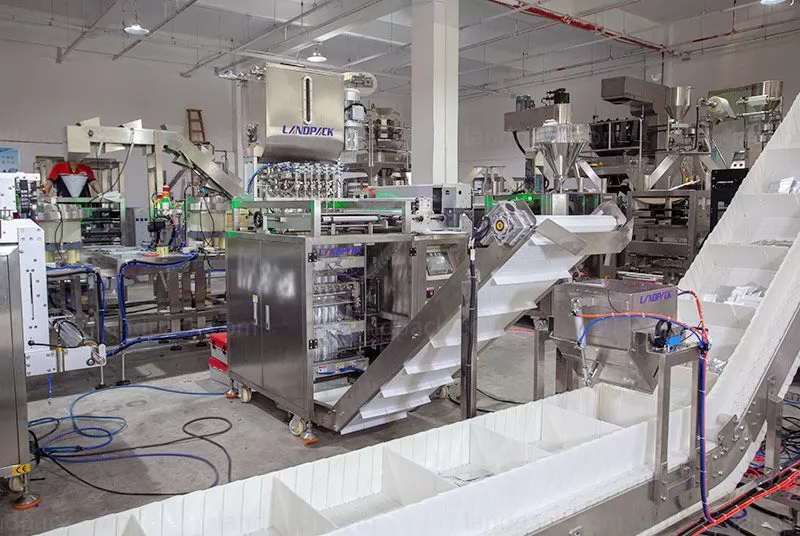

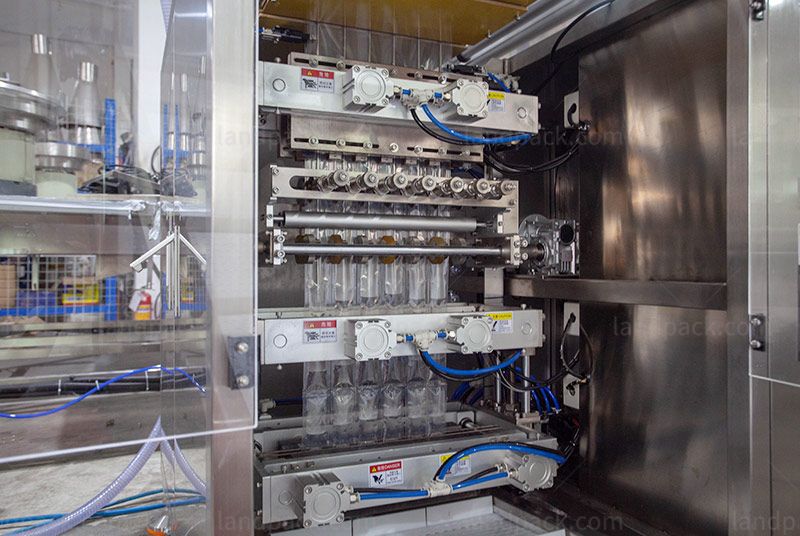

1. Multi-Channel Liquid Packaging Machines: Boost production and packaging efficiency with two high-performance machines.

2. Counting Sensor & Collection Device: Ensures accurate collection of the target number of small bags, which are then discharged into the chain conveyor.

3. High-Sensitivity Counting Sensor: Imported sensor guarantees precise counting for accurate packaging results.

4. Servo Motor Driven Conveyor: The inclined conveyor operates only when materials are present, optimizing energy efficiency and preventing unnecessary movement.

Multi-Channel Packaging Machines Parameter
ModelLD-480YLD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track
Filling Method1. Piston pump; 2. Peristaltic Pump
CapacityMax.40 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min, 2.8kw0.8 mpa, 0.8m³/min, 4.1kw0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg

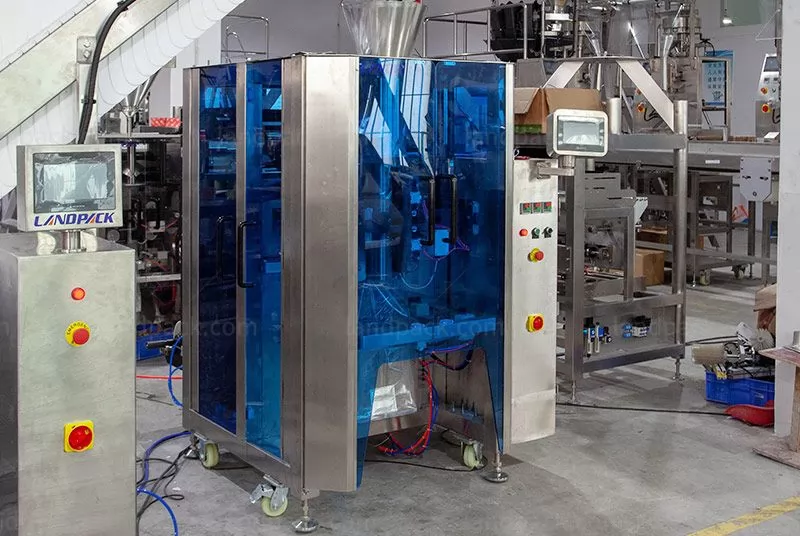

Vertical Form Fill Seal Machine Parameter
ModelLD-420LD-520LD-720
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm
Pakaging Rate5-60 bags/min5-60 bags/min5-55 bags/min
Film WidthMax.420mmMax.520mm150-Max.720mm
Measurement Range150-1500ml5-2000ml4000ml
