Application:
This high-speed multilane fine granule bagging and cartoning packaging line system is designed for a wide range of granular products, including cereals, coffee, monosodium glutamate, sugar, salt, pills, and desiccants. By simply replacing the metering device, the system can also be adapted for packaging liquid and powder products, offering versatile and efficient performance across various industries.
Packaging Line Composition:

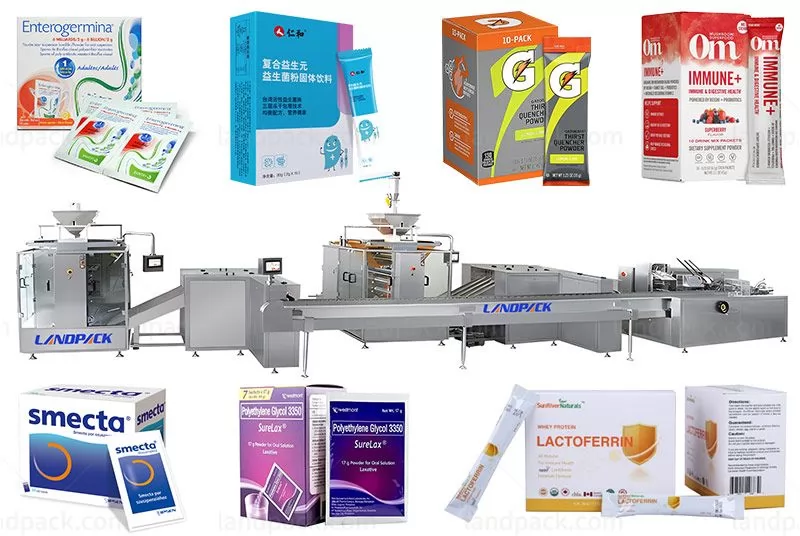

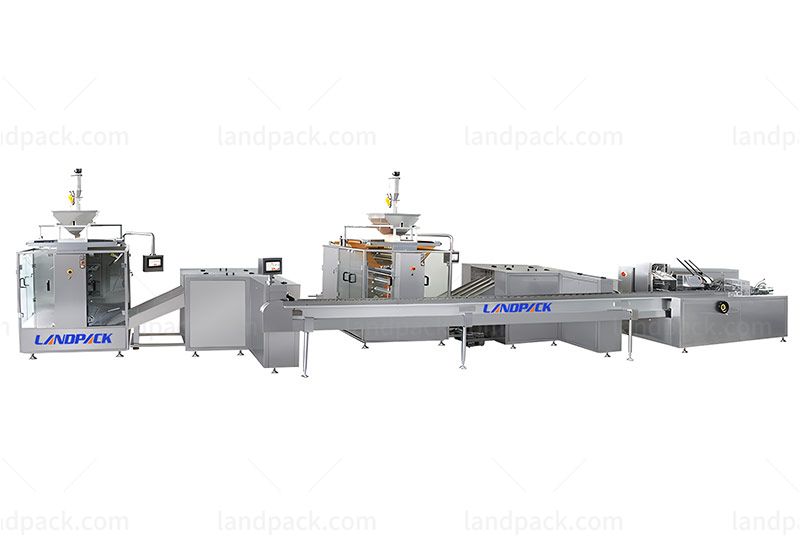

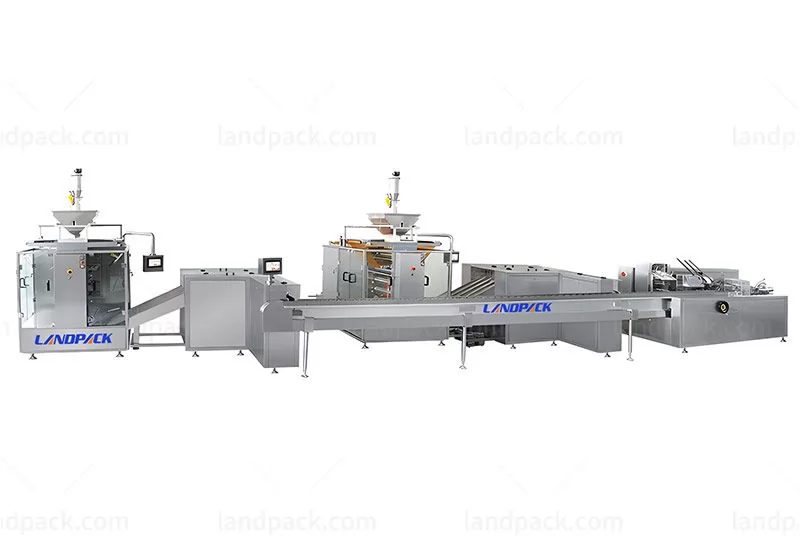

This stick packaging machine line consists of LD-480Y-2 multi-lane stick pack fine granule and powder packaging machine, small bag sorting conveyor, electronic weighing machine, weight sorting scale, and cartoning machine. It can realize stick packed packaging into boxes.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Handles the entire process from vacuum feeding, bag making, filling, cutting, and bag shaping to boxing, labeling, and waste rejection.
2. Utilizes a branded PLC control with automatic counting for stable performance and easy maintenance.
3. Built with corrosion-resistant stainless steel components, ensuring durability in various workshop environments.
4. Features a modular structure that allows customization based on customer requirements.
5. Key components are powered by servo motors, ensuring high accuracy and easy adjustment during operation.
| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
