Application:
The multi-lane liquid stick packing machine with a counting and cartoning line is ideal for packaging a variety of liquid products, including shampoo, shower gel, fruit juice, honey, milk, mouthwash, sauces, jam, and jelly. It provides efficient stick-pack packaging and precise counting, followed by seamless cartoning for a wide range of liquid goods.
Packaging Line Composition:

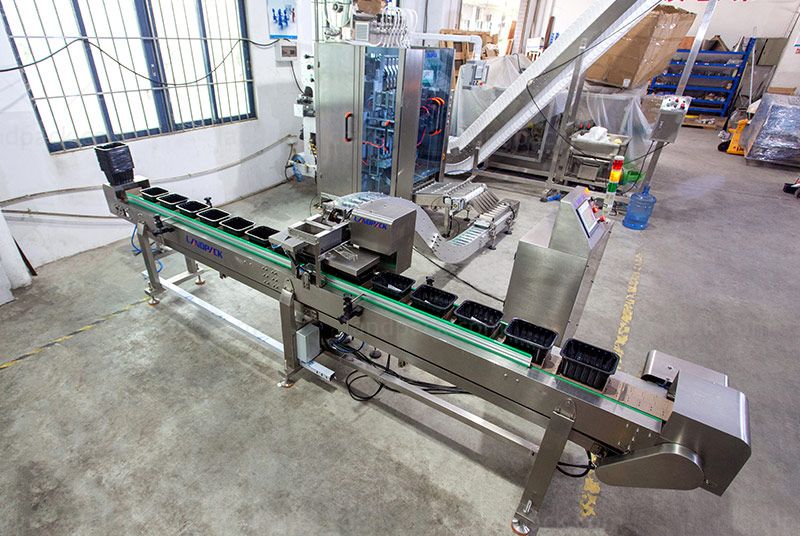

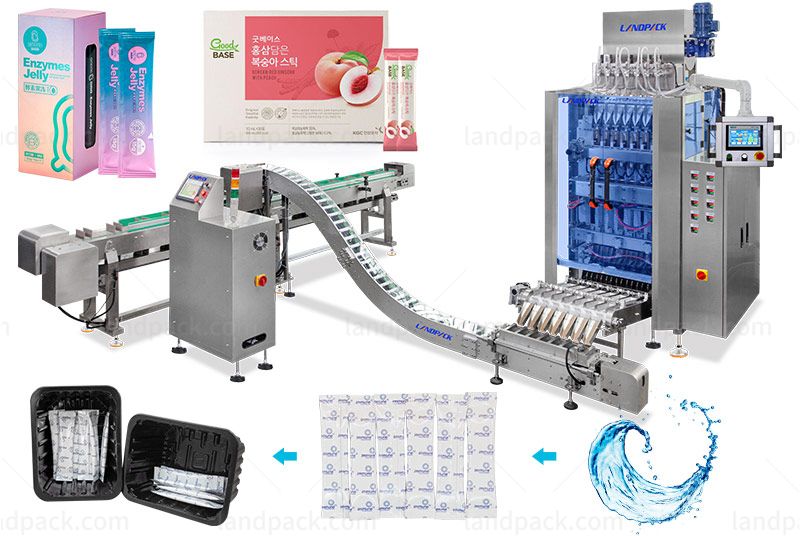

This stick packaging machine line consists of multi-lane stick pack liquid packaging machine, counting machine and stick pack into tray machine. It can realize stick packed packaging into trays.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

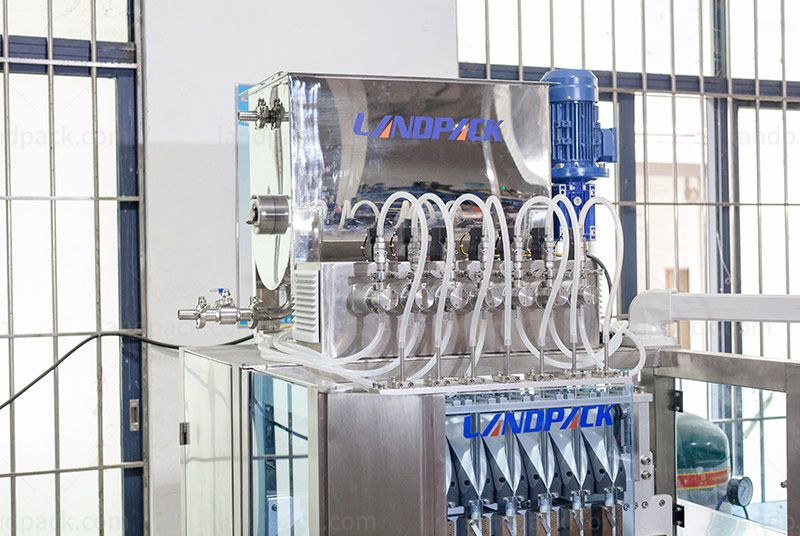

1. Precise Magnetic Pump Measurement: Ensures accuracy with an error margin of ±0.5ml and is easy to clean.
2. Automatic Counting & Alarm: Stops and alerts when materials are lacking, ensuring process control.

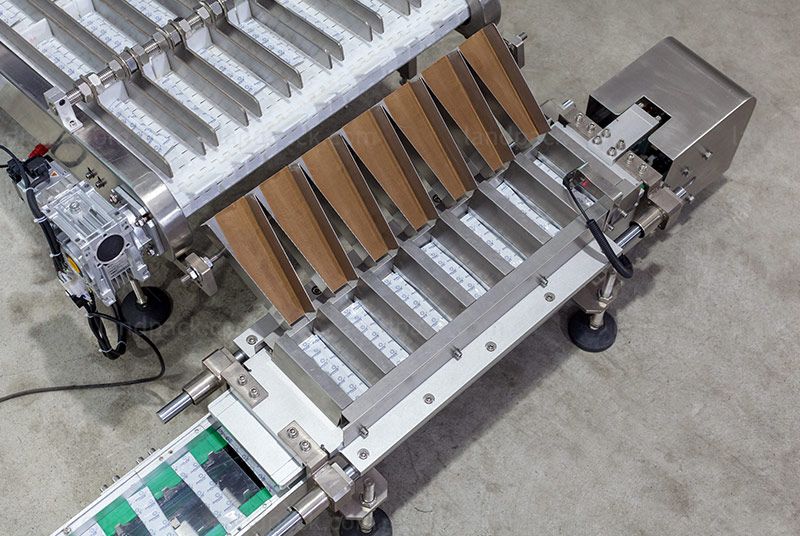

3. Seamless Conveyor Linkage: Guarantees precise product transfer onto the conveyor track for smooth operation.
4. Adjustable Counting: Offers flexibility to meet different quantity requirements for packaging.
5. Secure Sealing: Produces beautiful and firm package seals.
6. PLC Control: Ensures stable operation and easy maintenance through automatic counting and branded PLC control.
7. Efficient Touchscreen Operation: Simplifies control, requiring only one operator for the entire process.
8. Stainless Steel Construction: Corrosion-resistant, durable in various workshop conditions.
| Multi-Channel Packaging Machines Parameter | |||
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
