Automatic frozen pasta packaging machine customized for Canadian customers

        Theme: Frozen Pasta Packing Machine

        Published by:  Nancy-Landpack

        Country:  Canada

        Customer:  Company FR

        Product:  Frozen Pasta

        Packing by:  Plastic Bag

The Target & Challenge:

The customer is from Canada, the end customer wants to pack frozen and fresh pastas in plastic bag .

Package requirement: 250-1000 grams in one back-sealed bag package.

Bag sizes: L320*W250mm (same bag width but bag length adjustable)

Limited workshop height: 2.7 meters.

Production capacity: Around 800kg-1 ton in one hour.

How We Did It (Solution):

According to client’s package requirements and product details, we recommended the packaging solutions about model LD-520A with two slope conveyors to match the requirements.

Finally, after discussion and future solution, the client confirmed the solution as below:

1. Model LD-520A main packer : To match the required bag width of 250mm.

2. 10 heads 2.5L weighter: Equipped with timing hopper and non-stick with Teflon surface, to avoid the frozen fresh pastas from water and sticking on the surface.

3. Small support platform: Support the weighter: L1350xW1350xH773mm, because of the limited factory height of 2.7mm, the weigher should be placed down.

4. Slope type feeding conveyor (two sets) : To transport the frozen pastas from floor to weigher top  and lift the pastas to packer hopper top after weighted automatically.

5. Finished product conveyor: To lift finished pasta bag packages from packers outlet automatically, to keep packer outlet working smoothly.

6. Weigher checker : To detect the finished bags with weighed pastas in the target weight range (preset well on the touch screen), and move out if not in the set-up target weight range automatically.

7. Metal detector: To detect whether there are metal on the finished package, to keep food safe.

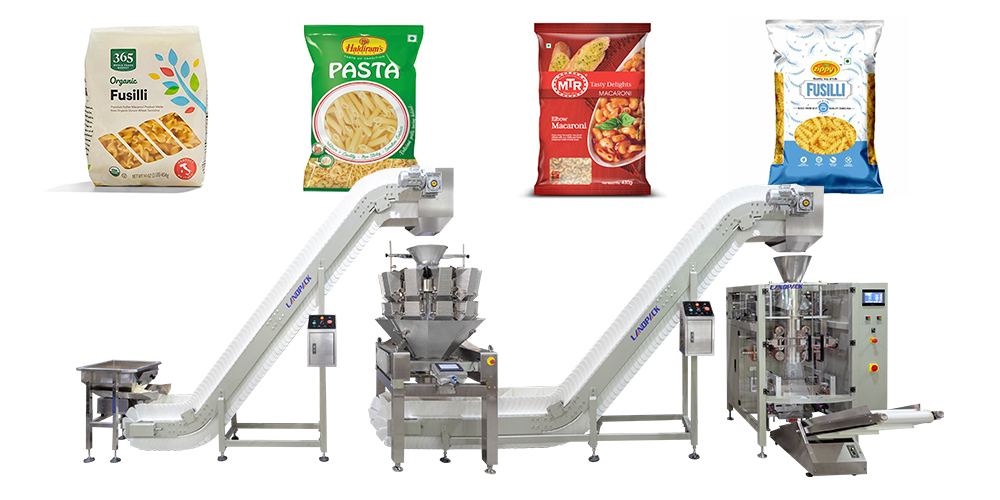

The pasta packing machine picture as below:

The pasta packing machine video as below:

Feedback:

It is with great pleasure that I share my experience with this exceptional team. From the very beginning, their professionalism shone through in every interaction. They were not only knowledgeable but also incredibly patient, ensuring that all my queries were thoroughly addressed and resolved. Their attention to detail and commitment to providing the best possible solutions were truly commendable.
