Our customers from Canada placed tube filling line order to LANDPACK,today I’d like to share our customer full filling line details for other customer as reference.

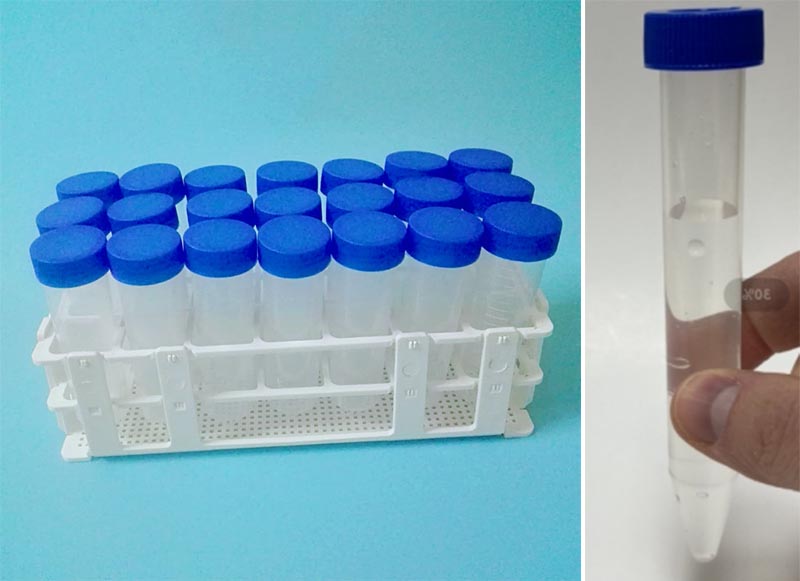

Customer product as below
They need to fill 1mL to 10mL detection reagent into the tube, the most important thing is to make sure the filling is accurate, the accuracy request ±0.02ml

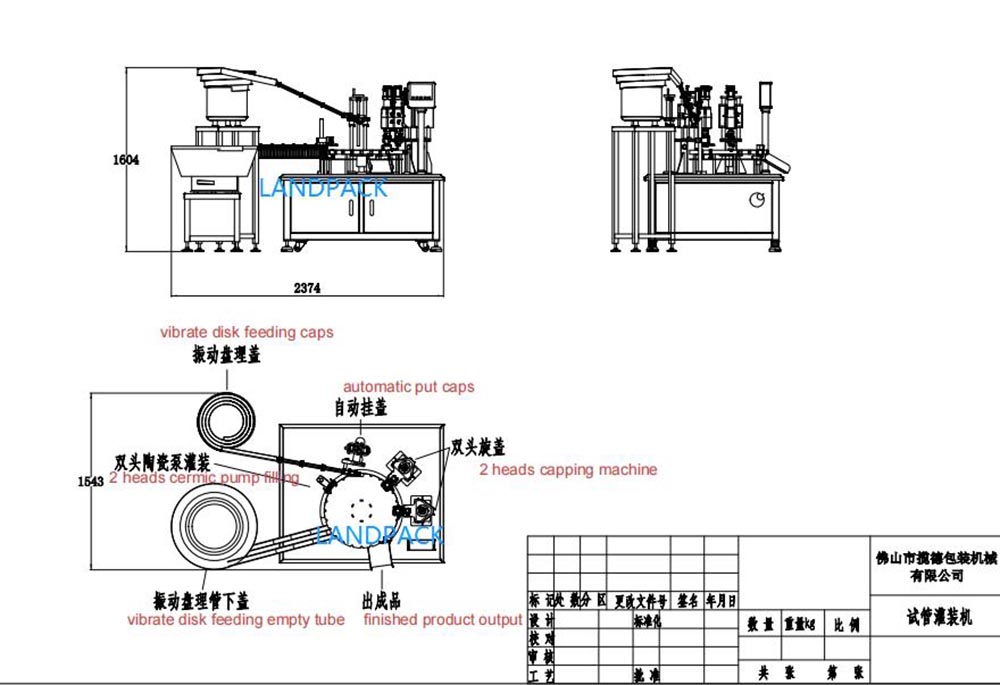

Based on above information, our engineer designed the drawing as below
Full line machine specification as below :
full automatic tube filling and capping
1.material:304 stainless steel
2.filling capacity:1ml-10ml,
fillling accuracy:≤±0.001ml
3.speed:20-30pcs/min,
1200-1800pcs/hour
4.filling head:2 heads
5,2 heads servo capping machine
6.PLC+touch screen
7.automatic feeding caps,automatic filling detection reagent

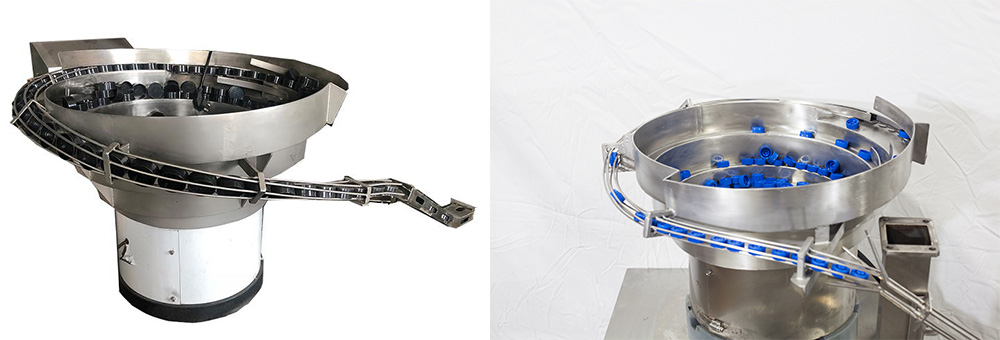

vibrate disk for feeding tubes and caps:
Speed:20-30pcs/minute
one vibrate disk for feeding tube's cap automatic
Customized based on caps size
another vibrate disk for feeding tube automatic
customize the vibrate disk based on tube size .

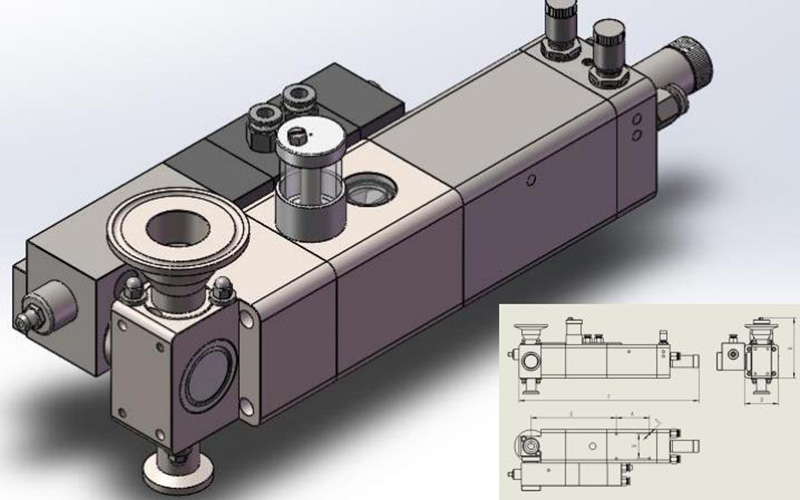

Cermic pump
model:WX-DZ20
Plunger material:AI203
hardness:1800/HV0.5
accuracy:0.001
filling volume:1ml-10ml
type :one cermic with two filling heads

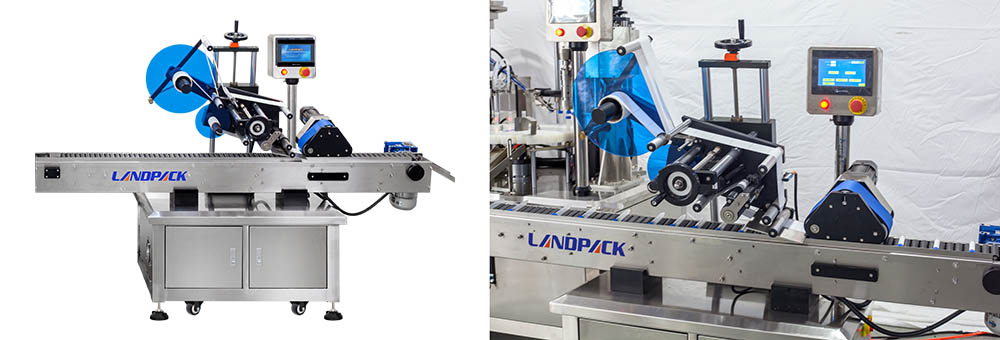

tube labeling machine
1. 304 stainless steel
2. Speed: 40-50 bottles/min at least
3. Label size:
4,product diameter:10-30mm
Can customized
5,Label size:Length:20-100mm
width:20-130mm
6,Label inner diameter:76mm
Answer questions through internal discussion and detailed communication,finally the customer is very satisfied with our solution, they arrange the 50% deposit at once

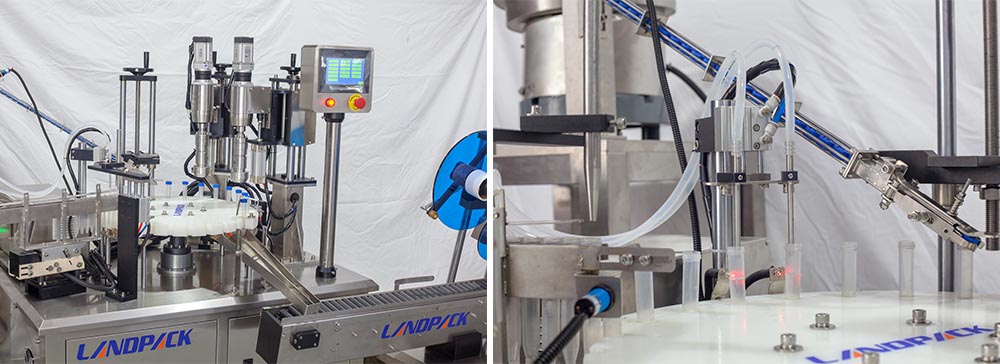

After getting customer’s deposit we start production at once, After more than a month of installation, debugging , full line finish as below.
The machine working video as below
Then customer arrange inpector to inspect the full line working proce, they’re very satisfied with full line details, they quickly arranged the balance payment and delivered the goods.

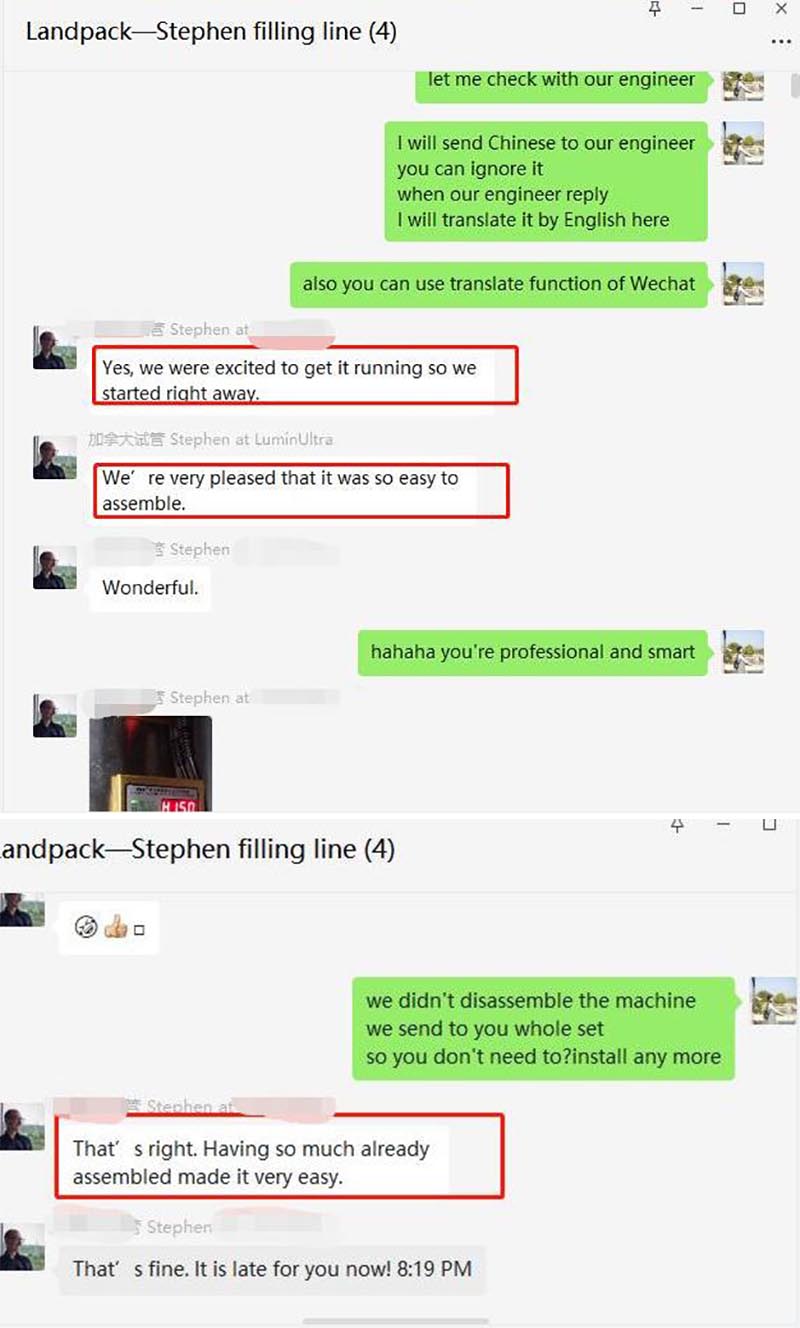

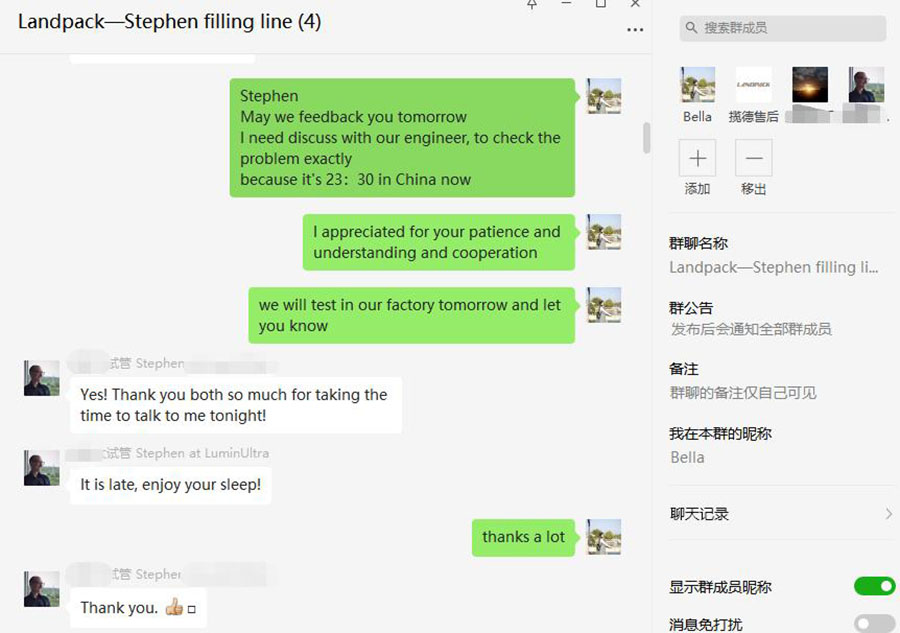

When customer got the machine, we made After Sale group by wechat, add our engineer, after sale person, our customer also add their engineer and workers in this group to follow machine operation.
Finally our customer installed the machine perfectly, the run well, customer send thanks to us.

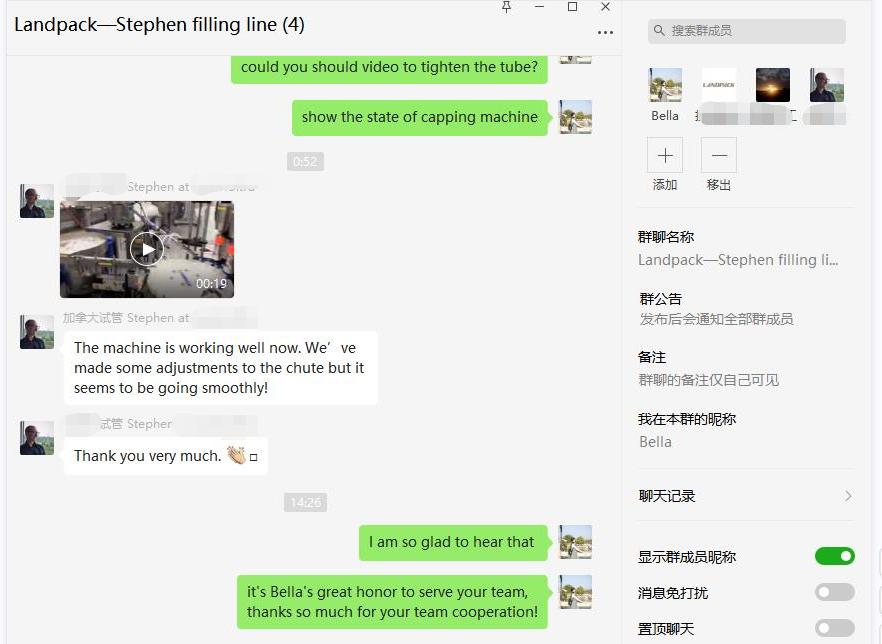

Now the machines are running well in their factory, which has greatly improved their production efficiency. The sales market of customers is also constantly expanding, and the products have received good feedback in the market,The customer again sent us a video of the machine working in their workshop.

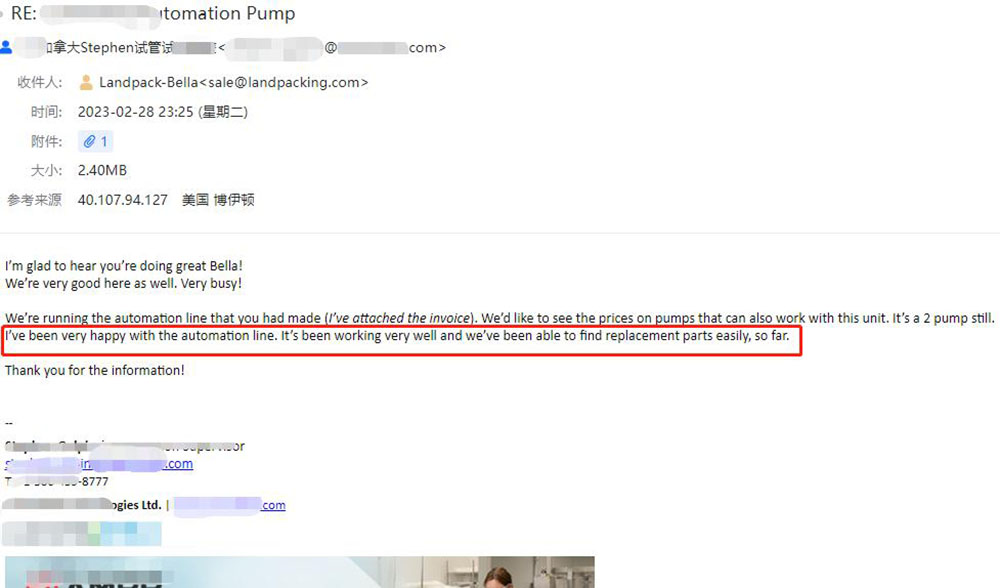

Last month, customer contact us again, ready to place second order of this line to expand their production capacity, they also recommend their friend who do similar product to buy our machine.
It is our great honor to be recognized by our customers. landpack not only provides high quality machines, but also provides satisfactory solutions and after-sales service to our customers. We never do one-time business, we are committed to building long-term cooperation!
If you’re interested in our machine our our company, just contact us!
We will provide best solution for you! Thanks for your time!
