Application:

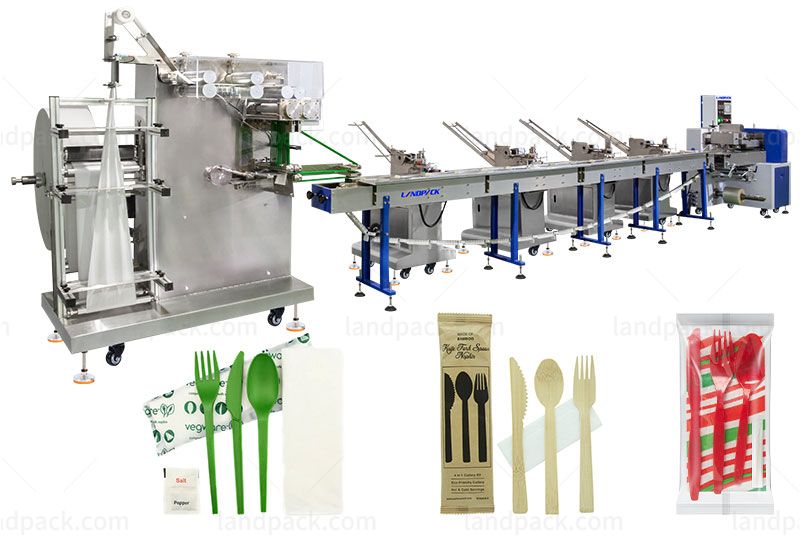

This automatic packing line is designed for fast and efficient packaging of various disposable tableware sets, including napkins, toothpicks, spoons, forks, and knives. This system integrates napkin cutting and folding, accurate toothpick packing, and automatic feeding of utensils, ensuring seamless operation.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Equipped with a full servo control main packer and PLC, making it very easy to operate.

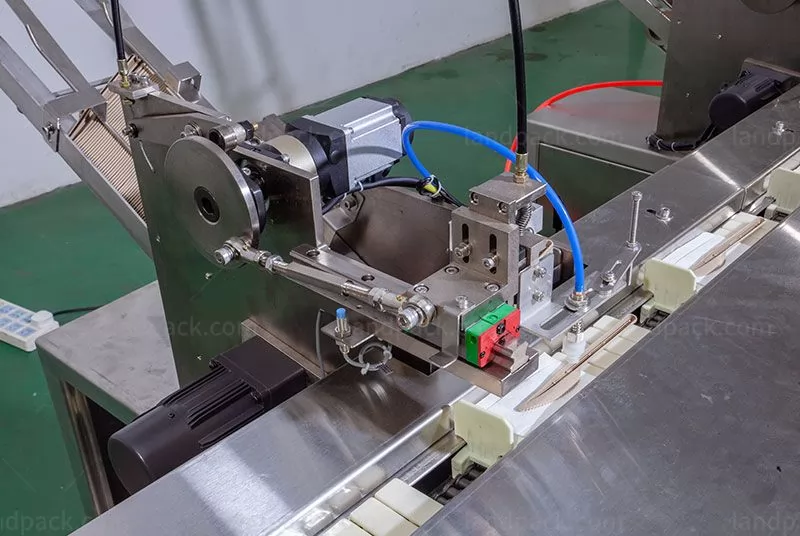

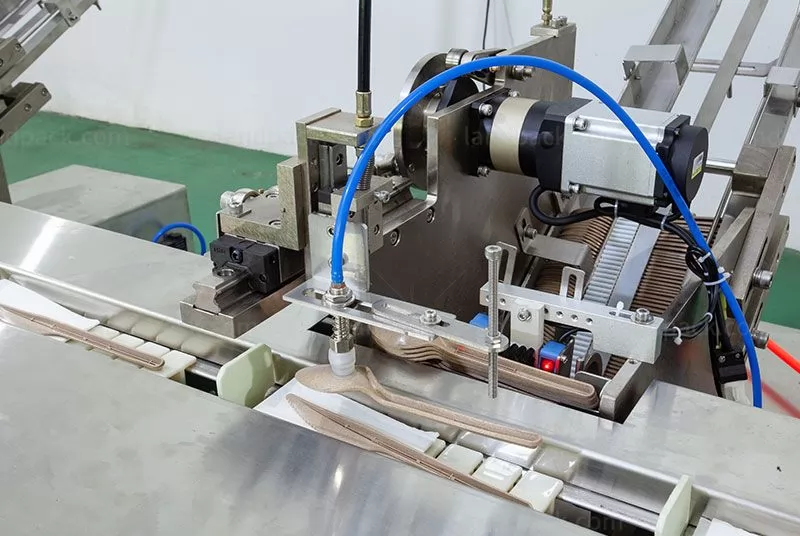

2. Features an automatic spoon insertion system to save labor.
3. Three-fold sealing in the same direction, ensuring strong end seals to prevent material deterioration.
Workflow:

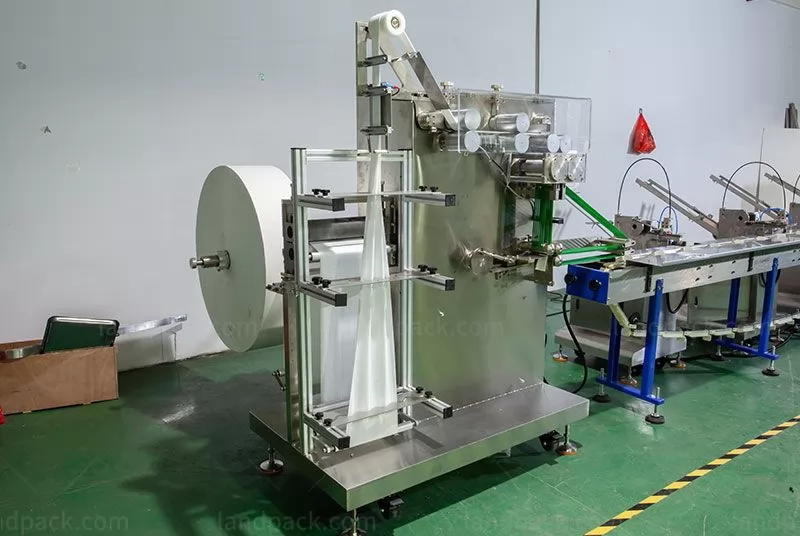

1. Napkin Feeding and Folding
2. Knife Feeding
3. Spoon Feeding
4. Fork Feeding
5. Bag Forming
6. Pillow bag Sealing
7. Output of the finished bag
| Machine Model | LP-350X |
| Film width | Max.350mm |
| Bag length | 150-2000mm(L) |
| Bag width | 50-160mm(W) |
| Packing speed | 40-80 bags/min (depends on material) |
| Product height | Max. 65mm |
| Power voltage | 220V, 50/60HZ, 2.6KW |
| Machine size | (L)3920*(W)670*(H)1320mm |
Machine weight | 550 kg |
| Material of frame | Carbon steel as standard: Contact part: SS304 |
| Driver | Full Servo Motor Driver |
| Film material | Nylon /PE as recommend for blades |
| Application | Regular Metal Parts, Components, Construction Tubes, Power Switches, etc. |
| Feature | Carbon steel frame, SS304 contact part |
After receiving your inquiry,We will send you the quotation as soon as possible.
