Application:
Widely used across industries such as pharmaceuticals, food, cosmetics, and chemicals, this machine is ideal for packing products like dishwashing powder, detergent powder, milk powder, protein powder, coffee powder, medicinal powder, chemical powder, and meal replacement powder. Ensures efficient and reliable packaging for powdered goods.
Packaging Type: Bottles, Cans, etc.
Packaging Material: Glass, Metal, Paper, Plastic, Wood, and Others.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Fully Automatic Operation: Includes feeding, weighing, filling, spoon dispensing, and collecting, significantly reducing labor costs and boosting efficiency.
2. Adjustable Versatility: Can be easily adjusted for different can types and varying weights, accommodating a wide range of packaging needs.
3. Stable and User-Friendly: Designed for reliable operation and straightforward control, making it easy to operate and maintain.

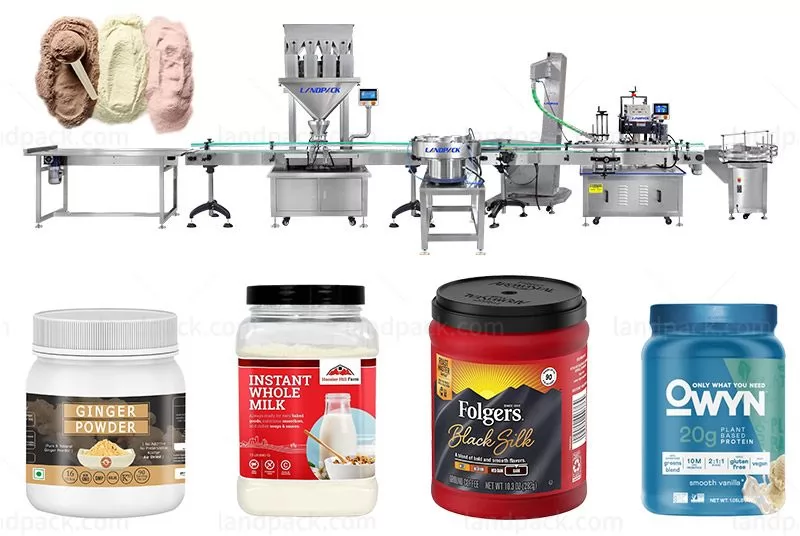

Workflow:
1. Automatic feeding of empty bottle
2. 4 heads weigher for weighing and filling automatically

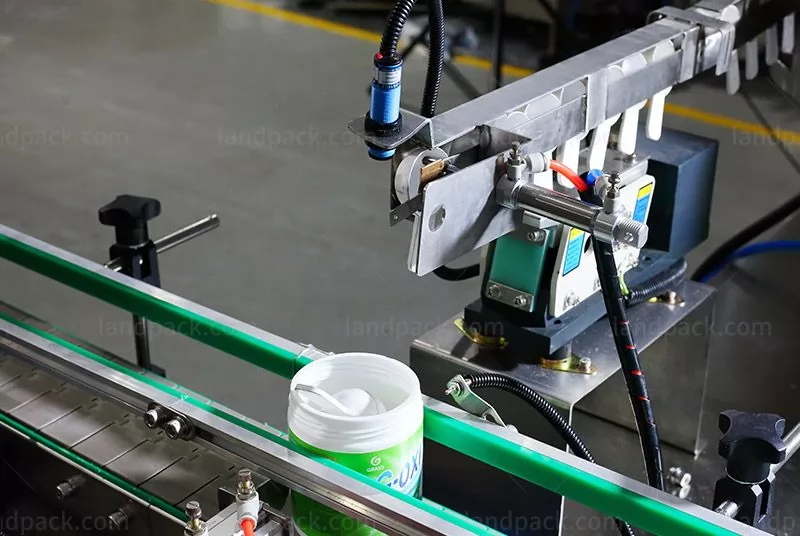

3. Automatic feeding spoon
4. Automatic feeding caps and automatical capping machine
5. Finished cans collection
Collecting Table | ||
Capacity | 30-50 Bottles | |
Material | Stainless Steel 304 | |
Dimension | 300*2000*100mm | |
Weight | 200KG | |

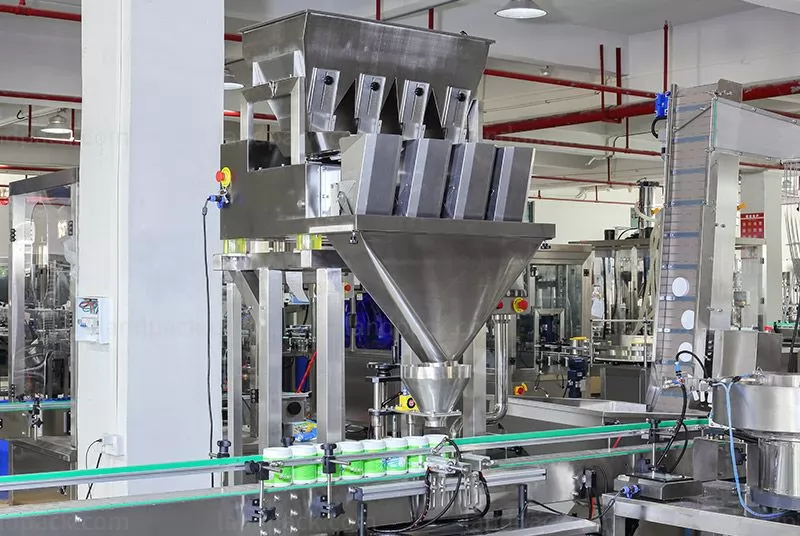

Linear scale filling machine | ||
Model | LD-AF01 | |
Filling range | 20-2000g | |
Filling speed | 15-25 bottles/min | |
Conveyor Length | 2m | |
Dimension | H2000*W1000*H2000mm | |
Hopper Volume | 3000ml | |
Material settings | 20 | |
Most Material kinds | 4 | |
Power | AC220V, 50/60HZ | |

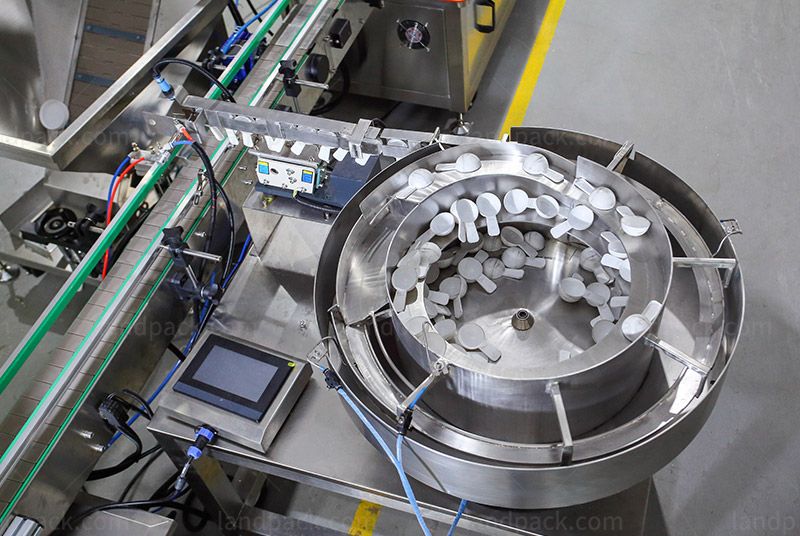

Vibration plate spoons feeder | ||
Voltage | 220V/50Hz (customized) | |
Power | 300W | |
Speed | 10-40 BPM (customized) | |
Vibration top diameter | 60-80cm | |
Spoon size | Customized | |
Outline dimension | 1000*800*1200MM (L*W*H) | |
Net weight | 150KG | |
High speed capping machine | ||
Model | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) |
Capacity | 40-100 bottles/min | 30-80 bottles/min |
Bottle cap diameter | Φ18mm-Φ80mm (Could be customized) | Φ18mm-Φ80mm (Could be customized) |
Bottle diameter | Φ35mm-Φ140mm (Could be customized) | Φ35mm-Φ140mm (Could be customized) |
Bottle sealing height | 38mm-300mm (Could be customized) | 38mm-300mm (Could be customized) |
Power | 2KW | 1.5KW |
Voltage | 220V, 50HZ | 220V, 50HZ |
Air pressure | 0.6-0.8Mpa | 0.5-0.7Mpa |
Weight | 350kg | 300kg |
Dimensions | H3120*W1544*L2122 | H3100*W1244*L2122 |
Bottle conveyor feeding device | ||
Machine Model | LD-LP800N | |
Power Supply | 220V/110V, 50-60Hz, 200W | |
Turntable Diameter | 800mm (Could be customized) | |
Suitable Bottle Diameter | 20-100mm | |
Suitable Bottle Height | 30-320mm | |
Working Speed | 40-60 bottles/min (Could be customized) | |
Package Size | 1230*1010*1260mm (Could be customized) | |
Gross Weight | 141kg |
