Application:
This versatile machine is widely used in the pharmaceutical, food, cosmetics, and chemical industries. Perfect for packing products like pool cleaning powder, dishwashing powder, detergent powder, milk powder, protein powder, coffee powder, medicinal powder, chemical powder, and meal replacement powder, it guarantees efficient and reliable packaging for various powdered goods.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Versatile Compatibility: Designed for detergent powder and powerful pipe-cleaning particle bottle filling, suitable for various applications.
2. Adaptable Bottle Measurements: Compatible with different bottle sizes to meet diverse packaging needs.
3. Multi-functional Capping: Equipped with various capping machines for versatile and efficient operations.
4. Precise Labeling: High-efficiency labeling machine ensures accurate and seamless application.
5. Cost-effective Design: Shared production lines minimize site area, and compatible filling equipment reduces overall investment costs.

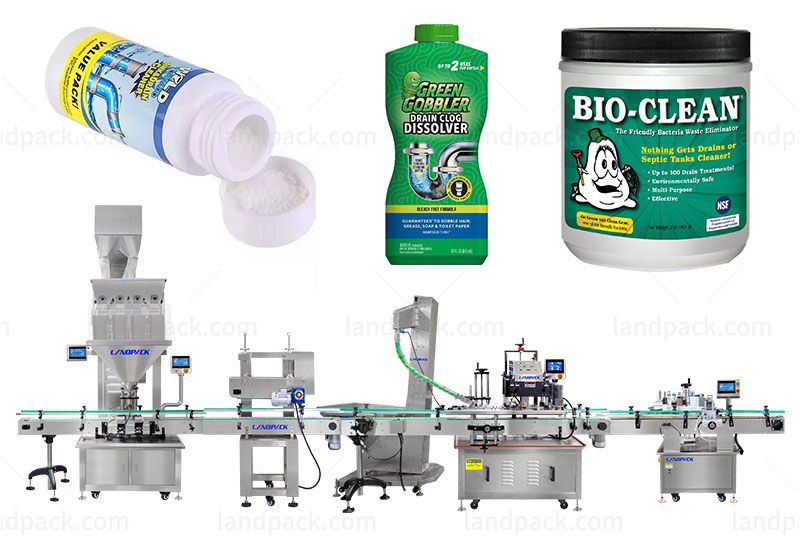

Workflow:

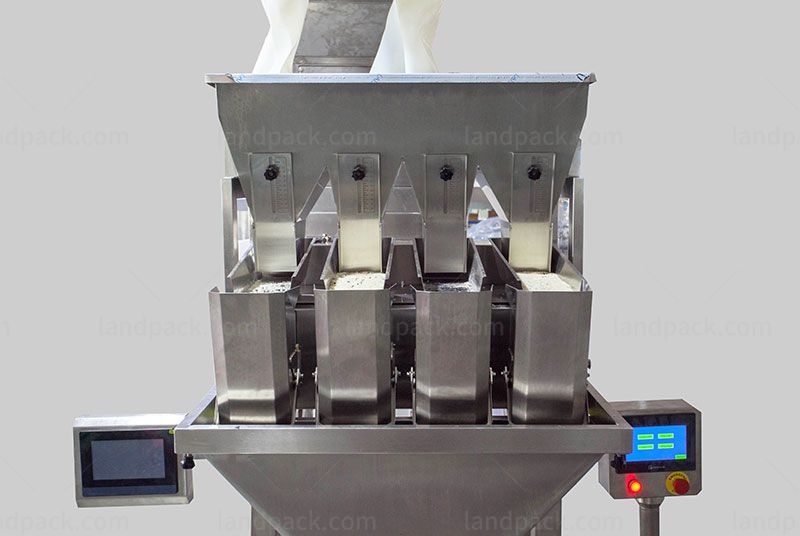

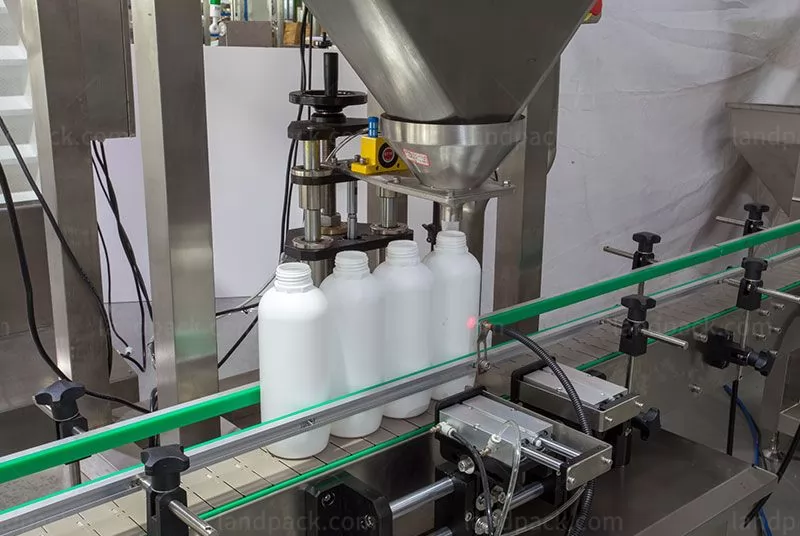

1. 4 head weigher linear filling
2. Pressing cap
3. Automatic caps lifting
4. Pair clamp rotary capping machine
5. Bottle scroll labeling
| 4 Head Linear Scale Filling Machine | ||
| Filling Weight | 20-2000g | |
| Weighing Accuracy | +1-3g | |
| Speed | 15-25 bottles/minute | |
| Conveyor belt length | 2m | |
| Dimensions | L2000*W1000*H2000mm | |
| Hopper Capacity | 3000ml | |
| Material Arrangement | 20 | |
| Maximum ingredient category | 4 | |
| Power | AC220V, 50/60HZ | |
| High Speed Capping Machine | ||
| Model | LFX-GS-150 (Eight wheel capping) | LFX-GS-250 (Six wheel capping) |
| Capacity | 40-100 Bottles/min | 30-80 bottles/min |
| Bottle cap diameter | ф18mm-ф80mm (Could be customized) | ф18mm-ф80mm (Could be customized) |
| Bottle diameter | ф35mm-ф140mm (Could be customized) | ф35mm-ф140mm (Could be customized) |
| Bottle sealing height | 38mm-300mm (Could be customized) | 38mm-300mm (Could be customized) |
| Power | 2KW | 1.5KW |
| Voltage | 220V, 50HZ | 220V, 50HZ |
| Air pressure | 0.6-0.8Mpa | 0.5-0.7Mpa |
| Weight | 350kg | 300kg |
| Dimensions | H3120*W1544*L2122 | H3100*W1244*L2122 |
| Automatic Labeling Machine | ||
| Model | LFT-YP-00 | |
| Labeling Speed | 20-60 bottles/minute | |
| Labeling Accuracy | ±1mm | |
| Max Label Width | 100mm | |
| Applicable Product Size | ф30mm-ф80mm (Can be customized) | |
| Applicable inner diameter of paper | ф76mm | |
| Applicable outer diameter of paper | Max.ф330mm | |
| Air Source | 4-6 KG, 30L/min | |
| Dimension | 2000*800*1600mm | |
| Voltage | 220V, 50 Hz, 2000W | |
| Weight | 250KG | |
After receiving your inquiry,We will send you the quotation as soon as possible.
