Application:
This machine is suitable for the automatic packaging of granular powder particles in food, pharmaceutical, chemical, pesticide, and other products. Such as peanuts, melon seeds, potato chips, peanuts, oatmeal, desiccant, washing powder, tea, coffee, sugar, various sugar-free loose granules, and so on.
It can adopt all types of heat-sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouches with or without spouts, paper bags, flat pouches, stand-up pouches, zipper pouches, spout pouches, m gusset pouches, paper pouch, aluminum foil pouch, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Wide applications: various states and natures of solid(granule);
2. A wide range of pouches: all kinds of pre-made pouches;
3. Easy to operate: PLC controller and HMI system makes easy operation;
4. Easy to adjust: change different pouches within 10 minutes;
5. High Automation: unmanned in weighing and packing process, machine alarm automatically when failure;
6. Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus saving the production cost;
7. The product contact parts are adopted SUS304 to ensure sanitation and safety, and meet the GMP standard;
8. Imported engineer plastic bearings, no need to oil, no contamination;
9. Vacuum generator: low consumption, high efficiency, cleanness, and long useful life;
10. Pre-made bag packing: perfect sealing quality, upgrade the finished product;

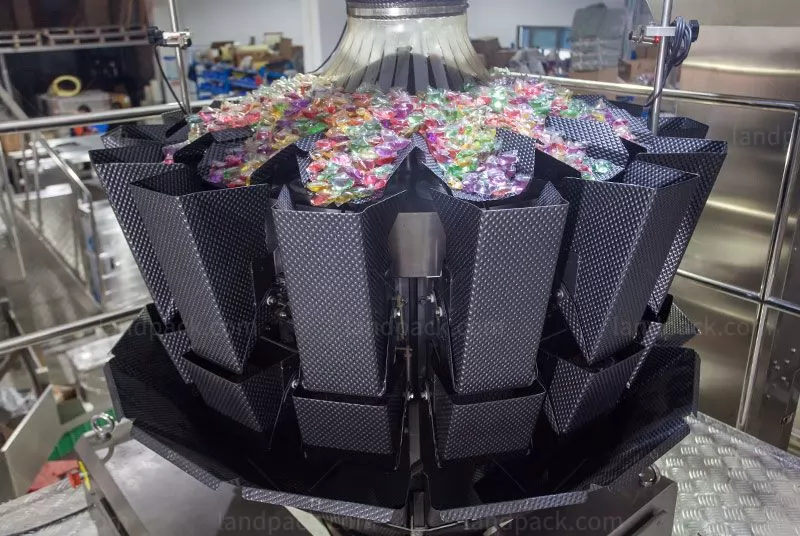

11. The surface of the weigher is sprayed with Teflon to avoid sticking.
Model | LD-8200A/ 8240A/ 8300A |
Packing material | all types of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouches with or without spouts, paper bags, flat pouches, stand-up pouches, zipper pouches, spout pouches, m gusset pouch, paper pouch, aluminum foil pouch, etc. |
Size | W: 70-200/L: 100-250 |
Filling range | 10-1000g/20-2500g |
Packing speed | 40-60 bags/min(speed is determined by the product filling quantity) |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Dimensions | 1900mm*1570mm*1700mm(L*W*H) |
Workflow | giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
