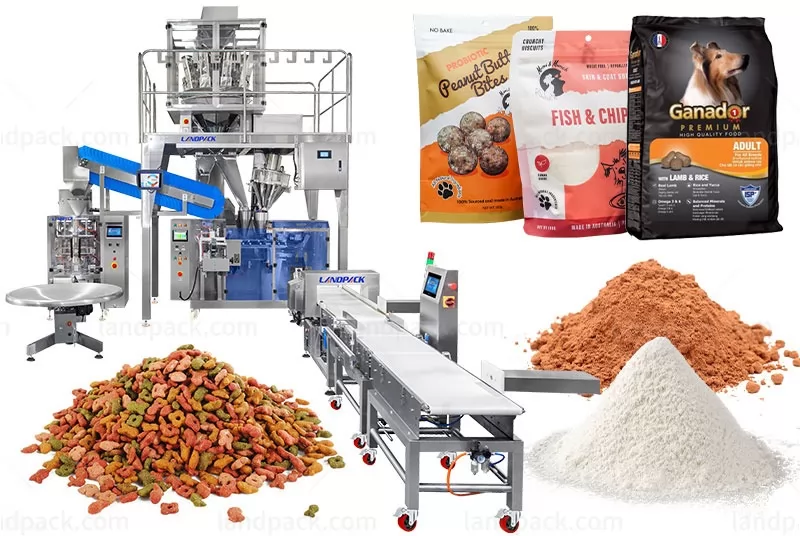

3 In 1 Automatic Doypack And VFFS Packing Machine Line For Powder And Granular

Application:
This versatile packaging machine is designed for both granular and powder materials, offering flexibility and precision in filling. Equipped with a metal detector for removing packaging with metal contaminants and a checkweigher to reject over- or under-weight packages, it ensures high-quality, efficient packaging.
-Granules Materials: coffee beans, rice, nuts, dry food, snacks, jerky, chips
-Powder Materials: coffee powder, milk powder, protein powder, washing powder, etc.

Sutable Pouch:
M Shape Pouch, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, Pillow Bag, Back Sealing Bag, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

1. Three-in-One System: Combines three machines into one compact system, optimizing space and reducing costs.

2. Cost-Effective and Space-Saving: Less cost and space are required while offering enhanced packaging capabilities.

3. Versatile Packing Modes:
   - First mode: Automatically feeds, weighs, and packs granular products into film roll bags.
   - Second mode: Fills and packs powder into pre-made pouches.
   - Third mode: Fills and packs granular products into pre-made bags.

4. Enhanced Food Safety and Accuracy: Equipped with a metal detector and check weigher for all packing modes, ensuring food safety and high precision.

Workflow:
Grain VFFS Packing, Powder Doypack, Grain Doypack 3 in one solution:

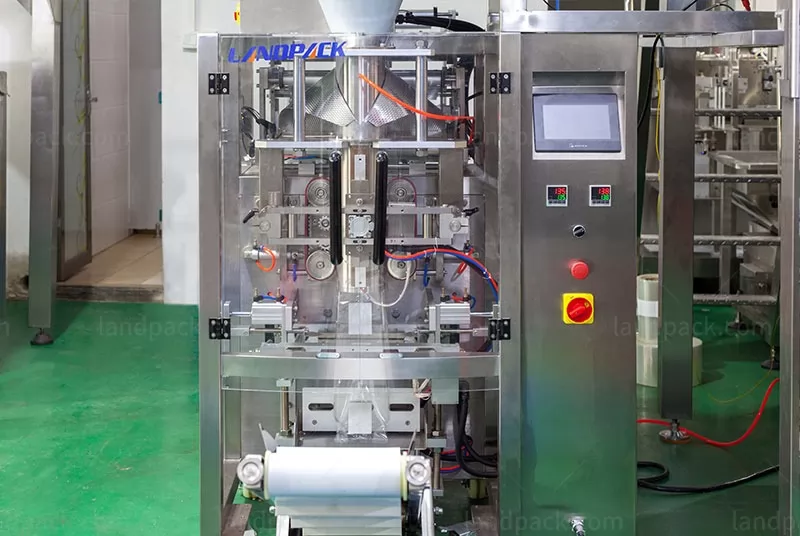

1. Grain VFFS Packing solution

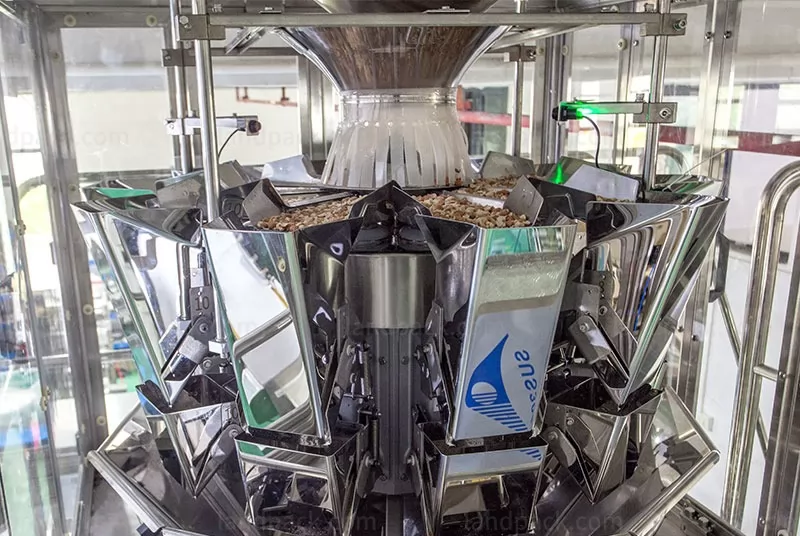

Z-type elevator for automatic grain feeding, multi-heads weigher for high accuracy weighing, with labeling machine and VFFS packing machine for making and sealing bags automatic, ensure good sealing effect and high accuracy.

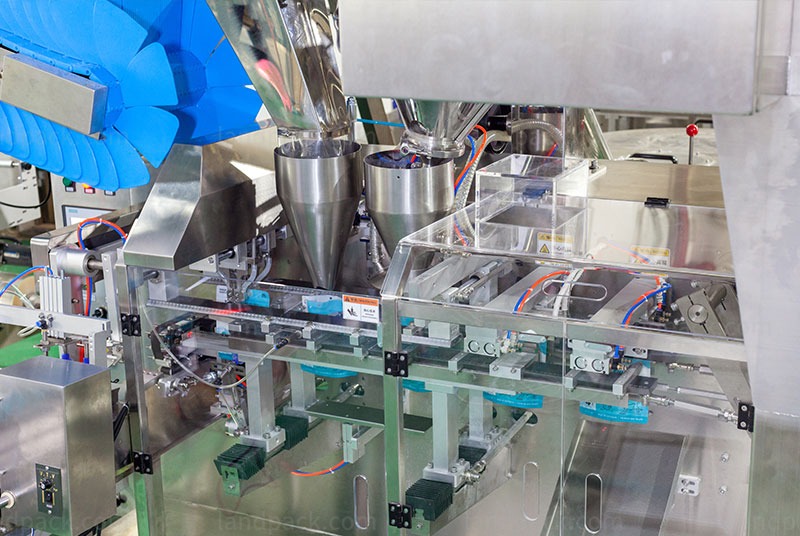

2. Powder Doypack solution
Screw feeding conveyor for automatic feeding powder, servo control auger filler for accuracy powder filling, doypack machine to automatically open pouch, filling and sealing the zipper and pouch
-Horizontal bag feeding device
-Ribbon code print
-Opening zipper and bag fully
-Volumetric pump filling, Vacuum cleaning
-Sealing-Output
-Metal detector and weight detector
3. Grain Doypack solution
Flexible switch from granular product to powder filling, equip with metal detector to remove all packaging with metal and with check weigher to rejected all packaging over or under weight.
-Horizontal bag feeding device
-Ribbon code print
-Opening zipper and bag fully
-Volumetric pump filling, Vacuum cleaning
-Sealing-Output
-Metal detector and weight detector
