Application:

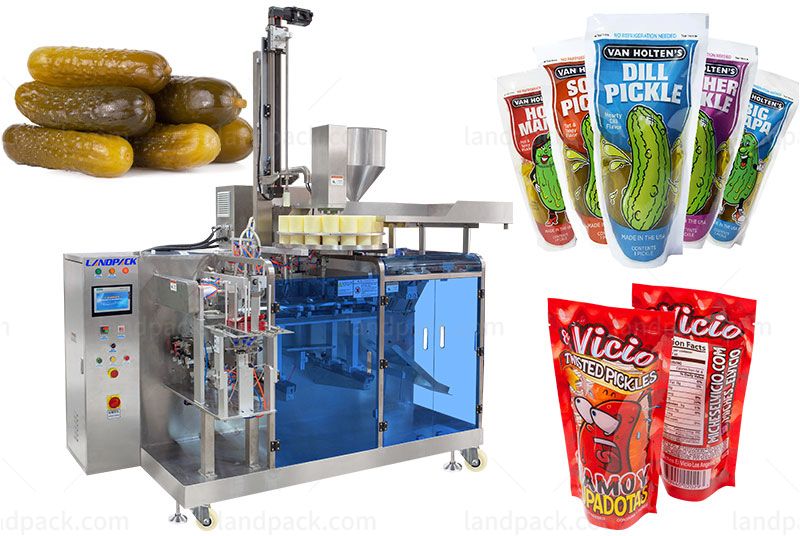

Suitable for packing pickles products into premade doypack pouches premade pouches such as pickles, pickled cucumber, carrot, kimchi, kelp, chili, etc.
Suitable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. This machine is designed to accommodate various bag sizes. Whether you’re packaging small or large items, it can adapt accordingly.
2. The machine ensures stable performance even at high speeds. This reliability is crucial for efficient production lines.
3. By achieving a mixed filling of cucumber and sauce liquid, this machine streamlines the process. It not only saves labor but also significantly improves production efficiency.
Workflow:

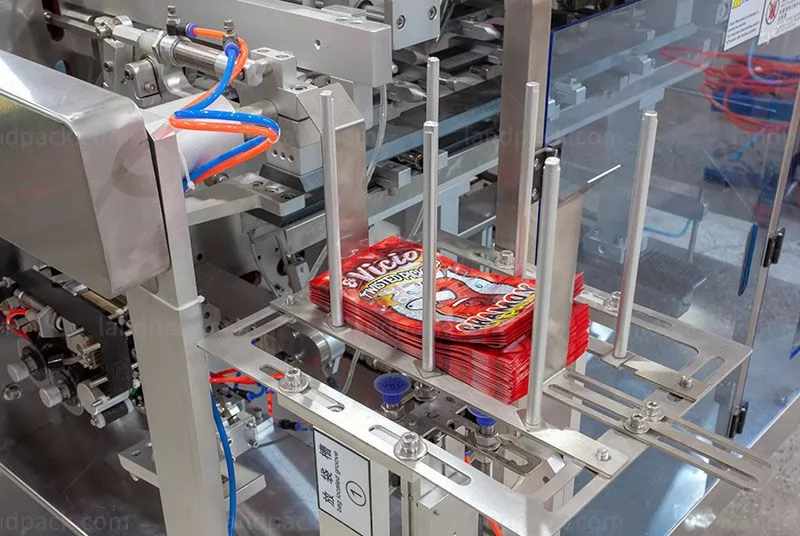

1. Bagging
2. Opening
3. Cucumber Cutting

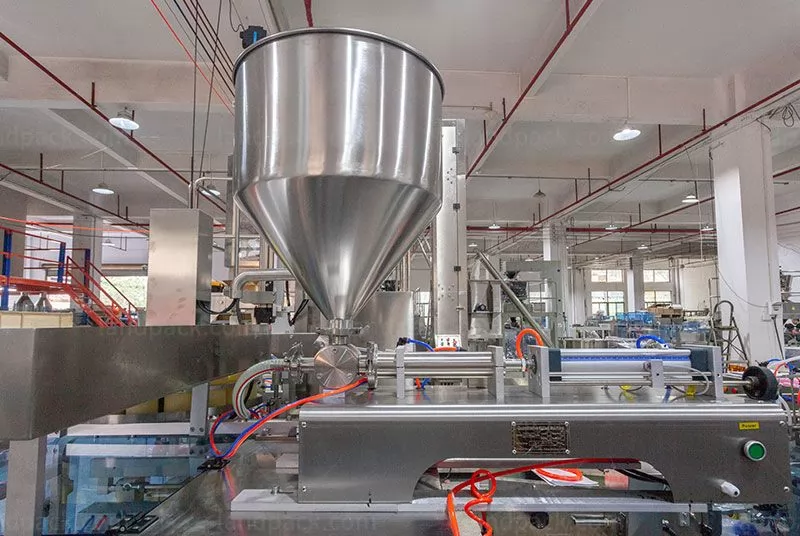

4. Seasoning Sauce Filling
5. Sealing
6. Finished Product Output
Model | LDSP-210B+L |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
size | W: 100-210 mm |
Filling range | 20-1000g |
Packing speed | 20-50 bags/min（speed is determined by the product filling quantity） |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Weight | 900 KG |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
