Application:

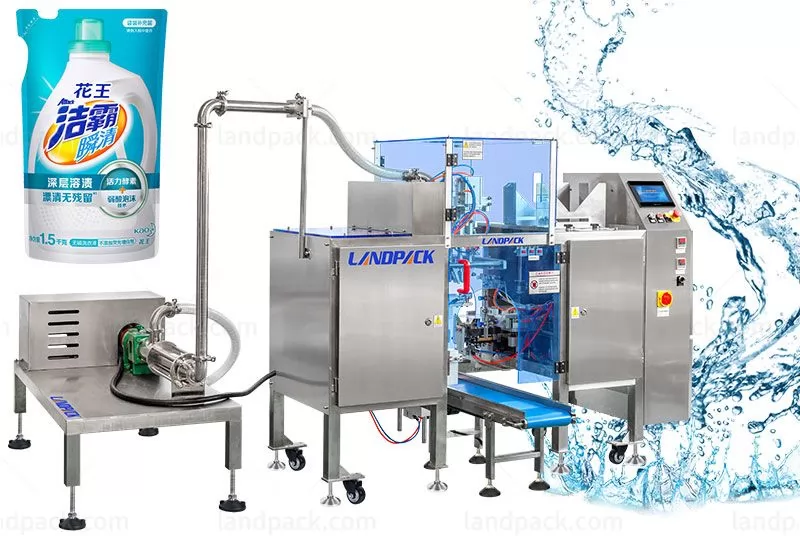

This doypack packaging machine is widely used in doypack packaging for various liquids and pastes in food, medical, and daily products etc. such as soy sauce, vinegar, fruit juice, ketchup, beverage, tomato sauce, chili sauce, bean paste, washing liquid, etc which in good fluidity.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The machine is designed for user-friendly operation, ensuring efficiency and convenience.
2. This feature eliminates common errors, such as pouch open issues, insufficient filling, and incomplete sealing. Automating these checks minimizes waste and ensures reliable packaging.
3. The machine incorporates safety measures, including stopping operation in case of abnormal air pressure or heater disconnection. Safety is a top priority for operators.
4. The machine allows flexibility in bag dimensions. You can adjust the bag width to accommodate different product sizes.
5. Equipped with a glass safety door, the machine halts operation when the door is opened. This ensures operator safety during maintenance or adjustments.
6. The packing process minimizes material wastage. Additionally, the sealing part maintains high quality, enhancing the overall product specification.
7. The machine supports various feeding hoppers, catering to different product types—whether solid, liquid, thick liquid, or powder.
8. It accommodates an extensive variety of bag materials, making it adaptable to diverse packaging needs.
| Type | LDB-300 | LDB-430 | LDB-600 |
| Doypack Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | ||
| Doypack Type | 3-side sealing bag, stand-up bag, gusset bag, zipper bag, box bag | ||
| Bag Size | 100-300mm*80-300mm(L*W) | 100-430mm*80-300(L*W) | 380-600mm*250-500mm(L*W) |
| Packing Speed | 0-15 bags/min | 0-10 bags/min | |
| Sealing Type | Straight grain, pitch is 1 mm (Optional reticulate) | ||
| Sealing Width | 10 mm (5-20 mm) can be customized | ||
| Voltage | 220V, Single phase, 50/60 HZ, 1.2 KW | ||
| Air Pressure | 0.65 Mpa | ||
| Air Consumption | 0.3 m³/min | ||
| Size | 1770*600*1230 mm | 1677*1140*1450 mm | |
| Weight | 300 kg | 350 kg | 450 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
