Application:
It suitable for various liquid: Ketchup, hand sanitizer, detergent, fruit juice, soy sauce, , honey, vinegar, drinks, chilli sauce, sunflower oil, peanut butter, jam, laundry detergent, bean sauce etc.
Sutable Pouch:
It can adopt all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

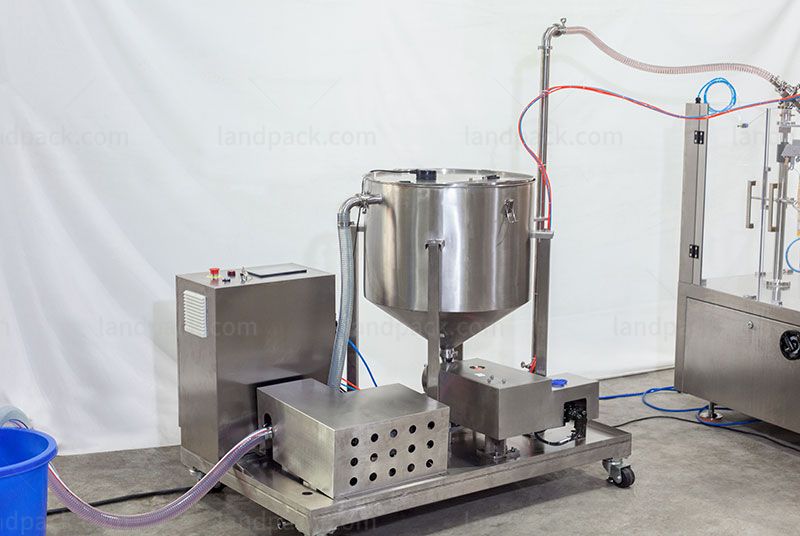

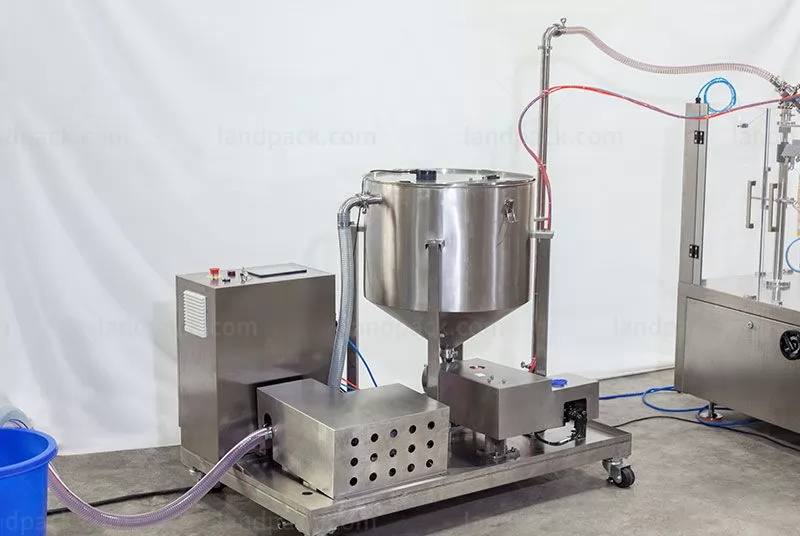

1.Rotor Pump for feeding and measuring the high viscousity Liquid Products.
2.100L SS316 Storage Hopper for big Tank Liquid Storage No Liquid With Feeding Alarm Function.
3.8 pre setting Liquid Capacity easy to Operate on the touch screen.
4.Simens PLC Control system keep the full set machine running stable.
5.Rotary doypack machine has the functions of no bag no filling & no filling no sealing.
6.Filling Range from 100ml-2500ml.
7.High Speed 25-40bags per min saving labour cost.
| Model | LD-8200D/ 8240D/ 8300D |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W: 100-300mm L: 100-450mm |
| Filling range | 5-2500g (Depending on type of products) |
| Packing speed | 25-60 bags/min (The speed depends on type of products and packaging material used) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
After receiving your inquiry,We will send you the quotation as soon as possible.
