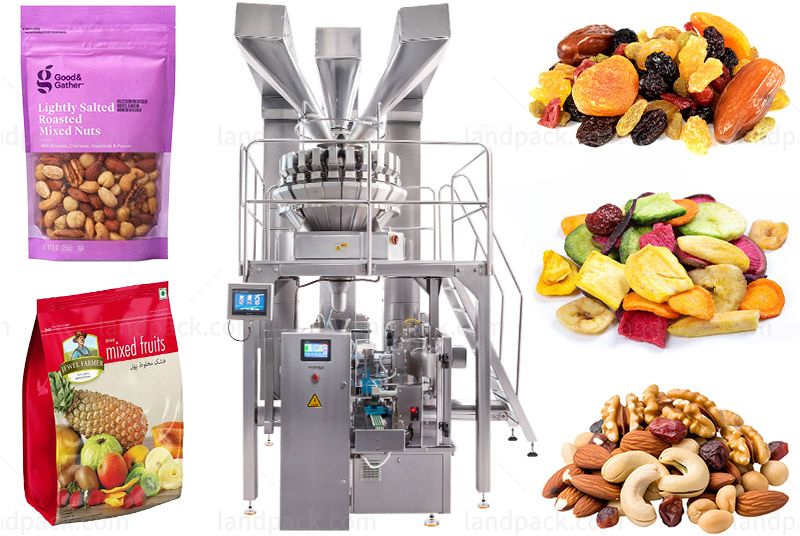

Application:
Suitable for automatic packing of grain and solid food, such as dry fruits, dry apples, dry tomatoes, dry mango, nuts, etc. Different kinds of products with stand-up pouches, doypack with zippers, 3-side seal bags, 4-side seal bags, flat bags, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Three-Material Mixing: Capable of mixing three different materials together.
2. Zipper Opening & Nitrogen Filling: Equipped with a zipper opening and nitrogen filling device to extend product shelf life.
3. Dimple Surface Weigher: Designed with a dimpled surface to prevent materials from sticking to the weighing plate.
Workflow:

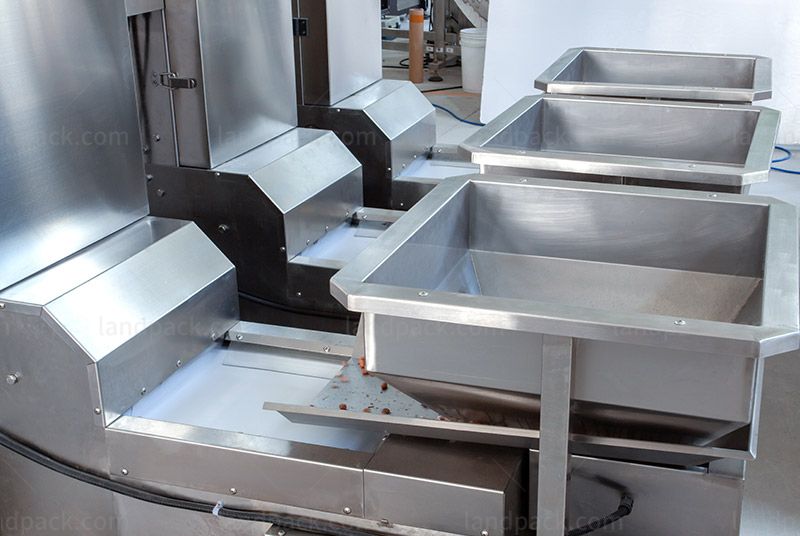

1. Z-elevator deliver different materials separately

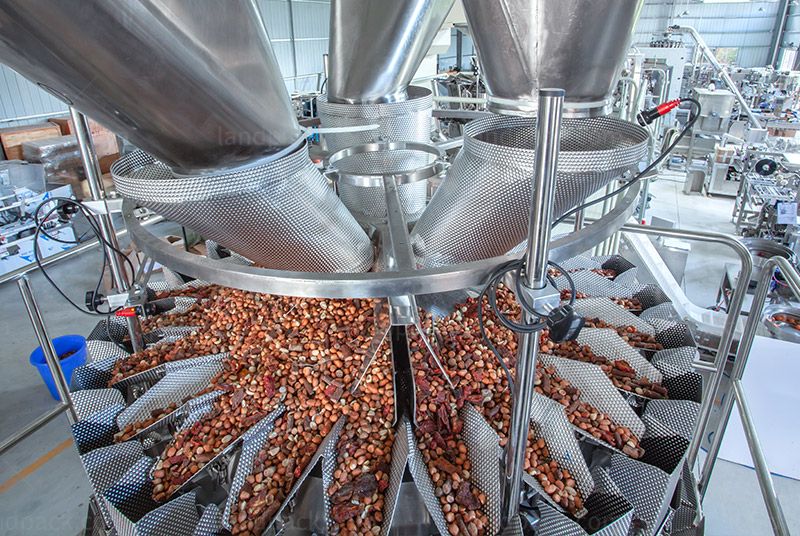

2. Multi-Head Weigher Measure Weight
3. Take the bags
4. Code printing
5. Open zipper and bag
6. Filling
7. Pushing
8. Nitrogen Filling
9. Sealing
10. Finished Product Conveyor
| Model | LD-8200 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| Size | W: 70-200 |
| Filling range | 10-1000g |
| Packing speed | 40-60 bags/min (speed is determined by the product filling quantity) 25-40 bags/min (for zipper pouch) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm*1570mm*1700mm（L*W*H） |
| Workflow | 1. Giving bag, 2. Coding date(option), 3. Open zipper, 4. Open the top and bottom, 5. Filling, vibrating (option), 6. The filling product is integrated by vibration, 7. Exhaust(option), closing zipper, sealing, 8. Forming and output |
After receiving your inquiry,We will send you the quotation as soon as possible.
