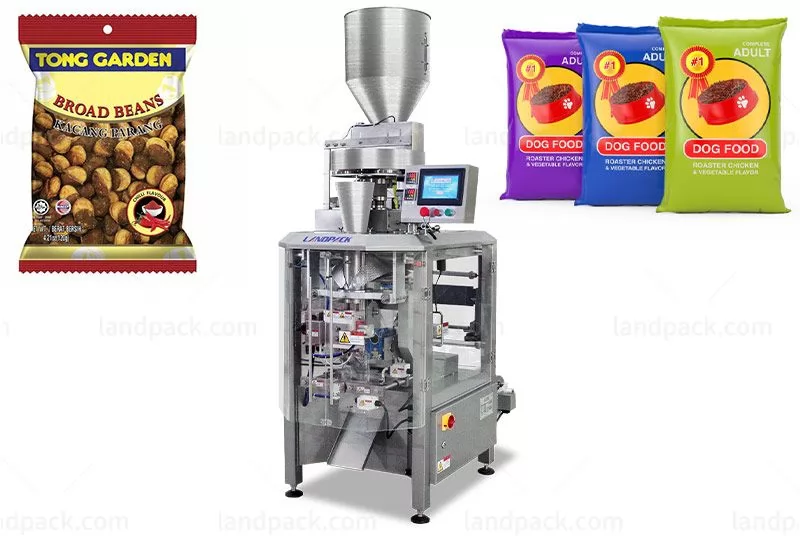

High Speed Dry Food Packaging Machine With Measuring Cups Equipment LD-320SF

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for packing for all kinds of grain material, sheet material, strip material and abnormity material which such as dry food, candy, melon seeds, chips, peanuts, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, cornp.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:High Speed Dry Food Packaging Machine With Measuring Cups Equipment LD-320SF

1. The whole machine adopts 3 servo control system, the machine runs smoothly, the action is accurate, the performance is stable, and the packaging efficiency is high;

2. The whole machine adopts 3mm&5mm thick stainless steel sheet metal processing and assembly, running smoothly; and the core components are specially optimized design, and the packaging speed is fast;

3. The equipment adopts servo-driven film pulling and unwinding to ensure precise film pulling and neat and beautiful packaging bags;

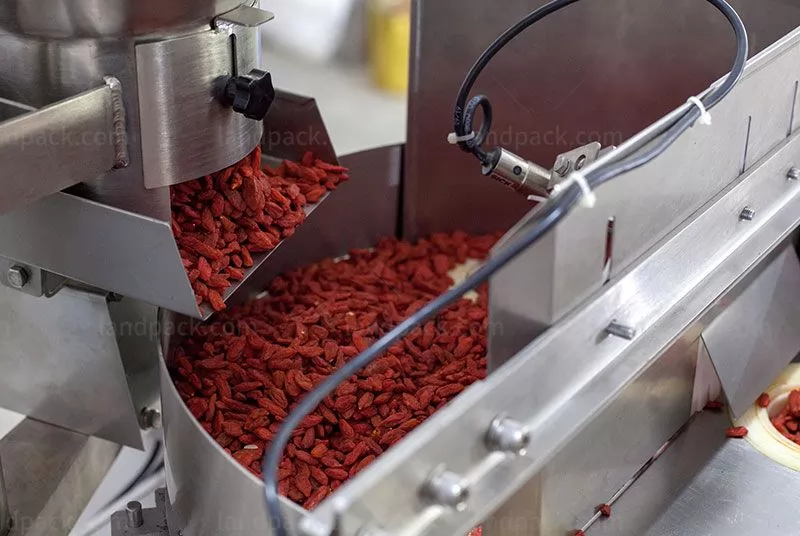

4. It can be matched with combination weigher, screw, measuring cup, drag bucket, liquid pump to achieve accurate and efficient measurement; (the above functions have been standard in the packaging machine program)

5. The equipment accessories adopt domestic/international famous brand electrical components, and have been tested by many years of market practice to ensure more stable and durable performance;

6. The design of the whole machine complies with GMP standards and has passed CE certification.

ModelLD-320SF
Capacity20-100 bag/min
Bag sizeL:50—170mm, W:50—150mm
Film width120mm—320mm
Film thickness0.05—0.12mm

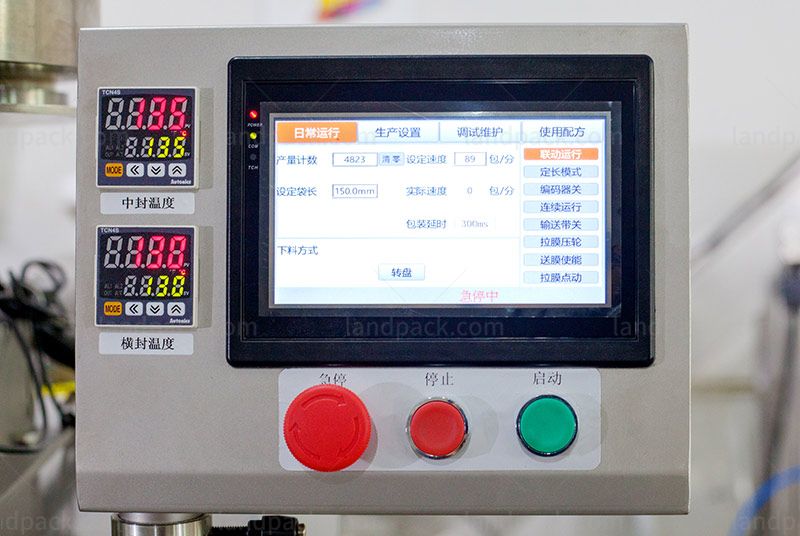

Control systemPLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
Power supply1N+PE/50HZ/AC220V  4KW
Airconsumption0.6—0.8Mpa, 0.3—0.5㎥/h
DimensionL1350*W900*H1400mm
Equipment MaterialMain body 3mm thickness 304 stainless steel frame
Weight350kg

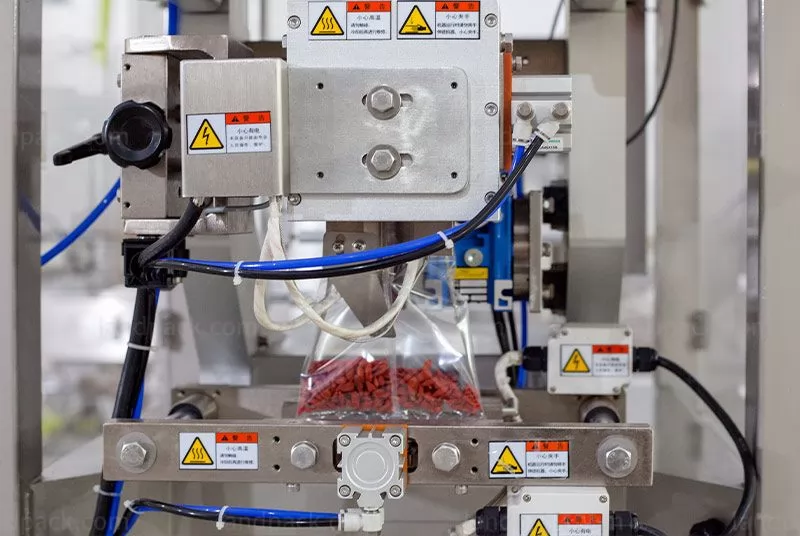

Description of Main Packaging ProcessPulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
