Application:

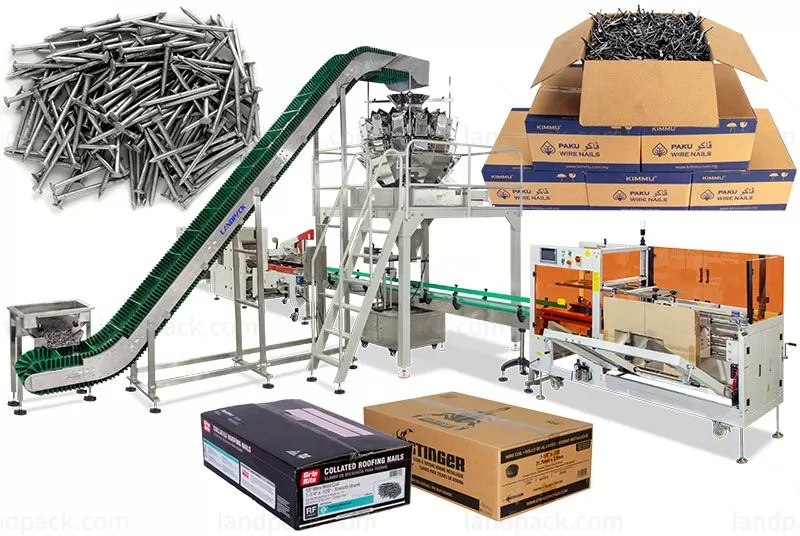

Automatic accessories screw nut nail carton box filling line with shrink wrap machine is suitable for all kinds of granular and solid materials, such as fasteners, hardware, pin, rivet, bolt, furniture fittings, buttons, nuts, screws, nails, etc, and can be flexibly selected and configured according to the materials.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

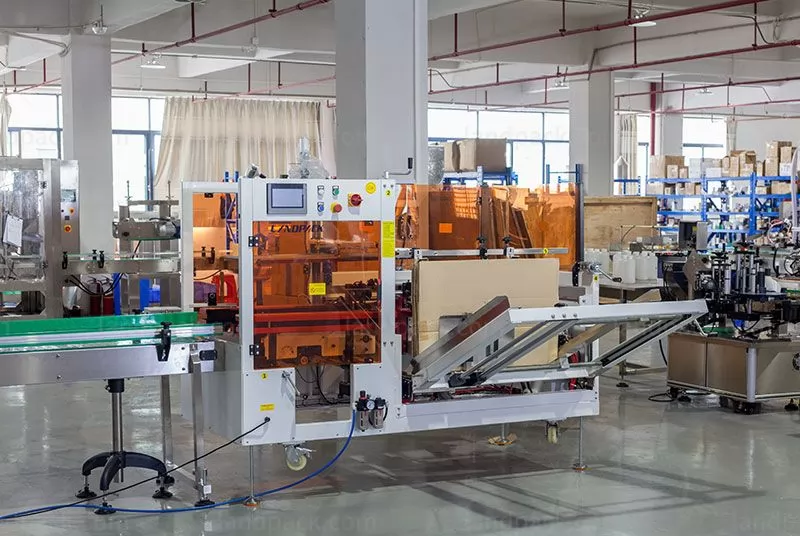

Fully Automated Box Opening and Sealing: Our system eliminates the need for manual folding and sealing of boxes, streamlining the packaging process.

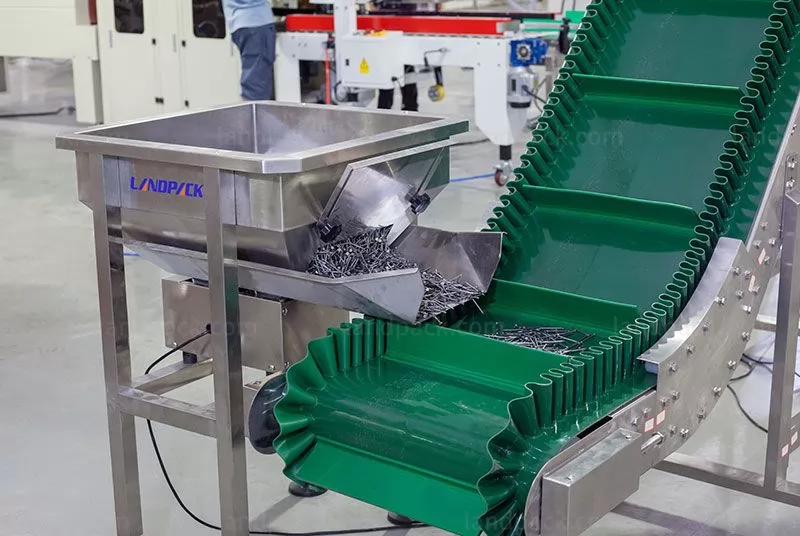

Efficient Skirt Hoist for Nail Conveyance: With our automated skirt hoist, nails ranging from 2cm to 15cm can be lifted and conveyed at a rate of 3m³ per hour.

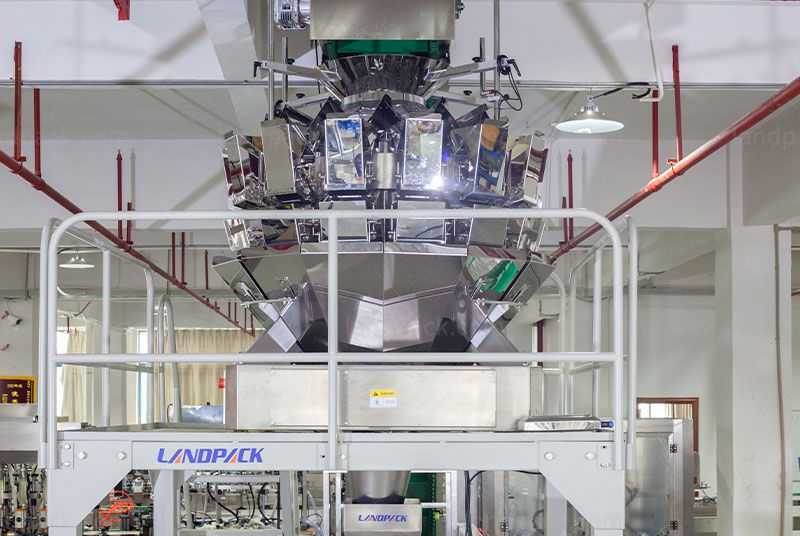

Accurate Hardware Combination Scale: Our 14-head, 4L hardware combination scale ensures precise measurements for nail quantities ranging from 1kg to 25kg.
Intelligent Nail Filling Line: Our advanced system automatically recognizes and detects boxes, seamlessly filling them with nails without any manual intervention.

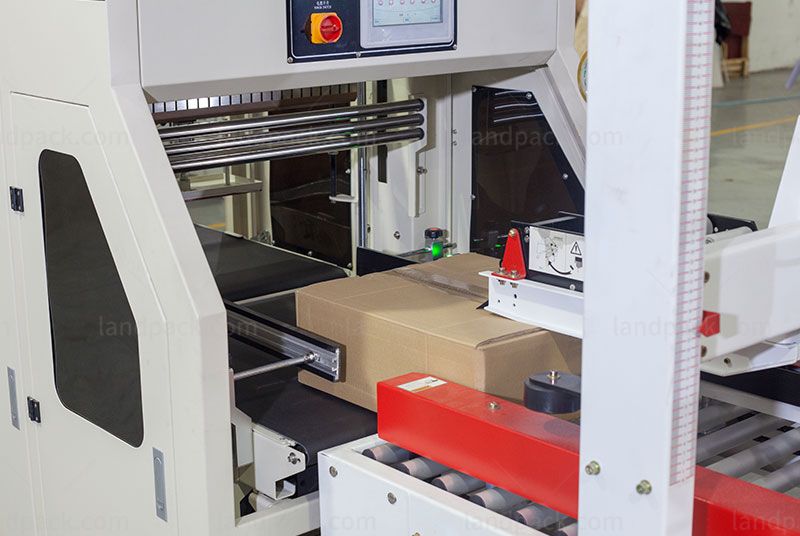

Hassle-Free Automatic Sealing: Say goodbye to manual sealing! Our automatic sealing machine effortlessly folds and seals boxes, saving time and effort.
Secure Sleeve Film Packaging: By employing sleeve film packing technology, our system tightly wraps the carton, enhancing box stability and protection during transportation.
Model | LD-14 | |
Filling Range | 10-2000g (Customizable) | |
Filling Speed | 120 pcs/min | |
Measurement accuracy | ±0.3-1.5% | |
Power | 220V, 50Hz, 1 KW | |
Working pressure | 0.6-0.8MPa | |
Weight | 400kg | |
Size | L4002*W2694*H2250(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
