Application:

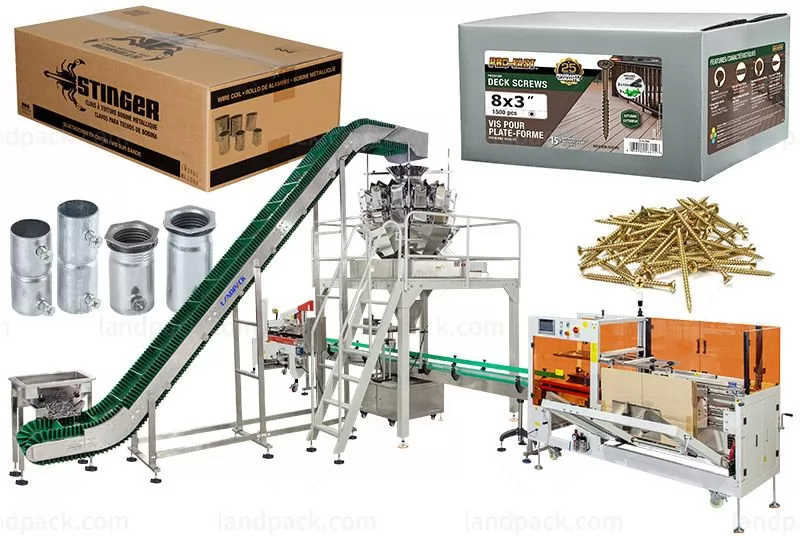

Suitable for carton box packing of various hardware, fasteners, and auto parts. Landpack's fastener packaging machine shares a set of loading and weighing systems, saving both cost and space.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Automated Box Opening and Sealing: Streamlines packaging by eliminating manual folding and sealing.

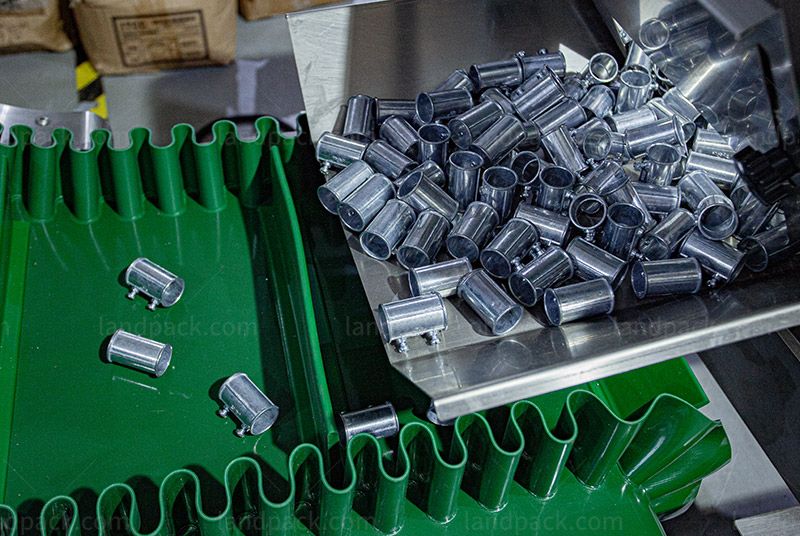

2. Efficient Nail Conveyance: Lifts and transports fasteners at 3m³ per hour.

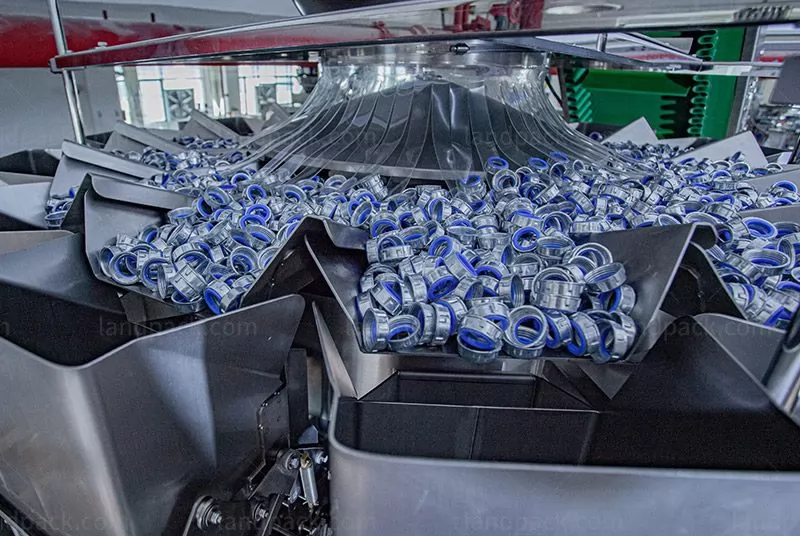

3. Precise Hardware Scaling: 14-heads scale ensures accurate fastener quantities from 1kg to 25kg.

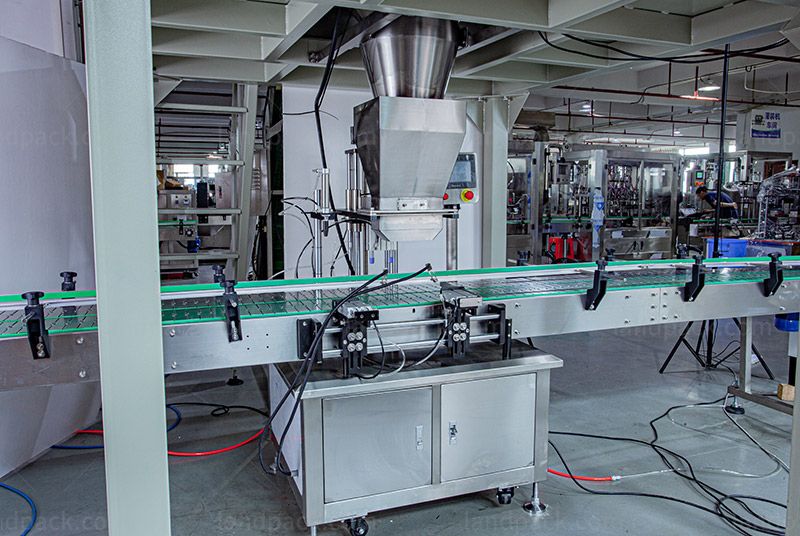

4. Smart Nail Filling Line: Automatically detects and fills boxes with fasteners.
5. Automatic Sealing: Folds and seals boxes without manual effort.
| Carton Erecting Machine | |
| Carton Opening Speed | 10-12 cartons/min |
| Carton Size Range | L: 270-450*W: 150-400*H: 100-400mm (Min and Max cannot exist at the same time) |
| Power Supply | 220V, 50/60Hz, 1 Phase |
| Power | 240W |
| Adhesive Tape width | 48/60/75mm |
| Carton Storage Quantity | 80-100pcs (800-1000mm) |
| Air Consumption | 450NL/min |
| Air Compressing | 6kg/cm³ |
| Discharge table height | 600+30 mm |
| Machine Size | L2100*W2100*H1450mm |
| Machine Weight | 450Kg |
| Fastener Filling Machine | |
| Product Name | Combined Scale Particle Filling Machine |
| Model | LD-14 |
| Filling Range | 10-2000g (Customizable) |
| Filling speed | 120 PCS/min |
| Measurement accuracy | ±0.3-1.5% |
| Power | 1 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 400kg |
| Size | L4002*W2694*H2250(mm) |
| Carton Box Case Sealer | |
| Voltage | 220V, 60HZ |
| Table Height | 620-900mm |
| Tape | W: 48-79mm |
| Carton Size | L: 200-600*W: 150-500*H: 150-500mm |
| Machine Weight | 165KG |
