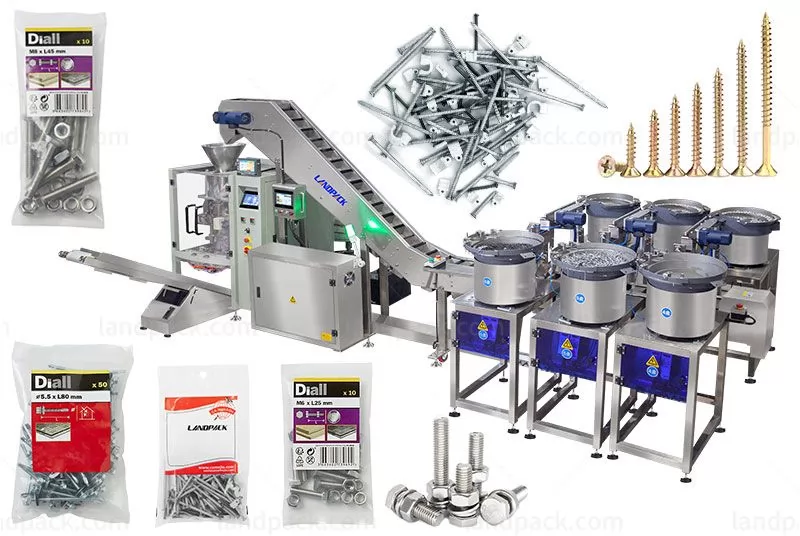

Full Automatic Fastener Gasket Screw Nut Hardware Bag Fill And Seal Counting Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

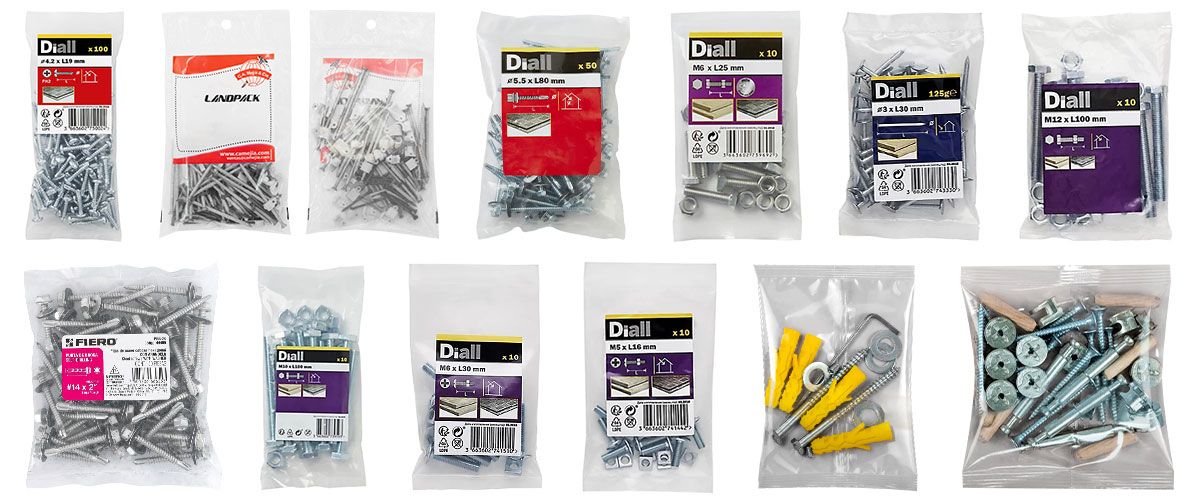

-Screw, bolt, washer, wood dowel, and other kinds of regular shape furniture parts.
-Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
-Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
-Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
-Plastic, pipe fittings (Pipe, Joint, etc.)
-Clothes parts (Button, Slider, etc.)
-Toys (Toy Building Brick, Dice, etc.)
-Stationery (Mark, Pen, Clip, etc.)
-Other regular shape parts
Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificates for certain series of our packaging machines (ask our sales team for details).

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Foil bag/back sealing bag/3 side seal bag material
4. Foil bag/back sealing bag/3 side seal bag dimension

Packing Exambers:hardware fittings counting packing machine

1. Flexible Machine suits for different hardware sizes.

2. Can be packaged separately or mixed with 6 different hardware packaging.

3. Stable and high-speed running.

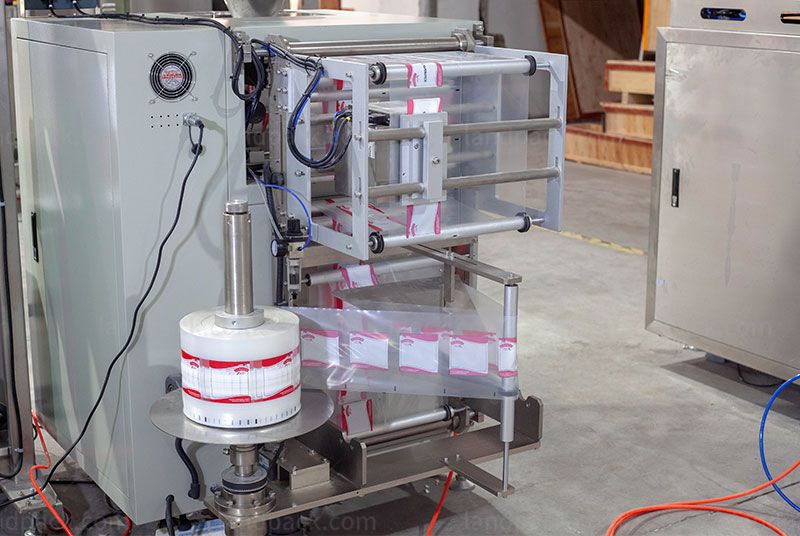

4. Roller film spreading mechanism, PE film transverse sealing mechanism.

Model
LD-420
LD-520
LD-720
LD-900
Film width
Max.420mm
Max.520mm
Max.720mm
Max.900mm
Bag length
80-300mm
80-350mm
100-500mm
100-600mm
Bag width
60-200mm
100-250mm
180-350mm
260-430mm
Film roll diameter
Max.320mm
Max.320mm
Max.320mm
400mm
Packaging rate
5-60 bags/min
5-60 bags/min
5-55 bags/min
5-20 bags/min
Range of measurement
150-1500ml
2000ml
4000ml
1-25L
Film thickness
0.04-0.08mm
0.04-0.12mm
0.04-0.12mm
0.04-0.12mm
Power
220V, 50/60Hz, 2kw
220V, 50/60Hz, 3kw
220V, 50/60Hz, 3kw
220V, 50/60Hz, 4.5kw
Machine size(L*W*H)
1217*1015*1343mm
1488*1080*1490mm
1780*1350*2050mm
2305*1685*2725mm
Machine quality
About 650kg
About 680kg
About 750kg

After receiving your inquiry,We will send you the quotation as soon as possible.
