Application:

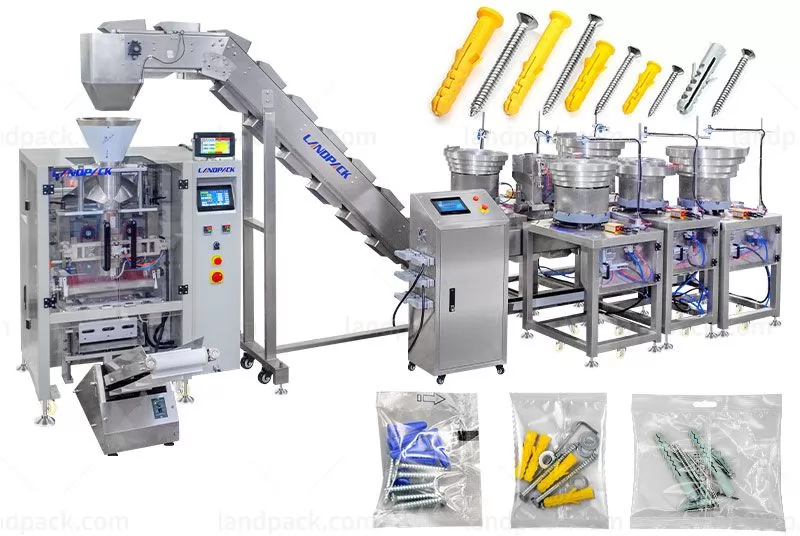

This weighing and counting packing machine is suitable for various hardware parts and plastic parts. For example hardware parts, nuts, bearings, bolts, plastic parts, screws, fasteners, bearings, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

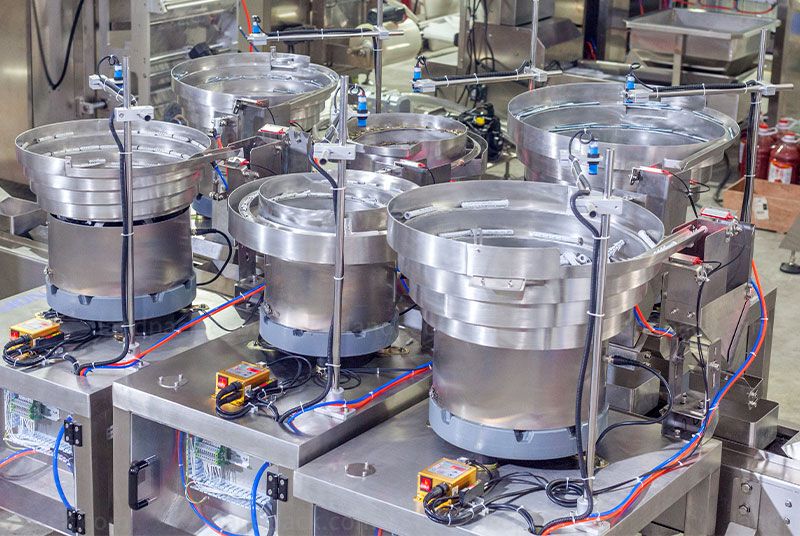

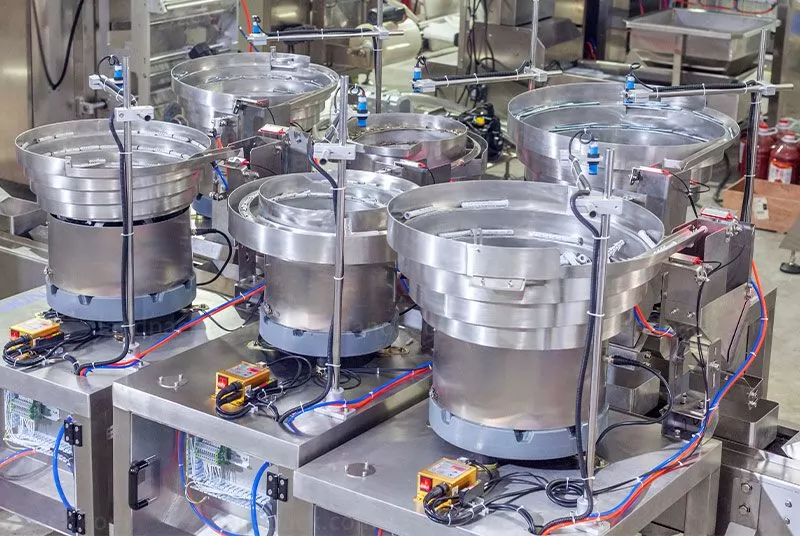

1.Vibration bowl counting, the quantity can be adjusted.
2.Can be packaged separately or mixed with 6 different hardware packaging.
3.No material, the machine will stop automatically.
4.No material will alarm, can check by touch screen.
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 2kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 4.5kw |
Machine size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 650kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
