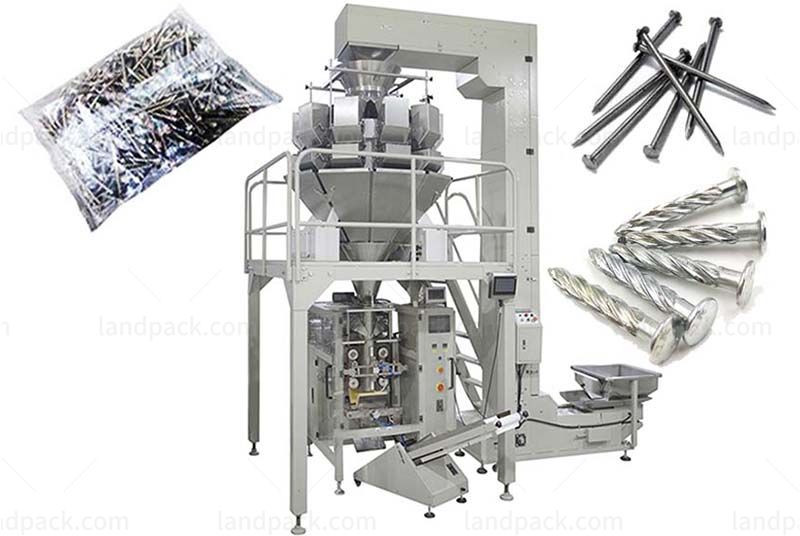

Full Automatic Hardware/ Fastener/ Nail Packing Machine With Multihead Weigher

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for high-precision bag weighing and packaging of various hardware and fasteners, such as various sizes of nails, screws, nuts, bolts, rivets, buttons, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Full Automatic Hardware/ Fastener/ Nail Packing Machine With Multihead Weigher

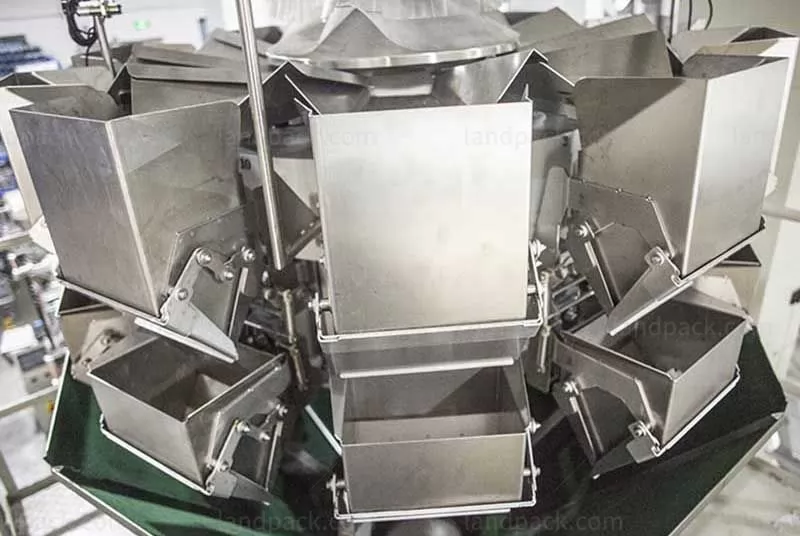

Multi-head combined weigher, improve metering speed and accuracy.

7 inch touch screen, easy operation and multiple language for choice.

Imported PLC system, machine performance is stable and easy for parameters adjusting.

With a memory function for storage ten sets of parameters. Easy to change packing product.

Separate PID temperature controller, suitable for various packing materials.

Multi-union roll film pulling system make film running more smooth.

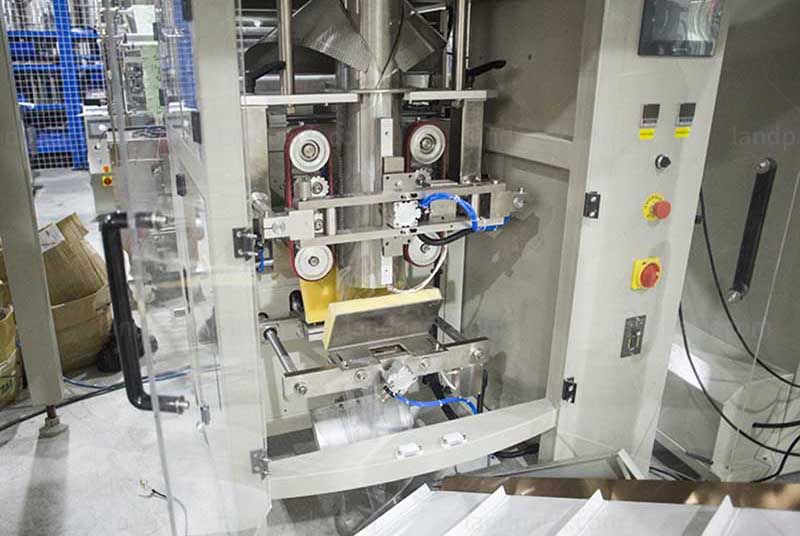

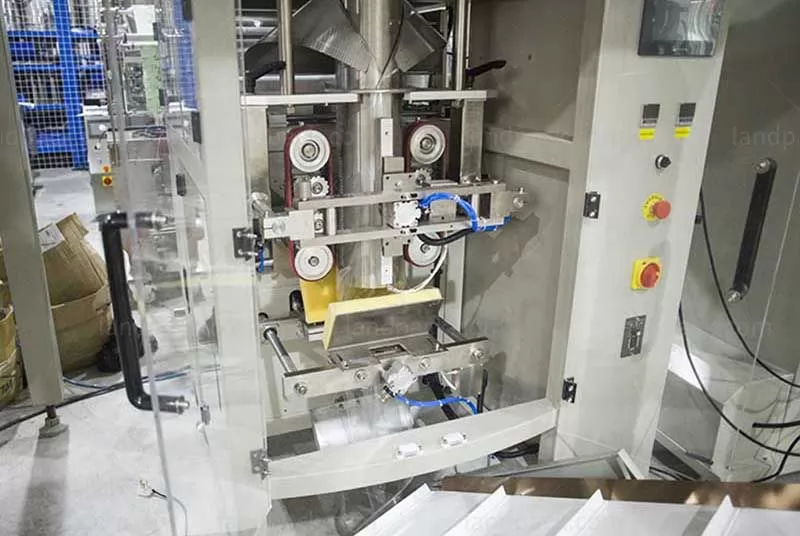

Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

All parts in contact with materials are made of special materials, so the machine will not be scratched by the materials and is durable.

Low loss, labor saving, easy for operation and maintenance.

ModelLD-F420ALD-F520ALD-F720ALD-F900ALD-F1050ALD-F1200A
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm

After receiving your inquiry,We will send you the quotation as soon as possible.
