Furniture Fittings Counting Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
- Screw, bolt, washer, wood dowel, and other kinds of regular shape furniture parts.
- Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
- Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
- Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
- Plastic, pipe fittings (Pipe, Joint, etc.)
- Clothes parts (Button, Slider, etc.)
- Toys (Toy Building Brick, Dice, etc.)
- Stationery (Mark, Pen, Clip, etc.)
- Other regular shape parts

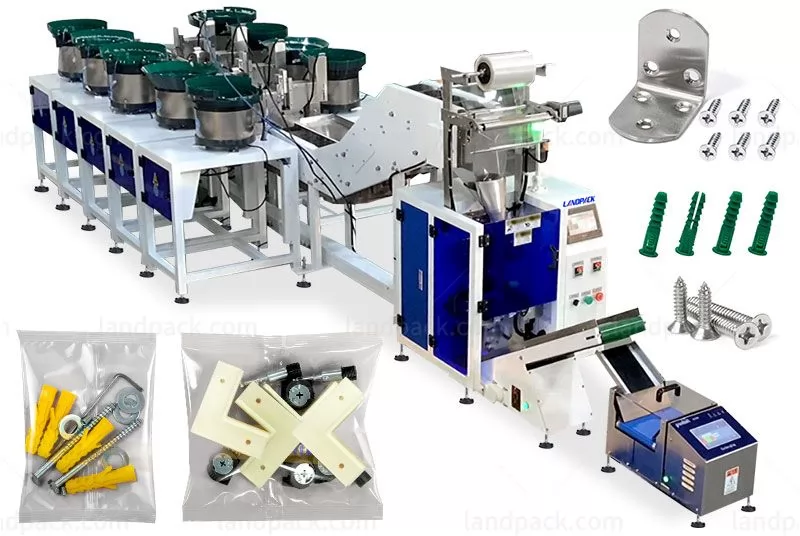

Our automatic packing machines can count and pack the same item or mixed items into the package.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Foil bag/back sealing bag/3 side seal bag material
4. Foil bag/back sealing bag/3 side seal bag dimension

Packing Exambers:automatic counting packing machine

1. Application: Screw, bolt, washer, wood dowel, and other kinds of regular shape furniture parts.

2. Adopting packing counting and fiber optics re-inspection or completed fiber optics counting, suitable for mixing packaging for 1~40 varieties of items.

3. Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer, labeling machine, transfer conveyor, and weight checker.

4. Automatic ordering, counting, packing, printing, etc. Easily adjust the number of screws in the bag, and set the quantity of bags that you need, when met, the machine will be stopped automatically.

ModelLD-LS-300LD-LS-500
Packing sizeL: 30-180mm, W: 50-140mmL: 50-300mm, W: 90-250mm
Max film width320mm520mm
Packing materialOPP, CPP, Laminated film
Air supply0.4-0.6 MPa
Packing speed10-50 bags/min (Depending on the counting quantity and material size)
PowerAC220V or AC 380V  2KW-6KW
Machine sizeCustomized size

After receiving your inquiry,We will send you the quotation as soon as possible.
