Application:

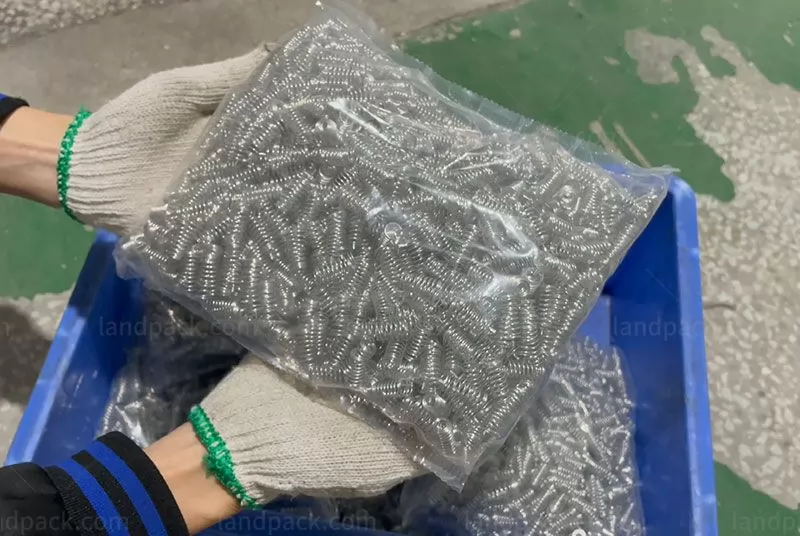

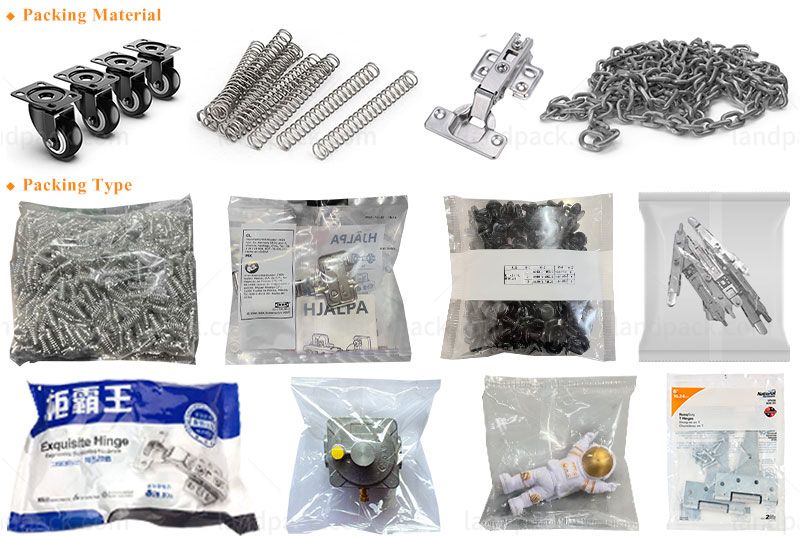

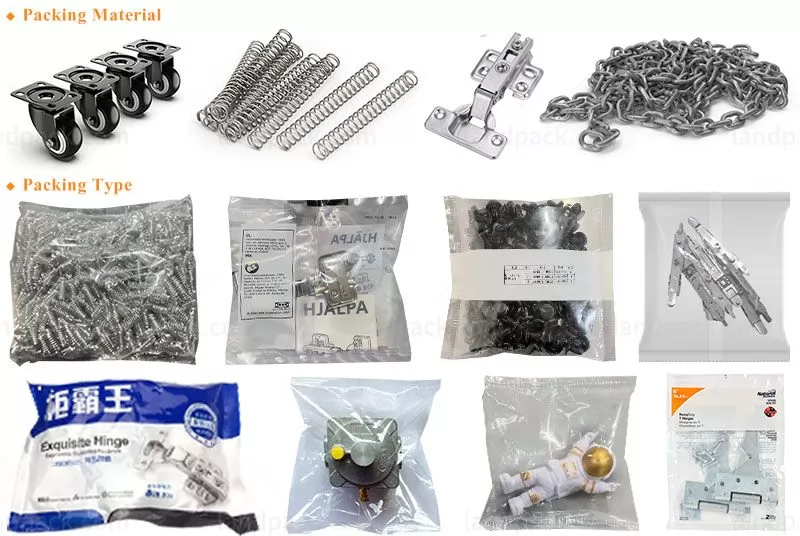

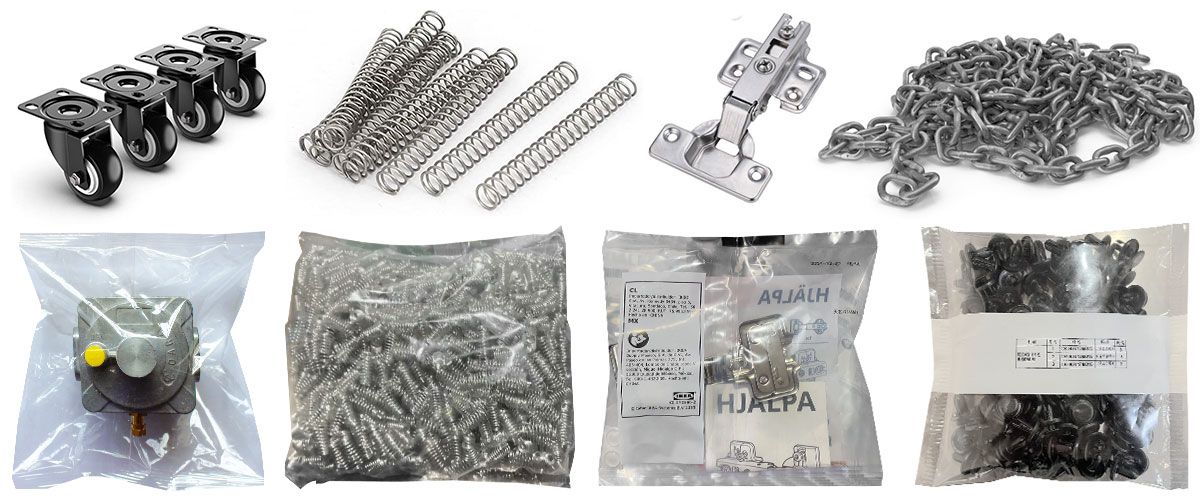

Suitable for automatic counting and packing machine for screws, nails, bolts, nuts, gaskets, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nuts, gaskets, hardware, and plastic parts, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Custom-tailored vibration plates for screw samples, liner vibration arrange devices and high-precision counting devices.

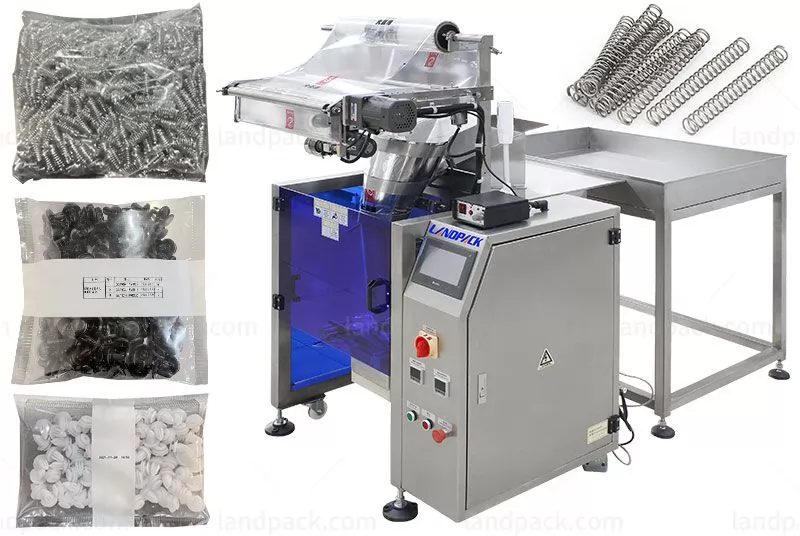

The electrical belt semi-automatic packaging machine adopts manual counting and feeding. This working belt is easy to convey. The machine can package different shapes of materials or mix different materials.

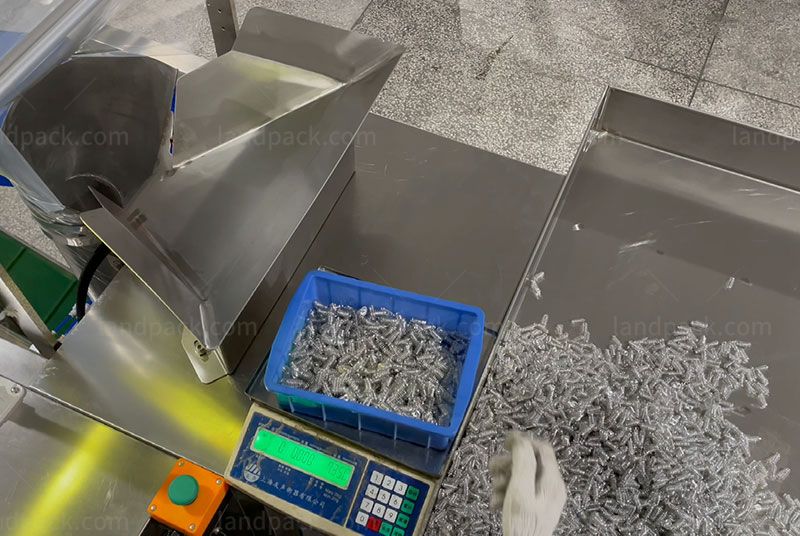

Vibration feeding screw to count, counting accurately.
Step motor control combines with the coding tracking system, cutting right.
The single-chip microcomputer control system, self-diagnosis, automatic stop when a fault, and automatic alarm.
Auto display package quantity, easy operation, and safety.

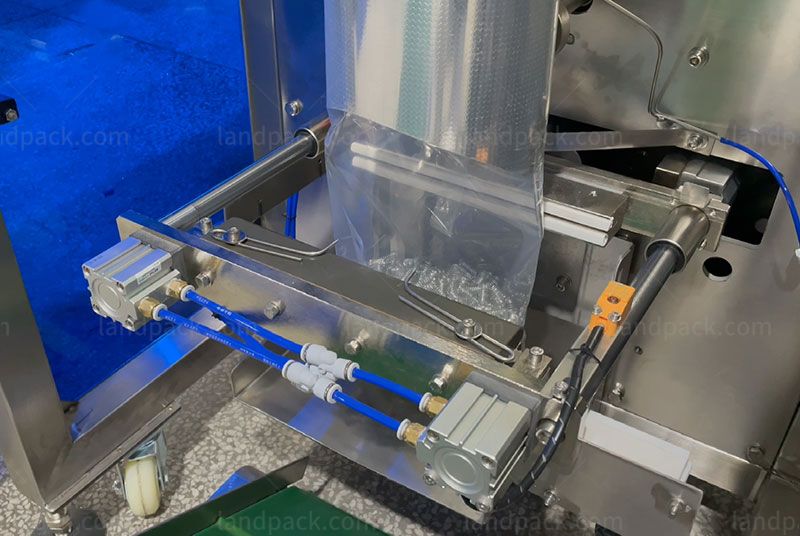

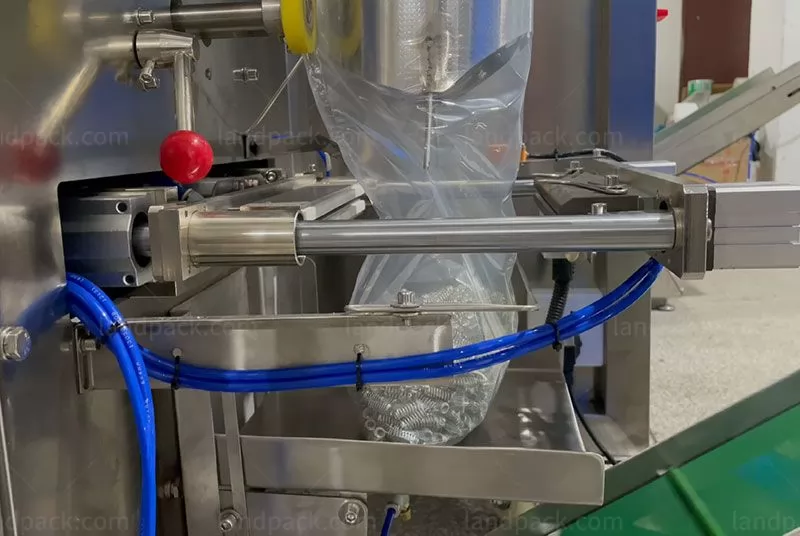

The machine can complete the functions of automatic bag making, measuring, filling, sealing, cursor positioning, cutting, counting, stepless speed control, etc.
Photoelectric tracking system, automatic track the mark on the film.
| Model | LD-LS-300 | LD-LS-500 |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 90-250mm |
| Max film width | 320mm | 520mm |
| Packing material | OPP, CPP, Laminated film | |
| Air supply | 0.4-0.6 MPa | |
| Packing speed | 10-50 bags/min (Depending on the counting quantity and material size) | |
| Power | AC220V or AC 380V, 2KW-6KW | |
| Machine size | Customized size | |
After receiving your inquiry,We will send you the quotation as soon as possible.
