Application:

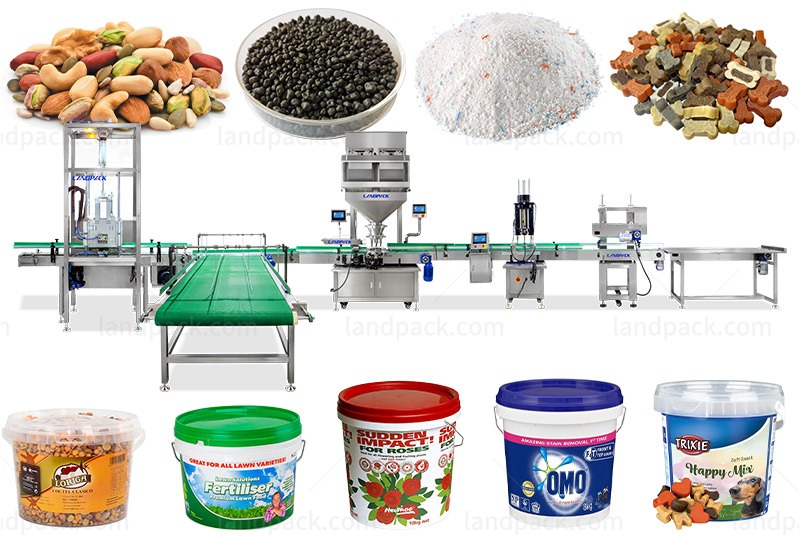

Widely used for packaging fertilizer, horticultural fertilizer, fruit and vegetable fertilizer, coffee beans, frozen foods, cookies, cereals, nuts, flowers, candy, and more, ensuring efficient and precise packaging.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Fully Automatic Operation – The filling line automates container feeding, weighing, filling, cap feeding, and capping, reducing labor costs and increasing efficiency.
2. Flexible Capacity – Supports filling from 1L to 10L, allowing quick production switching to help customers reduce costs and improve productivity.
Workflow:

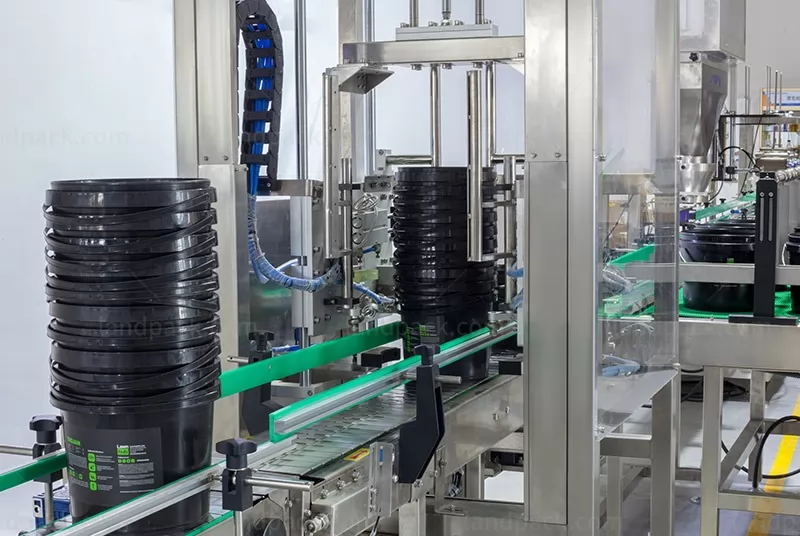

1. Auto feeding the containers

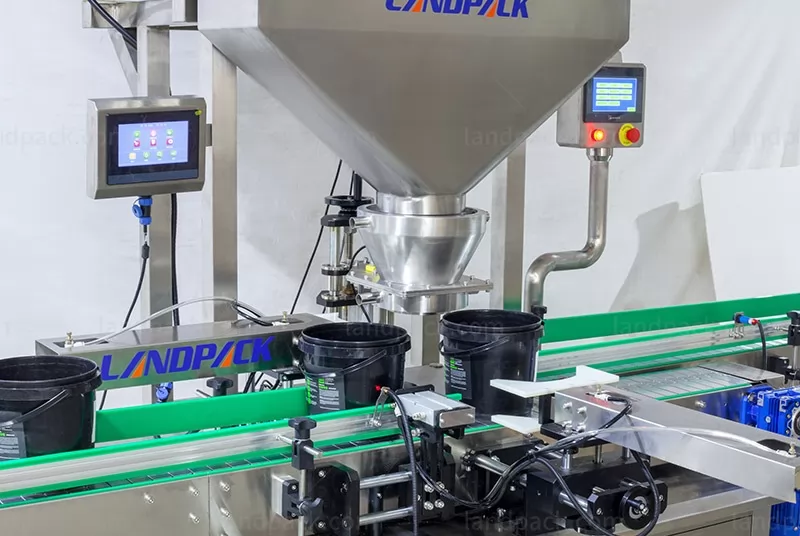

2. Auto weighing and filling
3. Auto feeding the caps

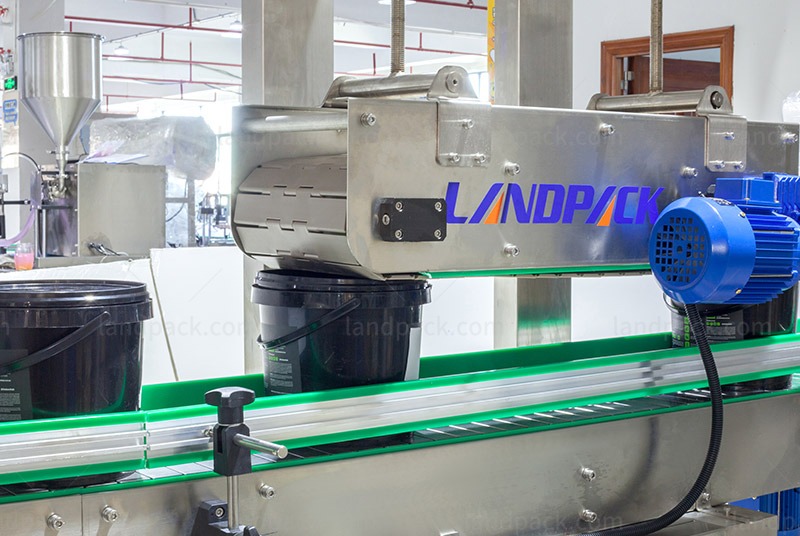

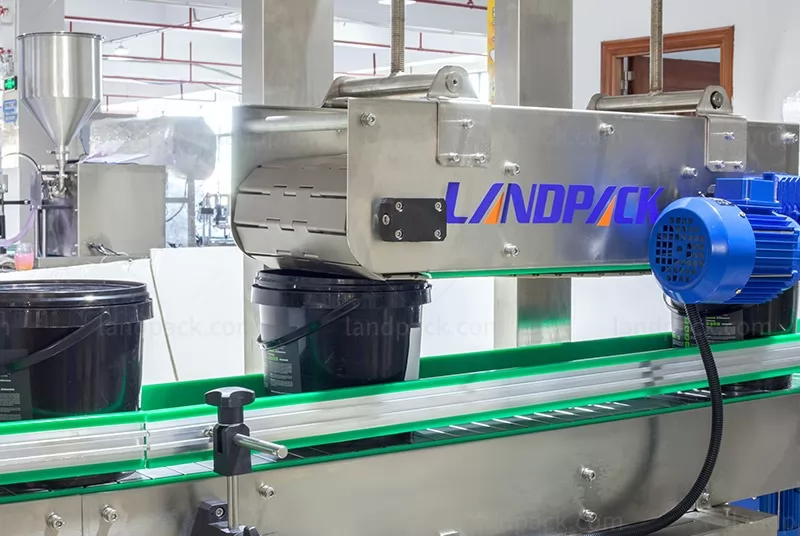

4. Pressing and capping
5. Output collecting
Automatic Bottle feeder | |
Power Supply | 220V/110V, 50-60Hz, 200W |
Turntable Diameter | 800mm |
Suitable Bottle Diameter | 40-130mm |
Suitable Bottle Height | 30-200mm |
Working Speed | 40-60 bottles/min(depending on bottle size) |
Package Size | 1230*1010*1260mm |
Gross Weight | 141kg |
Linear scale filling machine | |
Model | LD-LS01 |
Filling Range | 1-10KG (Customizable) |
Weighing precision | +1-3g |
Filling speed | 15-25 PCS/min |
Conveyor belt length | 2m |
Size | L2504*W1000*H2321mm |
Hopper capacity | 3000ml |
Material arrangement | 20 kinds |
Maximum ingredient category | 2 kinds |
Power | Single phase AC220V 50/60Hz |
Automatic Caps Feeder | |
Model | LD-VTYG01 |
Voltage | 110V/220V |
Capacity | 15-18 bottles/min |
Applicable Container | L: 40-110mm, W: 40-110mm, H: 40-110mm |
Applicable Lid | Customizable |
Packing Size | About 2080*940*1730mm |
Gross Weight | About 261kg |
Automatic Caps Pressing Machine | |
Cover method | Elevator cap sorting |
Capping form | Chain piece type capping |
Application bottle | According to the customer's product |
Capping speed | 30-50 bottles/min |
Capping voltage | 1ph AC 220V 50/60Hz |
Air pressure | 0.6-0.8MPa |
Dimension | 1300(L)*850(W)*1660(H)mm |
Packing size | 1400(L)*950(W)*1760(H)mm |
Machine weight | About 400KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
