Application:

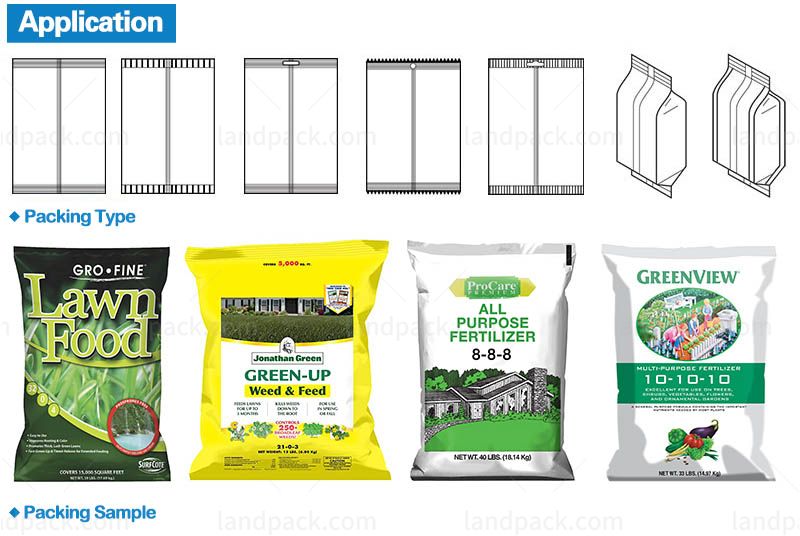

This machine can be used for different fields, and can also pack granules, powder, paste, liquid objects. like daily chemical(fertilizer, vermicompost, shampoo) chemicals(silica gel, desiccant), agricultural products(rice seeds, vegetable seeds, sunflower seeds, crispy rice, potato, vegetables) seasoning (sugar, salt), industrial parts(small screw, screw cap), and other fields like, tea etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Pacakaging Exambers:
Chinese or English display(Language can be set according to customer requirements).
Complete set of equipment control, automatic control of feeding, packaging without material, stable operation of equipment and low loss.

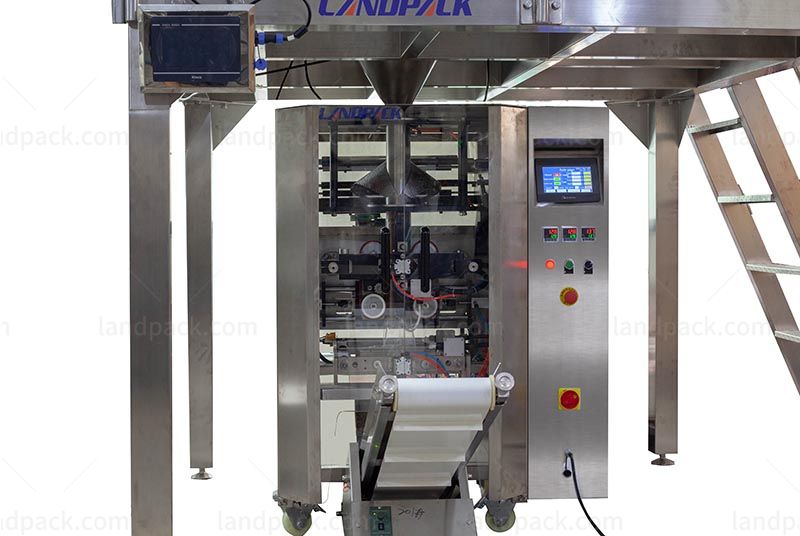

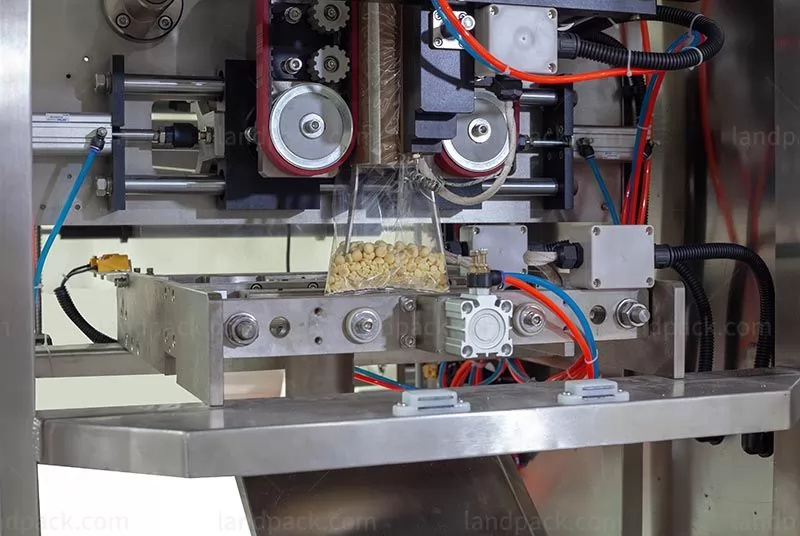

The machine complete the whole process of automatic feeding, measuring, filling, bag making, vacuum, date printing and finished product output automatically.
LD series packaging machine is the earliest mature machine, and has the largest sales volume in domestic and export in more than ten years.
Material conveyor design is simple, smooth and quiet.

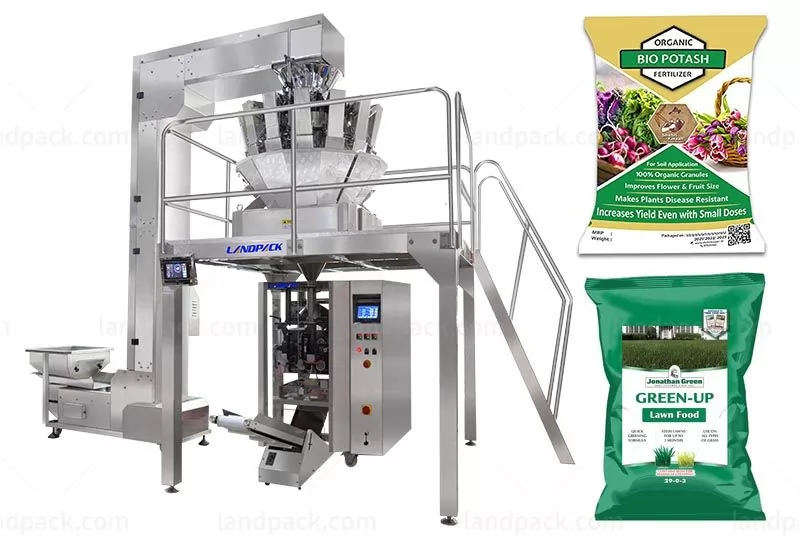

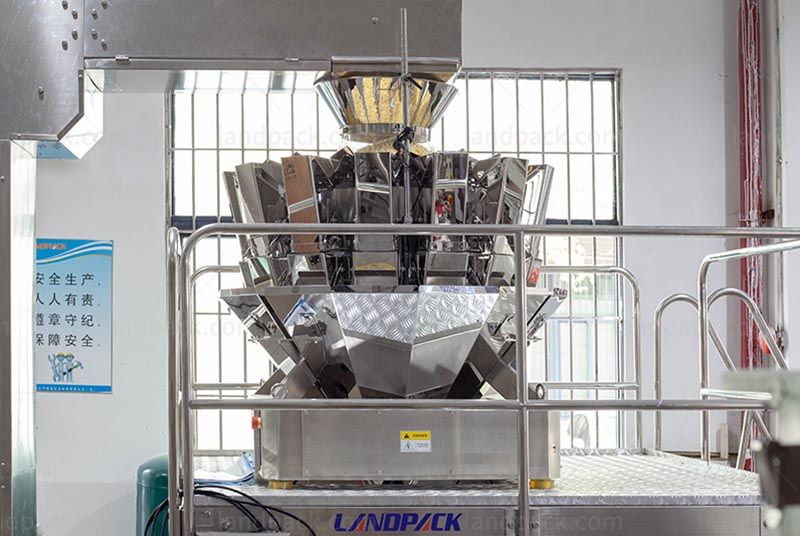

From the design to the rational use of materials, the platform is stable and safe, so that the accurate measurement of the combined scale will not be affected.
The product can be connected before the production line, the finished product can be rechecked directly, the metal inspecting machine can test it. Then the carton packaging line can be connected to form a complete package line, which saves a lot of cost.
Type | LD-420 | LD-520 | LD-620 |
Film width | Max.420mm | Max.520mm | 150-Max.620mm |
Bag length | 80-300mm | 60-400mm | 60-450mm |
Bag width | 60-200mm | 100-250mm | 65-300mm |
Film roll diameter | Max.600mm | Max.600mm | Max.600mm |
Packing speed | 5-60bag/min | 5-40bag/min | 5-35bag/min |
Making-bag volume | 1000ml | 2000ml | 3000ml |
Film thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power Supply | 220V,50/60Hz,3KW | 220V,50/60Hz,3KW | 220V,50/60Hz,3.2KW |
Machine size (L*W*H) | (L)1217X(W)1015X(H)1343mm | (L)1488X(W)1080X(H)1490mm | (L)1488X(W)1180X(H)1550mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
