Application:
It suitable for fertilizer, organic fluid fertilizer, mouthwash, soy sauce, chemical, alcohol, cleaning material, agrochemical, pesticides, food and beverages, syrup, dairy, juice, cosmetic and relevant.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
304 Stainless steel heavy duty stainless steel welded C frame.
All parts contact with material is SUS316, sanitary, Teflon, Viton and hoses per your requirements.
Real time adjustability.

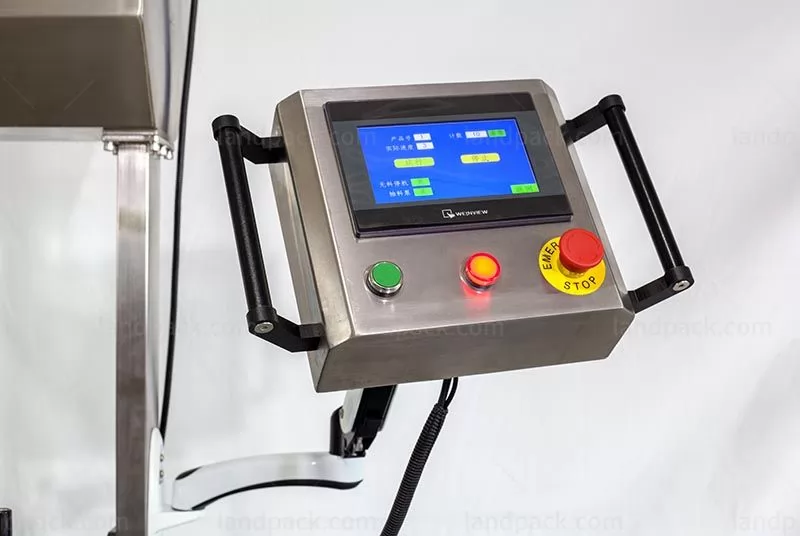

No bottle no fill, PLC control
Accurate filling volume, within ±1% and a total bottle counter.
Special seals or hoses by order.
Blocked nozzles for products that tend to string and drip.
Bottle mouth localizer.

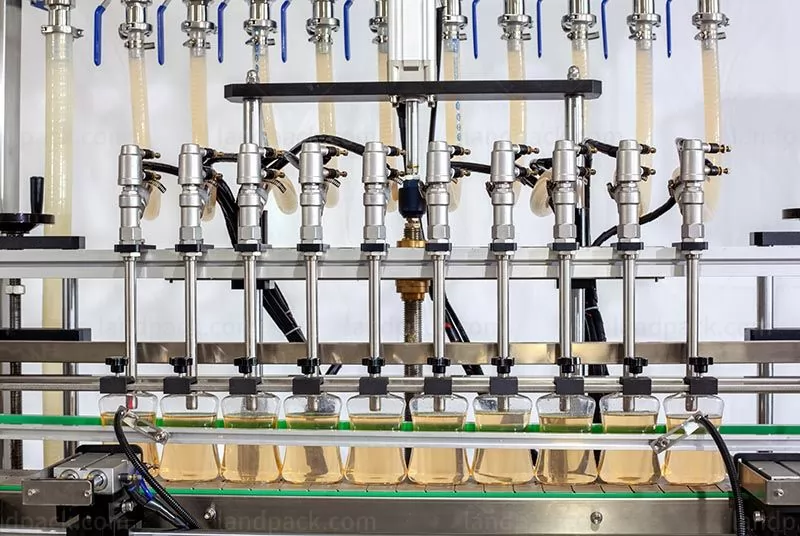

The filling head can also be added to suit your special need.
| Model | LFZ-10 |
Filling volume | 100-5000 ml (Can be customized according to your requirements) |
Filling speed | 2000-2200b/h for 500ml |
Filling precision | 1ml |
Filling head | 2/4/6/8/10(Can be customized according to your requirements) |
Bottles size | 40-100mm(diameter); 80-300mm (height) |
Air pressure | 0.6-0.8Mpa |
Weight | 700kg |
Voltage | 220V/110V; 50hz/60hz |
After receiving your inquiry,We will send you the quotation as soon as possible.
