Application:
This liquid bottle filling line can be customized to fill various products, widely used in filling various daily chemicals liquid products, such as liquid detergent, sanitizer, dish wash, paint, lubricating oil, hand soap, mouthwash, facial cleanser, face cream, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Liquid Material Pump: Delivers liquid to the filling machine hopper.

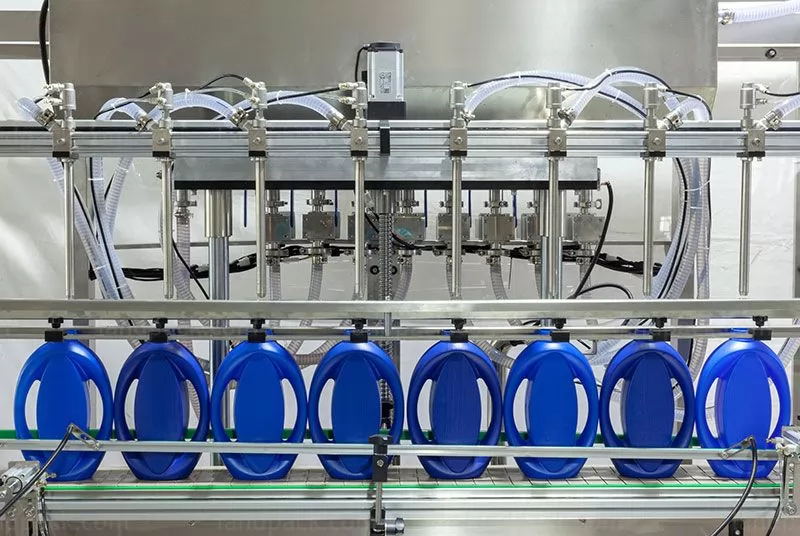

2. Gear Pump Filling System: Servo motor-controlled for precise metering and adjustable filling range.
3. Versatile Capping Machine: Accommodates various screw cap sizes with adjustable capping heads, no need for extra parts.

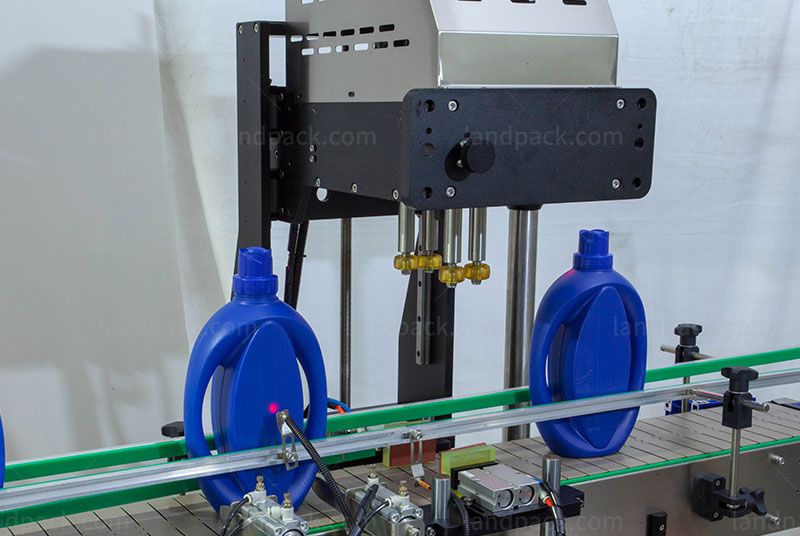

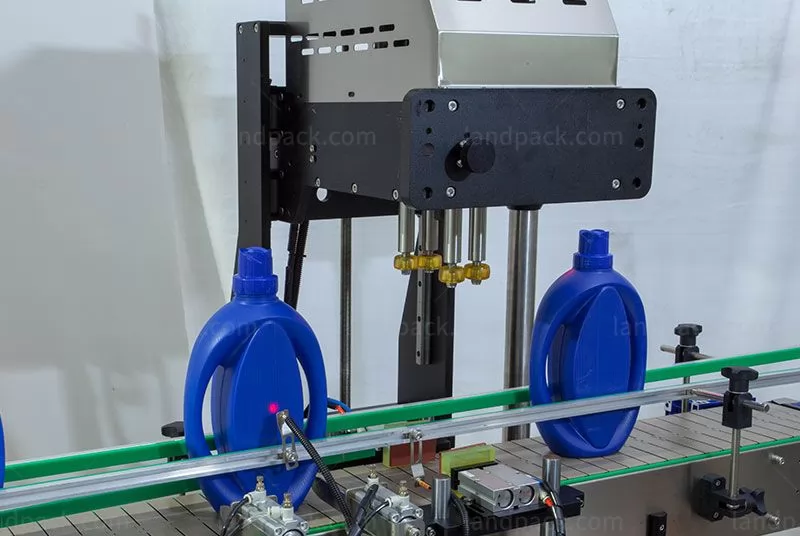

4. Bottle Sensor: Ensures no filling, capping, or labeling occurs if no bottle is detected.

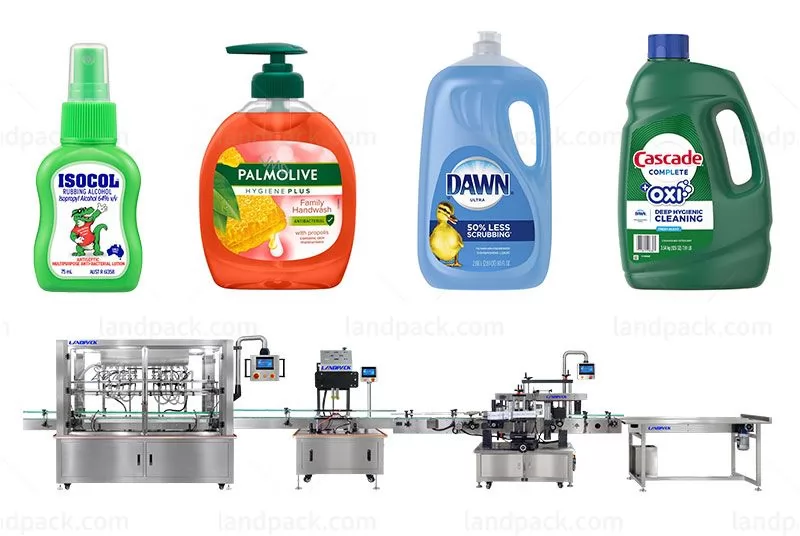

Workflow:
1. Liquiqd material pump
2. 8 heads gear pump filling machine
3. Cap feeder by hand
4. Autoamtic capping machine
5. Automatic double side labeling machine
6. Ribbon date printing
| 8 heads gear pump filling machine | |||
| Model | LFZ-08 | ||
| Filling Range | 50-1000ml(Customizable) | ||
| Filling Speed | 30-40 bottles/min | ||
| Measurement accuracy | ±1% | ||
| Power | 3.5 KW | ||
| Working power supply | 220V, 50Hz | ||
| Working pressure | 0.6-0.8MPa | ||
| Weight | 800kg | ||
| Size | L4000*W1320*H2090(mm) | ||
| Autoamtic capping machine | |||
| Model | LFX-JX-01 (Four wheel capping) | LFX-GS-150 (Eight wheel capping) | LFX-GS-250 (Six wheel capping) |
| Capacity | 20-50 bottles/min | 40-100 bottles/min | 30-80 bottles/min |
| Bottle cap diameter | Ф22mm-Ф80mm | Ф18mm-Ф80mm | Ф18mm-Ф80mm |
| Bottle diameter | Ф35mm-Ф140mm | Ф35mm-Ф140mm | Ф35mm-Ф140mm |
| Bottle sealing height | 38mm-300mm | 38mm-300mm | 38mm-300mm |
| Power | 1.5KW | 2KW | 1.5KW |
| Voltage | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ |
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa |
| Weight | 250kg | 350kg | 300kg |
| Dimensions | H3000*W800*L1600 mm | H3120*W1544*L2122 mm | H3100*W1244*L2122 mm |

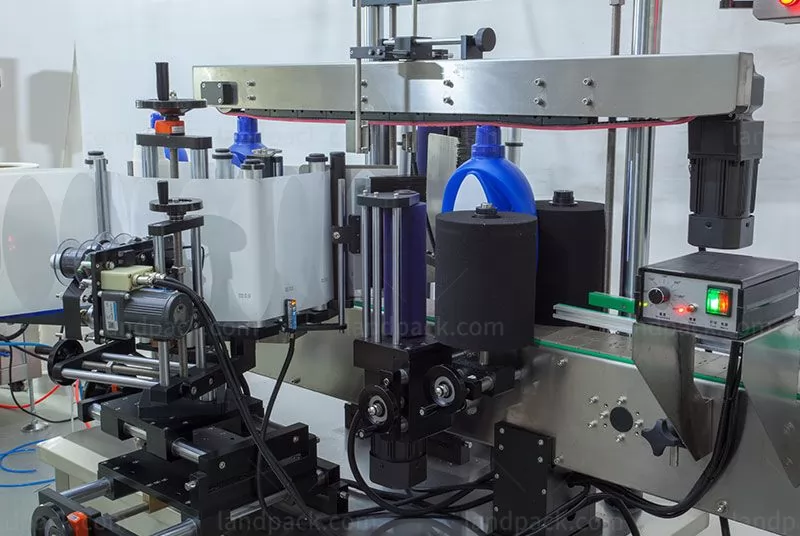

| Automatic double side labeling machine | |||
| Model | LFT-SM-00 | ||
| Labeling Speed | 10-40 bottles/min | ||
| Labeling Accuracy | ±1mm (Does not contain product and label errors) | ||
| Max Label Width | 200 mm | ||
| Applicable Product Size | H≤400mm, T≤100mm (Can be customized) | ||
| Applicable inner diameter of paper | Ф76.2 mm | ||
| Applicable outer diameter of paper | Max.Ф350mm | ||
| Air Source | 4-6KG 30L/min | ||
| Dimension | 3050*1450*1800 mm | ||
| Voltage | 220V 50Hz 3500W | ||
| Weight | 500 KG | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
