Application:
This liquid bottle filling line can be customized to fill various products, widely used in filling various daily chemicals liquid products, such as sanitizer, dish wash, paint, lubricating oil, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Raising the filling function to fill the easy foaming cleaning liquids stably.
2. The contact materials are made of acid-resistant and alkali-resistant hoses, fluorine rubber, and 316 materials.
3. The independent waterproof electrical box and the filling line have North American CUL certification.

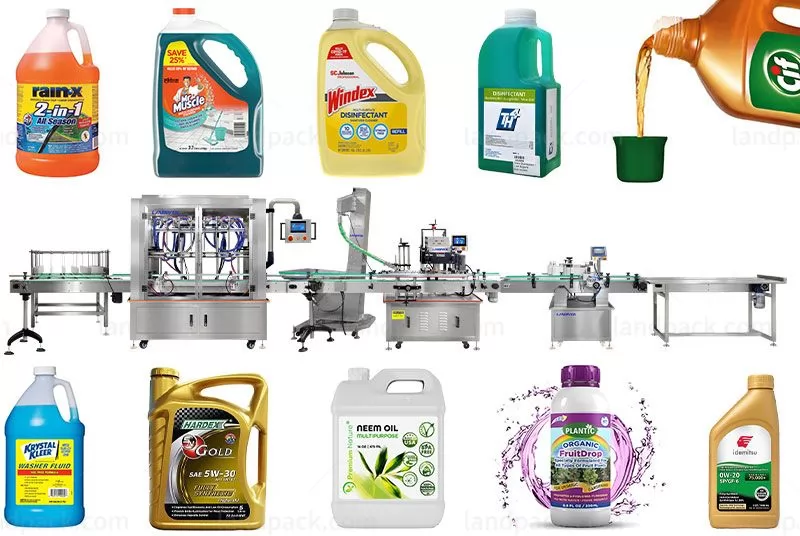

Workflow:

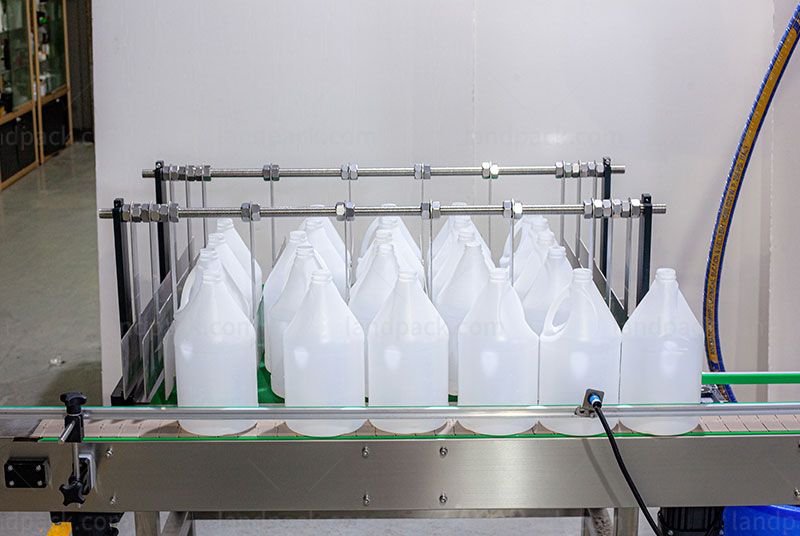

1. Auto-feeding the bottles.

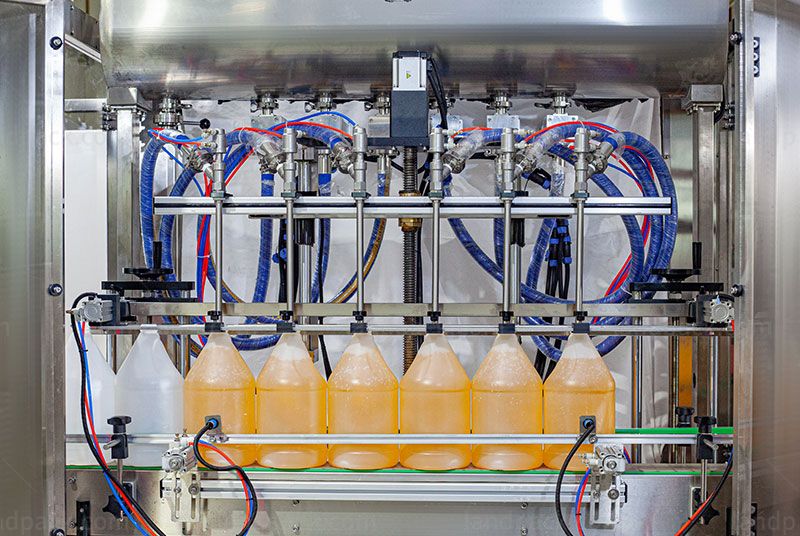

2. Auto-filling the liquids.

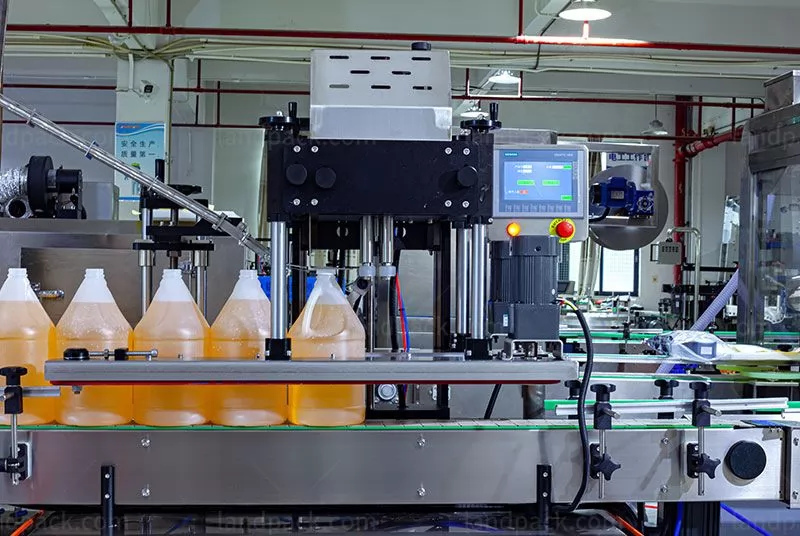

3. Auto-feeding the caps and capping.
4. Auto coding and labeling.
5. Auto output and collecting the bottles.
| Model | LD-ALF01 |
| Filling Range | 50-1000ml(Customizable) |
| Filling Speed | 15-50 bottles/min |
| Measurement accuracy | ±1% |
| Power | 2 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 600kg |
| Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
