Application: Mainly used for tube and bottle packaging of liquids and pastes. For example, reagents, plastic test tubes, eye drops, e-liquids, essential oils and other small bottled products. Combination with other devices can achieve production line operation.
Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

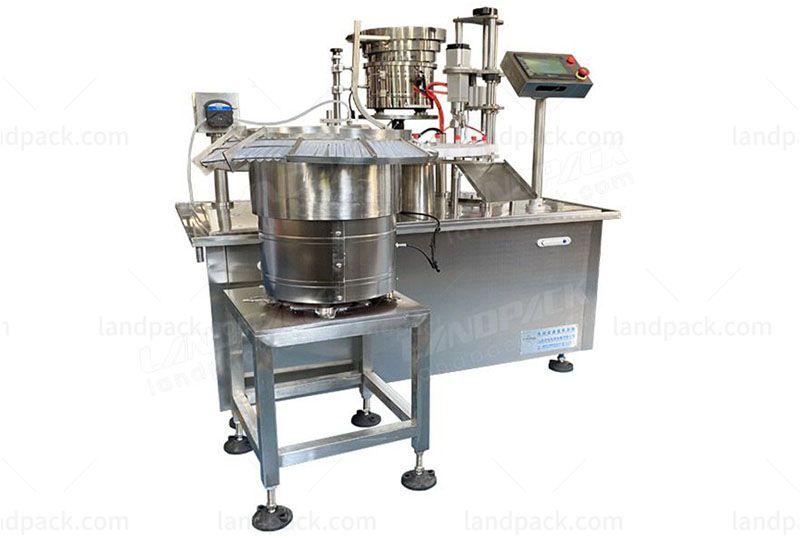

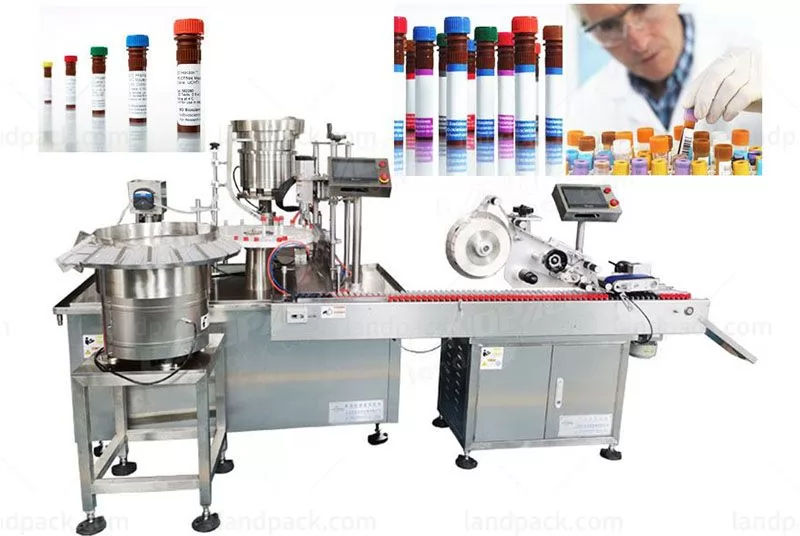

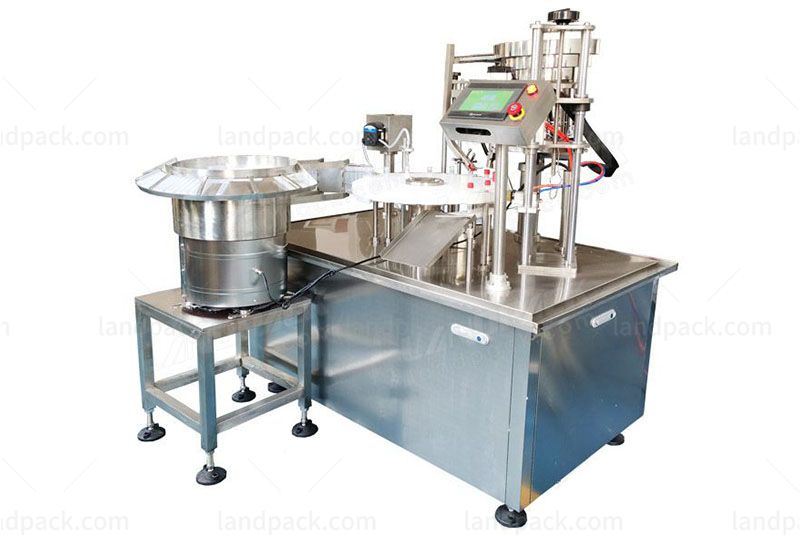

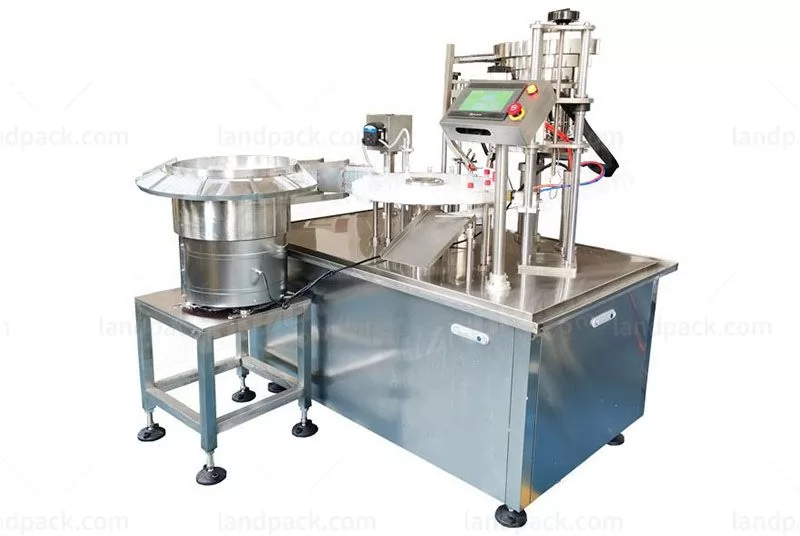

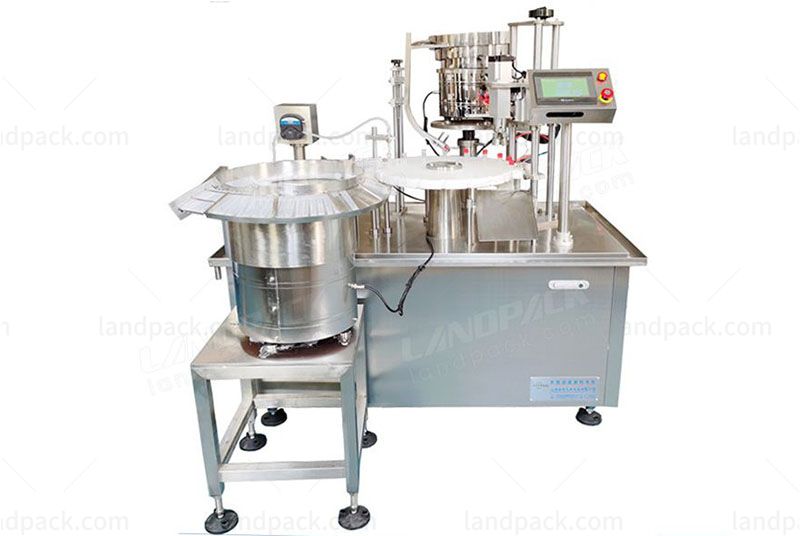

1.This Automatic Reagent Filling Machine Reagent Tube Filling Capping Machine has adopted advanced technology. It has compact structure and is convenient to replace.
2. This Automatic Reagent Filling Machine Reagent Tube Filling Capping Machine is the main liquid filling production line, which complies with 'GMP' requirements. This machine adopts high-quality 304 stainless steel materials;
3. Advanced design and compact structure are features of the filling machine. Replacement is very convenient. Combination with other devices can achieve production line operation.

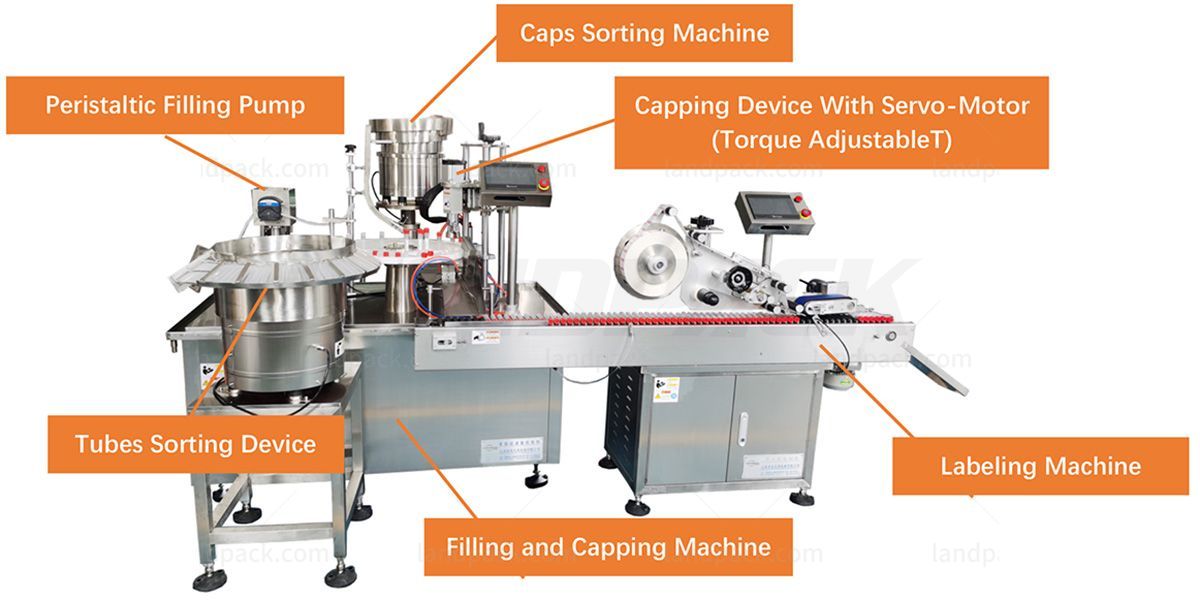

4.The operation of the machine is equipped with safety guarantees, fault alarms and other settings. The automatic operation of functions from pipe entry, filling, cap sorting, capping, capping, labeling, and collection, does not require manual intervention.
| Suitable for tube size | according to the sample provided by the customer, it can be customized |
| How to organize the pipes | manually place the pipes on the pipe-organizing machine |
| Out of the tube | according to the shape of the tube, actual customization |
| Filling method | 2 heads peristaltic pump filling |
| Filling capacity | 3ml~8ml |
| Output | about 2400 bottles/hour |
| The way to arrange the cap | automatic lid arrangement with vibration plate (double vibration plate) |
| Cap removal/cap removal method: | automatic cap removal, servo torque capping (double-head servo, torque capping) |
| Labeling | automatic positioning and labeling |
| Pipe-out method | the cylinder grabs the pipe and moves the pipe, and the pipe is discharged through the slope. |
| Program control | touch screen |
| Air pressure | 0.6-0.8MPa |
| Power | about 3KW/AC220V 50/60HZ |
After receiving your inquiry,We will send you the quotation as soon as possible.
