Automatic Pickled Quail Egg Buckets Filling Cap Pressing Labeling Machine Line

  • Application
  • Description
  • Parameter
  • Video

Application:

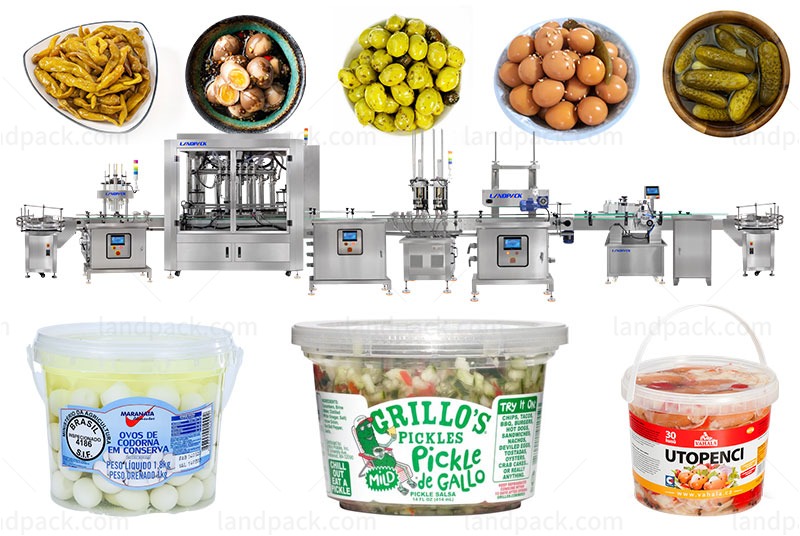

This fully automatic bucket filling line is designed for quail eggs but also suits pickled vegetables, pineapple slices, chopped olives, sweet peas, and other pickled foods, ensuring efficient and precise packaging.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:filling production line

1. Dual Compatibility – One production line supports both bucket and can filling.

2. High Protection Level – Customized IP65-rated independent double-layer electric boxes prevent water and dust intrusion.

3. Fully Automated Process – Includes empty bucket feeding, filling, capping, pressing, labeling, and product collection.

Bottle Arranging Machine
Speedaround 60bottles/min
Bottle DiameterCustom-made 80-210mm
Bottle HeightCustom-made 100-330mm
Powder220V/50Hz

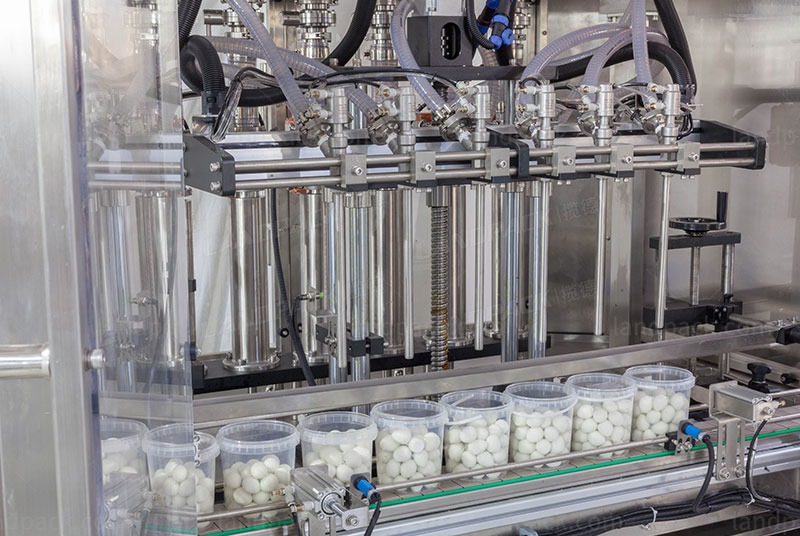

Bucket Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)
Production Speed<15-25 bottles/min<20-35 bottles/min<30-40 bottles/min<40-50 bottles/min
Measurement Accuracy±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz
Air consumption0.6-8Mpa
Weight600kg650kg800kg800kg
DimensionL4000*W1320*H2090(mm)

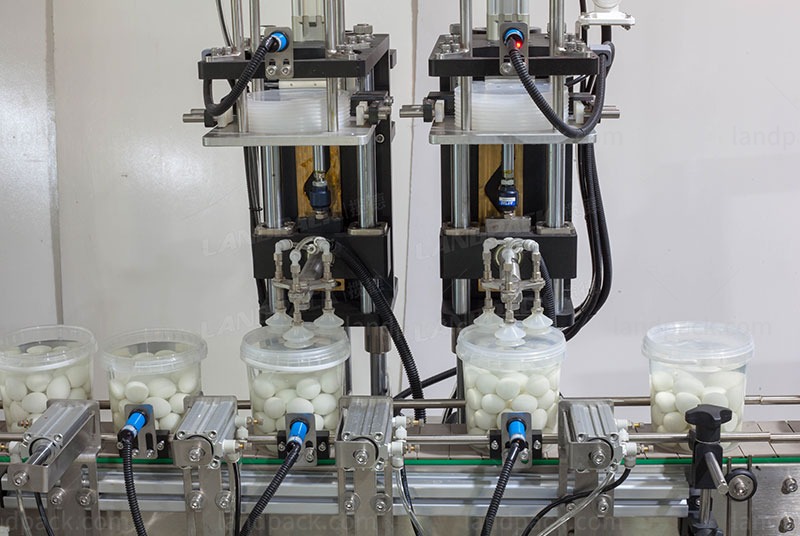

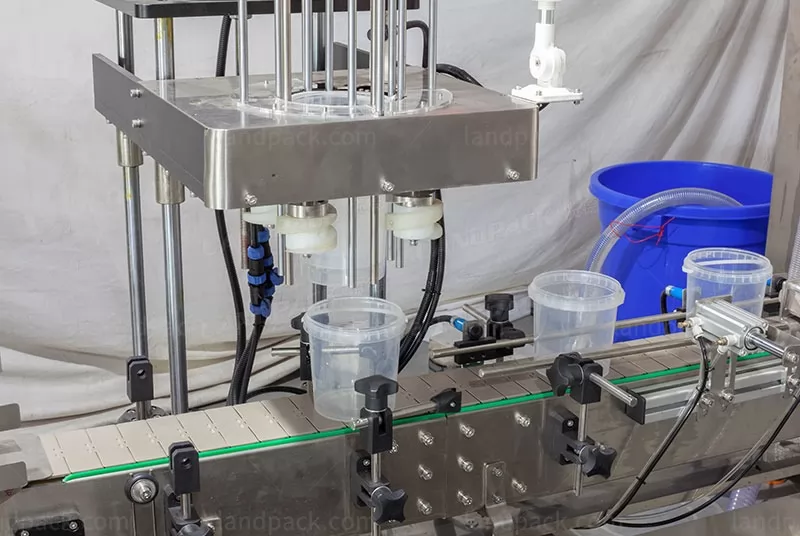

Automatic Capping Machine
Speed30-50 Cans/minute (can be customized)
Seal Can Diameterφ35-φ100mm (can be customized)
Bottle's Height60-200mm (can be customized)
Cap's Height5-15mm
Productivity0.15 cubic/minute
Power440W
Outline dimension2000*1000*1800mm (L*W*H)
Automatic Labeling Machine
ModelLFT-YP-00
Labeling rangeL<300mm, H<120mm
Labeling speed20-60 bottles/min
Labeling accuracy±1.5mm
Size of the main frameL2000*W860*H1600(mm)
Working voltage220V
Electricity power2KW
Weight250KG
Packing Dimension2100(L)*1150(W)*1450(H)mm

After receiving your inquiry,We will send you the quotation as soon as possible.
