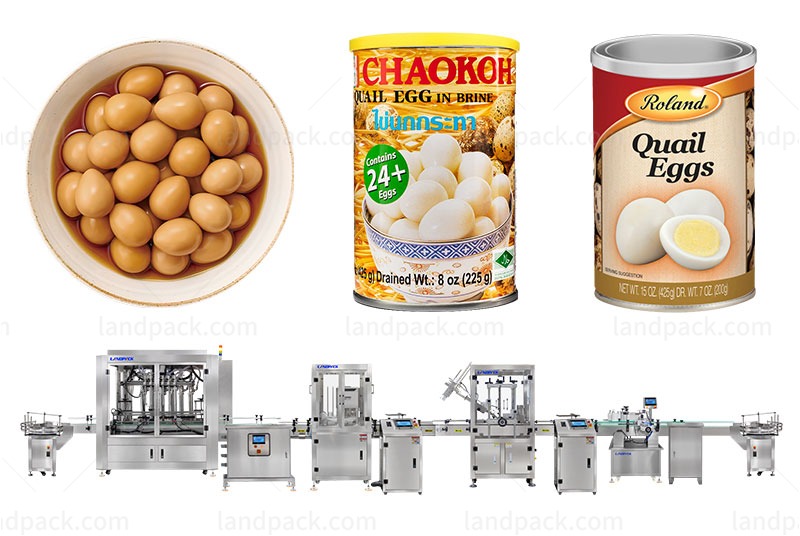

Automatic Quail Egg Bottles Cans Filling Seaming Labeling Machine Line

  • Application
  • Description
  • Parameter
  • Video

Application:
This fully automatic cans filling line is primarily used for filling and packaging quail eggs, but it is also suitable for a variety of other food products such as pickled vegetables, pineapple slices, chopped olives, sweet peas, and other pickled products.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Quail Egg Bottles Cans Filling Seaming Labeling Machine Line

1. Dual Filling Line: Capable of simultaneously filling both buckets and cans, offering flexibility and efficiency for different packaging needs.

2. IP65-Rated Electrical Boxes: Customized double-layer electric boxes provide protection against dust and water, ensuring reliable operation in harsh environments.

3. Complete Bottle Line: Includes empty bottle feeding, filling, aluminum seaming, lid pressing, labeling, and collection, creating a seamless, fully automated process for bottle packaging.

Bottle Arranging Machine
Speedaround 60bottles/min
Bottle DiameterCustom-made 80-210mm
Bottle HeightCustom-made 100-330mm
Powder220V/50Hz

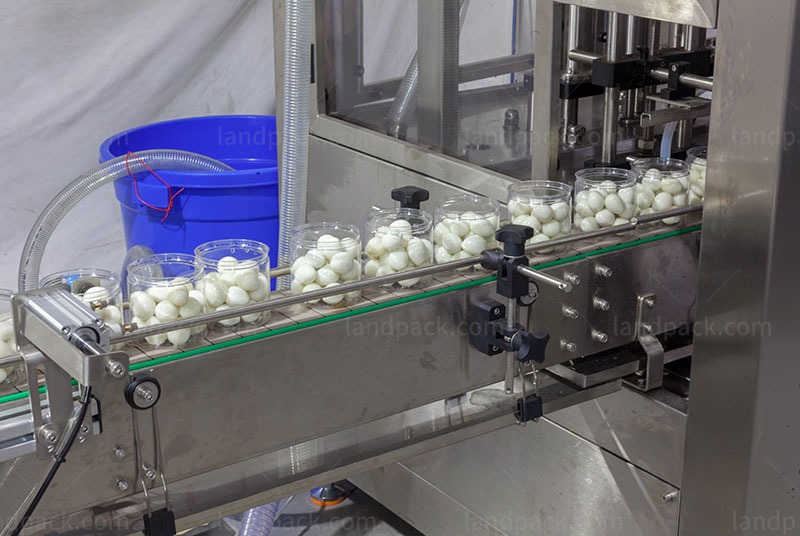

Bottle Liquid filling machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)
Production Speed<15-25 bottles/min<20-35 bottles/min<30-40 bottles/min<40-50 bottles/min
Measurement Accuracy±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz
Air consumption0.6-8Mpa
Weight600kg650kg800kg800kg
DimensionL4000*W1320*H2090(mm)

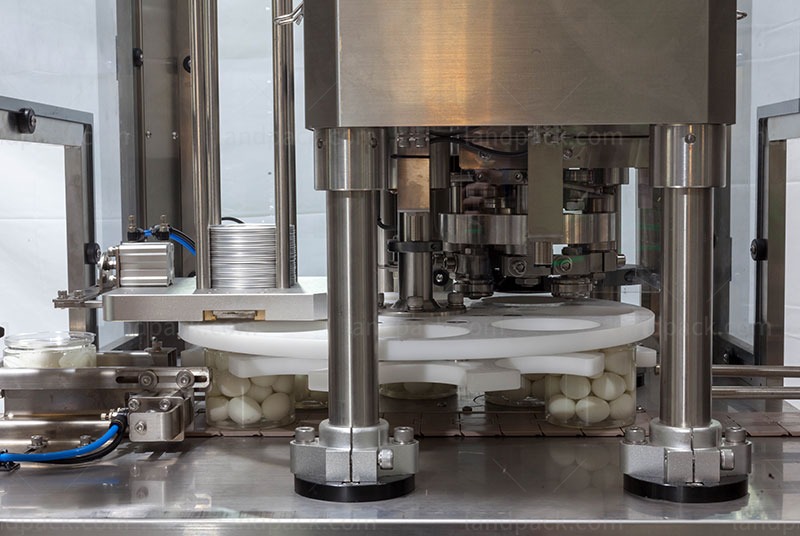

Automatic Can Sealing Machine
Voltage220V/50Hz(customized)
Power2KW
Air pressure0.3-0.5mpa
Speed20-53 BPM (can be customized)
Bottle diameter35-130mm
Bottle high25-220mm
Outline dimension1850*840*1650mm(L*W*H)
Net weight330KG
Automatic Capping Machine
Speed30-50 Cans/minute (can be customized)
Seal Can Diameterφ35-φ100mm (can be customized)
Bottle's Height60-200mm (can be customized)
Cap's Height5-15mm
Productivity0.15 cubic/minute
Power440W
Outline dimension2000*1000*1800mm (L*W*H)

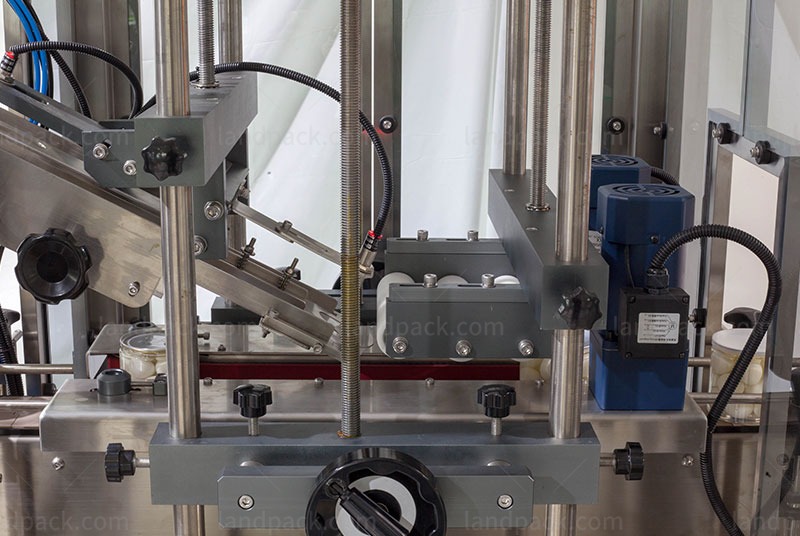

Automatic Labeling Machine
ModelLFT-YP-00
Labeling rangeL<300mm, H<120mm
Labeling speed20-60 bottles/min
Labeling accuracy±1.5mm
Size of the main frameL2000*W860*H1600(mm)
Working voltage220V
Electricity power2KW
Weight250KG
Packing Dimension2100(L)*1150(W)*1450(H)mm

After receiving your inquiry,We will send you the quotation as soon as possible.
