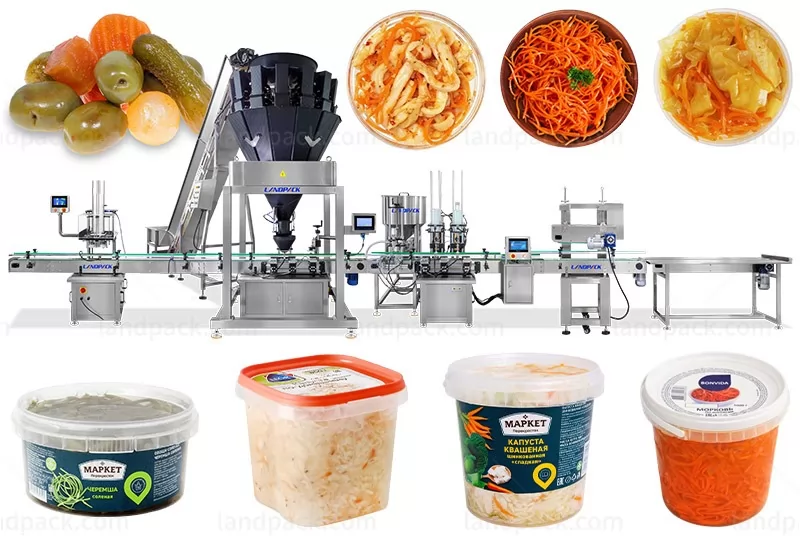

Application:
This versatile filling line efficiently handles both solid and liquid products, making it ideal for various food industry applications, including pickled vegetables, condiments, sauces, fermented or marinated products, ready-to-eat salads, and specialty foods.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Smart Control System: Multiple level touch screen and PLC control, which are easy to adjust and operate.
2. Avoid Manual Workload: The bowl and lid feeders eliminate manual work.
3. Height of Filling Nozzle Adjustable: The filling machine can fit cups of various sizes to meet different filling capacity with high precision.
4. Enclosed Bowl feeder: The design of the feeder has safety and hygienic feeding prevention of contamination.
5. Food-Specific Spiral Weighing System: For marinated products, the concave Teflon-coated plate prevents material sticking and clogging.
6. Sauce Separation & Collection Pump: Used in whole including the chain-plate feeding belt to collect excess sauce, for secondary filling and material reuse.

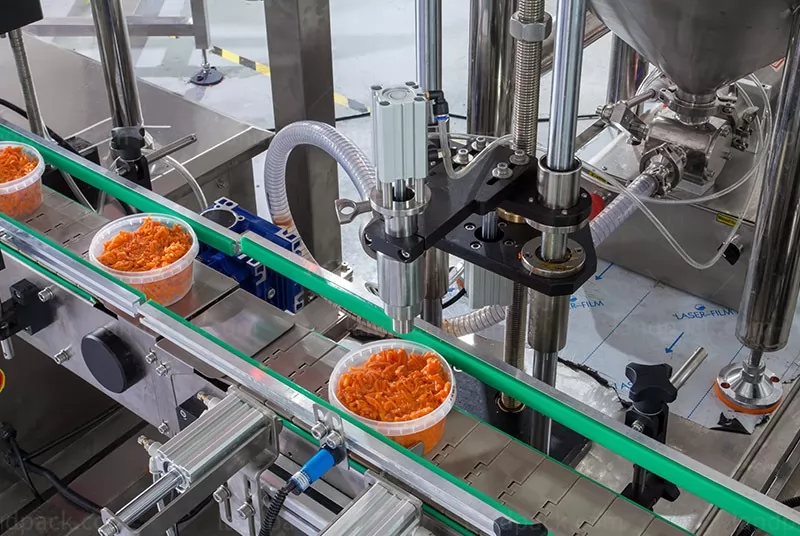

Workflow:
1. Pickle feeding belt

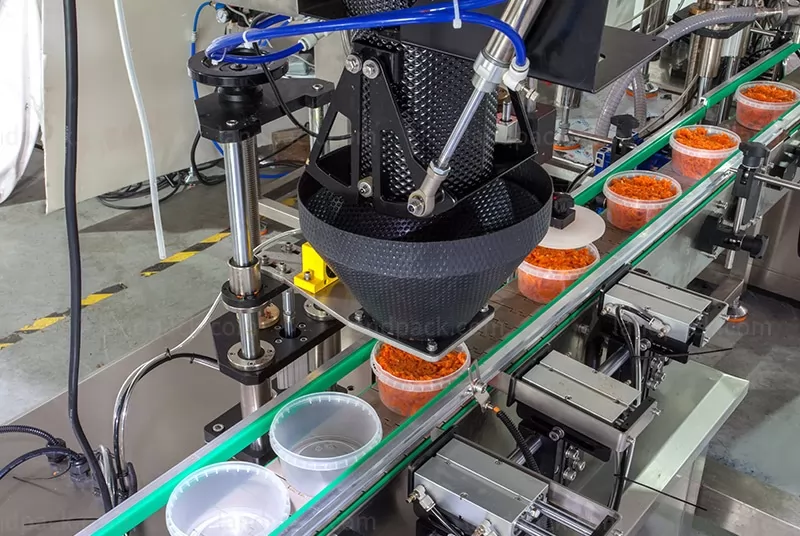

2. Pickle Auger Screw Weigher

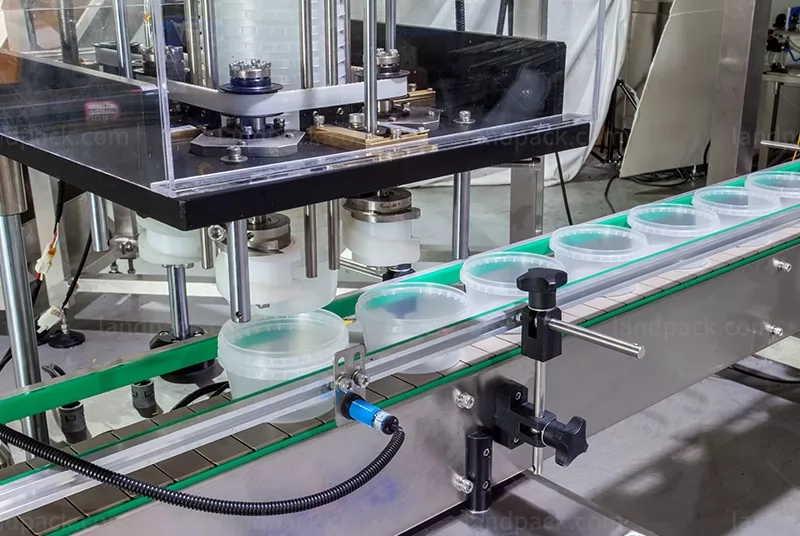

3. Bowl feeder
4. Filling hopper
5. Pusher panel device (air exhaust)
6. Sauce filling pump
7. Vacuum sucker feeding cap
8. Chain plate belt type capping machine
9. Collection table

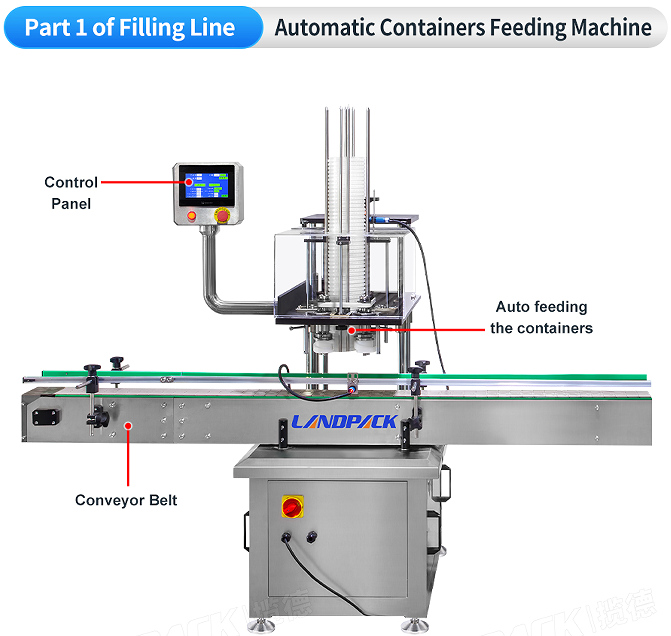

| Part 1 of Filling Line - Automatic Containers Feeding Machine | ||||||
| 1 |   | Name | Automatic screw feed bucket machine | |||
| Working pressure（MPa） | 0.6～0.8MPa | |||||
| Working power supply（V） | monophase 220V 50Hz | |||||
| Gross power(KW) | 400W | |||||
| weight（kg） | about 200KG | |||||
| Overall dimension(mm) | About 900*638*1693 | |||||
| speed(rpm) | <60rpm | |||||

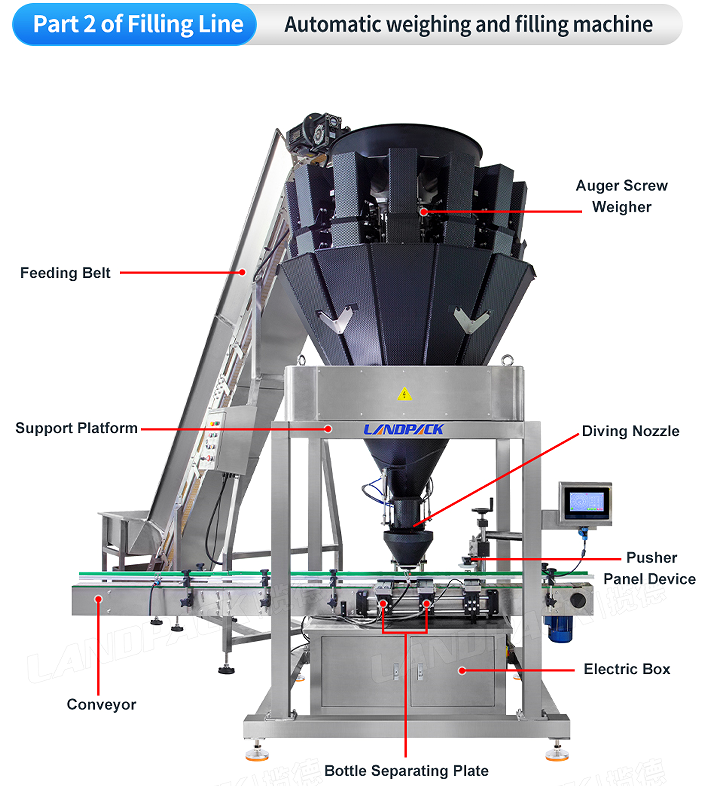

| Part 2 of Filling Line - 14 head combined screw weighing + linear filling machine | ||||||
| 2 |  | Model | LD-10 | LD-14 | ||
| Metering head | 10 | 14 | ||||
| Single weighing range | 10-1000g | 10-2000g | ||||
| Weighing accuracy | ±0.3-1.5g | ±0.3-1.5g | ||||
| Weighing speed | 70PCS/min | 120PCS/min | ||||
| Hopper capacity | 1300ml | 1300ml | ||||
| Hopper form | Double row no memory bucket | Double row no memory bucket | ||||
| Product default mode | 99 kinds | 99 kinds | ||||
| Control element | Fluorescent display tube (256*64 point 5.7 inch) | 10.4 inch LCD screen | ||||

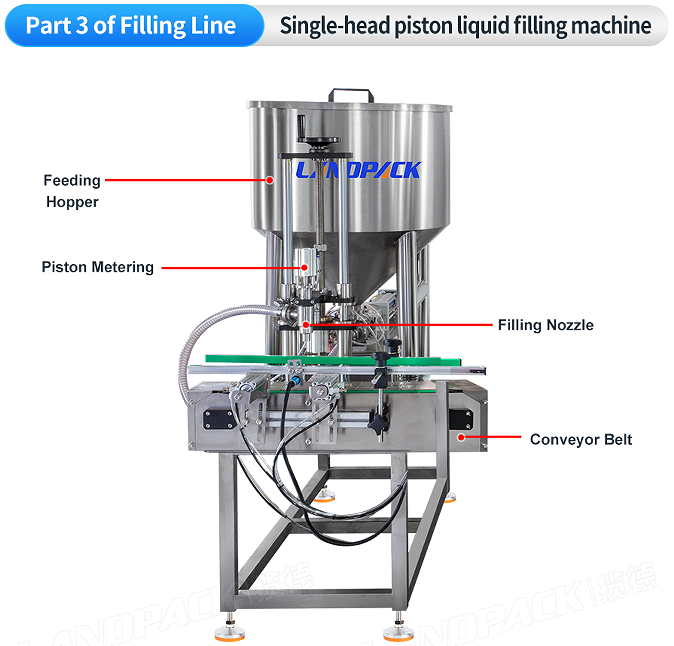

| Part 3 of Filling Line - Single-head piston metering liquid filling machine | ||||||
| 3 |  | Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | ||
| Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min | ||
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% | ||
| Power | 2KW | 2.5KW | 3.5KW | 5KW | ||
| Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | ||
| Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | ||
| Weight | 600kg | 650kg | 800kg | 800kg | ||
| Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | ||

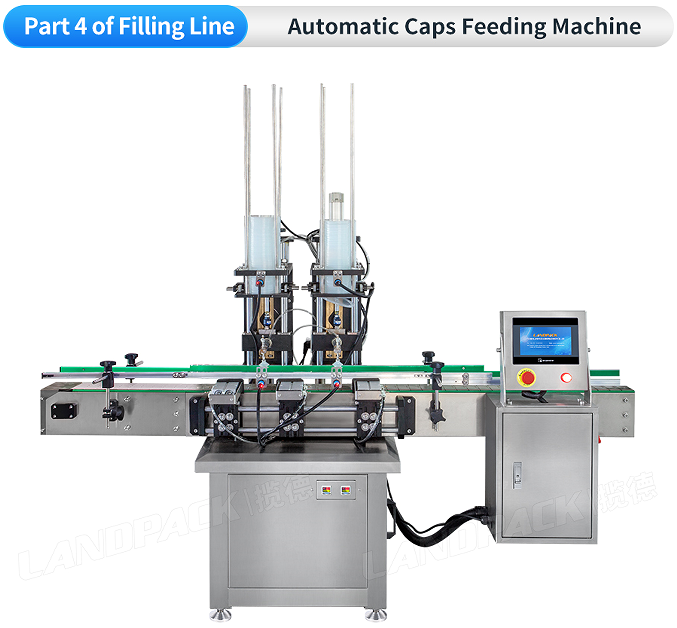

| Part 4 of Filling Line - Double station automatic cap suction machine machine | ||||||
 | Model | LD-VTYG01 | ||||
| voltage | 110V/220V | |||||
| Capacity | 15-18 bottles/min | |||||
| Applicable Container | Length:40-110mm | |||||
| Width:40-110mm | ||||||
| Height:40-110mm | ||||||
| Applicable Lid | Customizable | |||||
| Packing Size | About 2080*940*1730mm | |||||
| Gross Weight | About 261kg | |||||

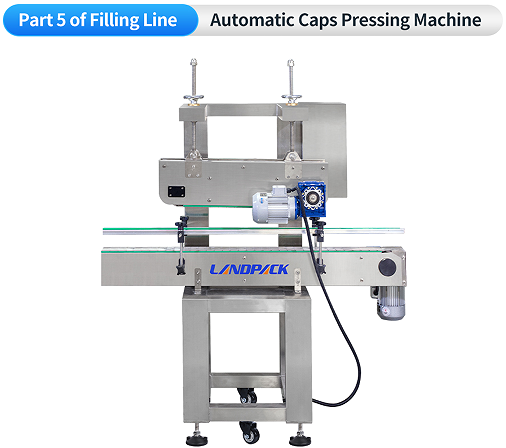

| Part 5 of Filling Line - Automatic Caps Pressing Machine | ||||||
| 5 |  | Cover method | Elevator cap sorting | |||
| Capping form | Chain piece type capping | |||||
| Application bottle | According to customer's product | |||||
| Capping speed | 30-50 bottles/min | |||||
| Capping voltage | 1ph AC 220V 50/60Hz | |||||
| Air pressure | 0.6-0.8MPa | |||||
| Dimension | 1300(L)*850(W)*1660(H)mm | |||||
| Packing size | 1400(L)*950(W)*1760(H)mm | |||||
| Machine weight | About 400KG | |||||
