Application:
This bottle filling line can be customized to fill various liquid products, such as yogurt, paste, butter, mayonnaise, ketchup, laundry detergent, shower gel, shampoo, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The linear machine is designed to handle all kinds of bottles. Simply adjust the machine to accommodate different bottle sizes.
2. The entire machine is controlled by a touch screen and a PLC (Programmable Logic Controller) system.
3. There are two types of washing methods, water washing and air washing. It is suitable for glass bottles and plastic bottles.
Workflow:
1. Flip-type washing machine

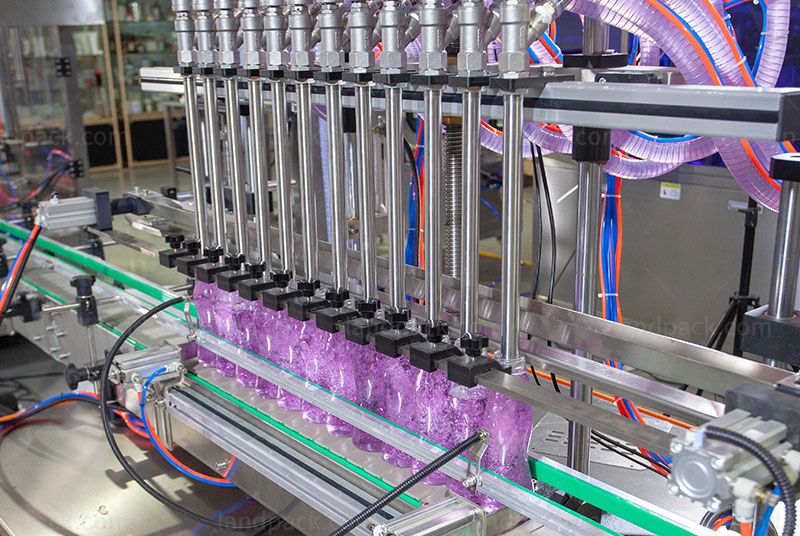

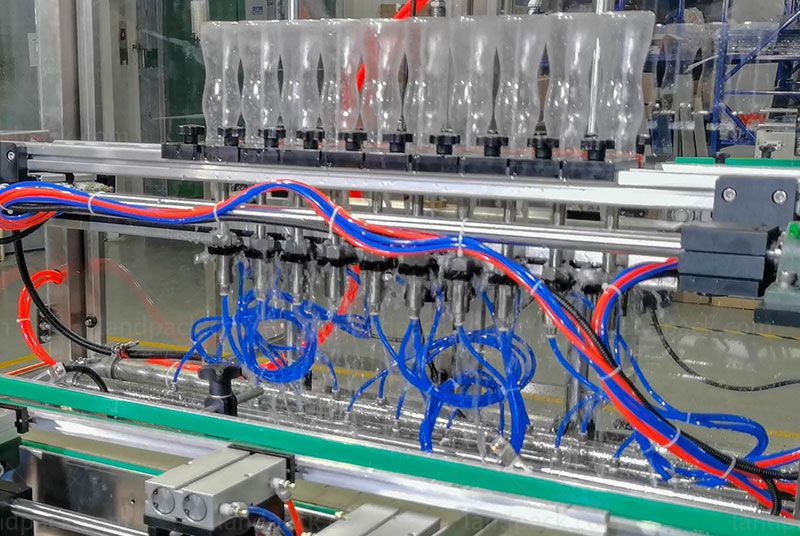

2. Gravity filling machine
3. High-speed screw capping machine
4. Automatic labeling sleeve shrinking machine
5. Laser printing machine
6. Collecting table
| Model | LD-ALF01 |
| Filling Range | 50-1000ml(Customizable) |
| Filling Speed | 15-50 bottles/min |
| Measurement accuracy | ±1% |
| Power | 2 KW |
| Working power supply | 220V, 50Hz |
| Working pressure | 0.6-0.8MPa |
| Weight | 600kg |
| Size | L4000*W1320*H2090(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
